Left Front Impact Sensor Connector End View
Left Front Impact Sensor Connector End View

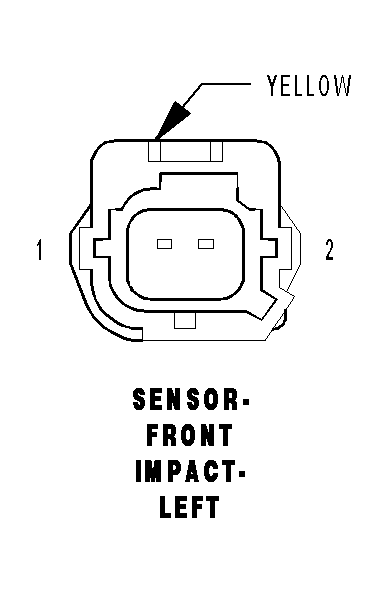

SENSOR-FRONT IMPACT-LEFT - YELLOW 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R81 20LB/WT
LEFT FRONT IMPACT SENSOR GROUND
2
R79 20LB/VT
LEFT FRONT IMPACT SENSOR SIGNAL
