Integrated Power Module Connector End View

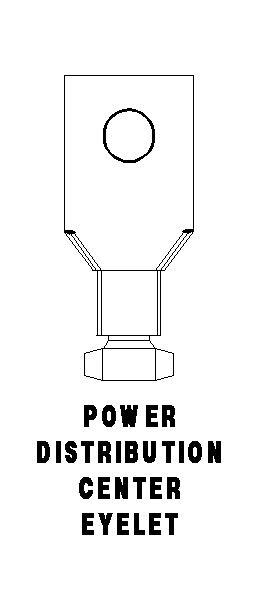

MODULE-INTEGRATED POWER EYELET - 1 WAY

GCHB580185Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 A1 08RD B(+)
