Integrated Power Module Connector End View (C1)

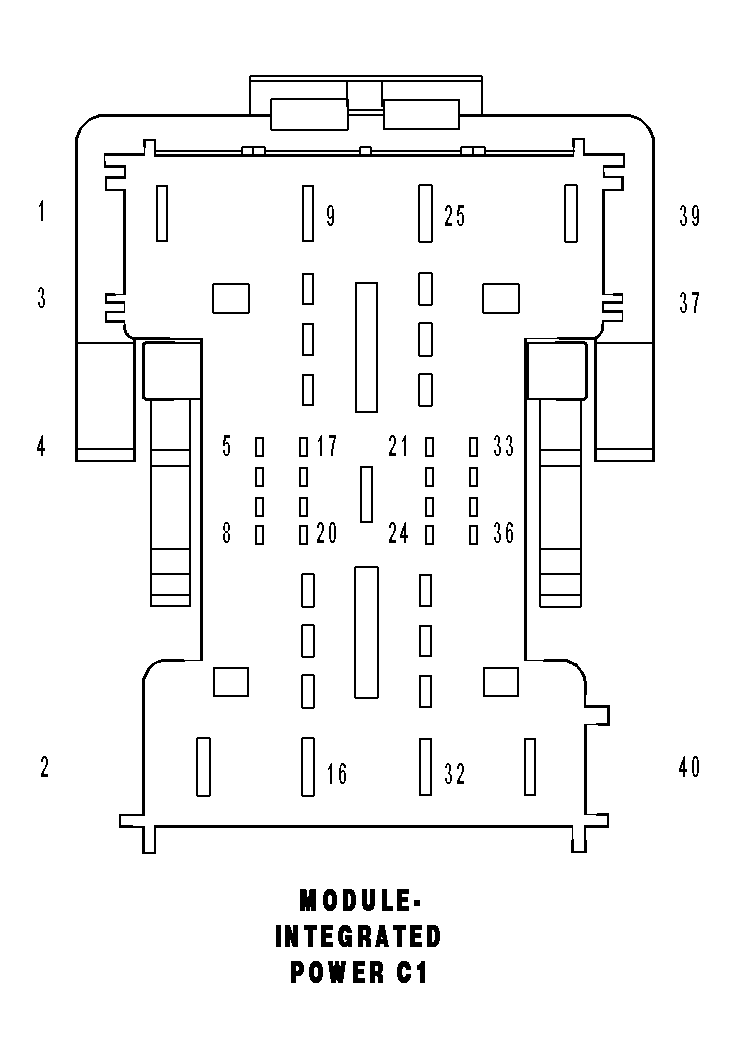

MODULE-INTEGRATED POWER C1 - 40 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A918 14OR/LG | FUSED B(+) |
| 2 | - | - |
| 3 | - | - |
| 4 | - | - |
| 5 | L78 20WT/OR | FUSED PARK LAMP RELAY OUTPUT |
| 6 | L78 20WT/OR | FUSED PARK LAMP RELAY OUTPUT |
| 7 | L77 20PK/RD | FUSED LEFT INBOARD TAIL LAMP |
| 8 | L77 20PK/RD | FUSED LEFT INBOARD TAIL LAMP |
| 9 | N23 12DB/DG | HIGH SPEED RADIATOR FAN RELAY OUTPUT |
| 10 | W7 20BR/GY | FRONT WIPER PARK SWITCH SENSE |
| 11 | - | - |
| 12 | - | - |
| 13 | L76 20PK/RD | FUSED PARK LAMP RELAY OUTPUT |
| 14 | - | - |
| 15 | - | - |
| 16 | L674 18LG | RIGHT TRAILER TOW BRAKE LAMP RELAY OUTPUT |
| 17 | L78 20WT/OR | FUSED PARK LAMP RELAY OUTPUT |
| 18 | G180 20VT/YL | FCM SENSOR RETURN |
| 19 | L77 20PK/RD | FUSED LEFT INBOARD TAIL LAMP |
| 20 | - | - |
| 21 | - | - |
| 22 | G180 20VT/YL | FCM SENSOR RETURN |
| 23 | L62 18VT/GY | RIGHT TURN SIGNAL |
| 24 | K617 20BR | RUN/START RELAY CONTROL |
| 25 | N202 12DB/OR | LOW SPEED RADIATOR FAN RELAY OUTPUT |
| 26 | - | - |
| 27 | - | - |
| 28 | Z909 18BK | GROUND |
| 29 | W10 18BR | FRONT WASHER PUMP MOTOR CONTROL |
| 30 | C115 20DB | DEFOGGER RELAY CONTROL |
| 31 | W20 18BR/YL | REAR WASHER PUMP MOTOR CONTROL |
| 32 | A955 16RD | ASD RELAY OUTPUT |
| 33 | N1 18DB/OR | FUEL PUMP RELAY OUTPUT |
| 34 | N1 18DB/OR | FUEL PUMP RELAY OUTPUT |
| 35 | C229 20DB | FRONT BLOWER CONTROL |
| 36 | F1 20PK/DG | FUSED IGNITION SWITCH OUTPUT (OFF-RUN-START) |
| 37 | - | - |
| 38 | - | - |
| 39 | Z967 18BK | GROUND |
| 40 | A920 14OR/RD | FUSED B(+) |
