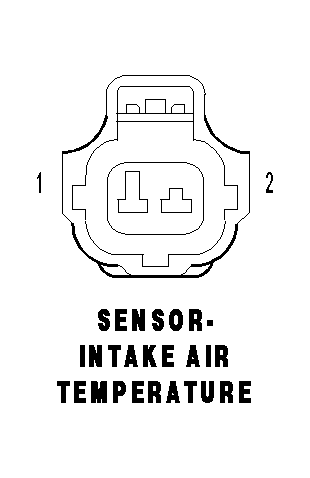

Intake Air Temperature Sensor Connector End View
SENSOR-INTAKE AIR TEMPERATURE - 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K21 20BR/WT (3.7L/4.7L) |
IAT SIGNAL |
| 1 |
K900 18DB/DG (5.7L) |
SENSOR GROUND |
| 2 |
K900 20DB/DG (3.7L/4.7L) |
SENSOR GROUND |
| 2 |
K21 18DB/LG (5.7L) |
IAT SIGNAL |
