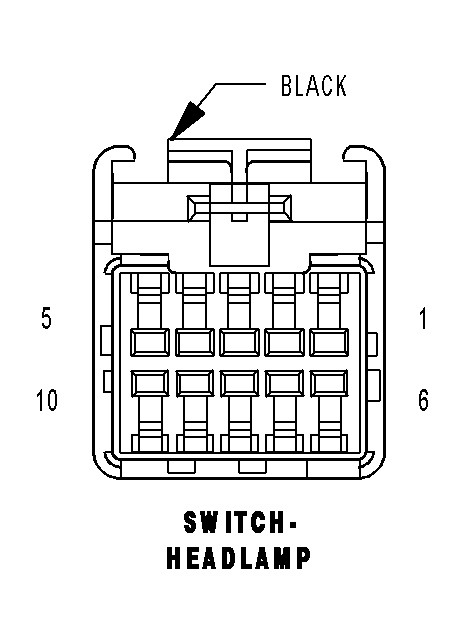

Headlamp Switch Connector End View
SWITCH-HEADLAMP - BLACK 10 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L307 20PK/RD |
HEADLAMP SWITCH MUX |
| 2 |
E2 20OR/BR |
PANEL LAMPS DRIVER |
| 3 |
L900 20WT/YL |
HEADLAMP SWITCH MUX RETURN |
| 4 |
E19 20OR/BR |
ILT-DIMMING HEADLAMP SWITCH |
| 5 |
Z942 20BK |
GROUND |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
| 9 |
- |
- |
| 10 |
- |
- |
