Front Reading Lamp Connector End View

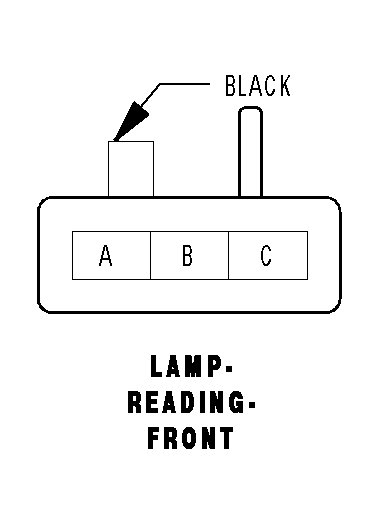

LAMP-READING-FRONT - BLACK 3 WAY

GCHB580489Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
A M28 20YL/TN GLOVE BOX LAMP DRIVER
B Z955 20BK GROUND
C M22 20YL/OR COURTESY LAMPS DRIVER
