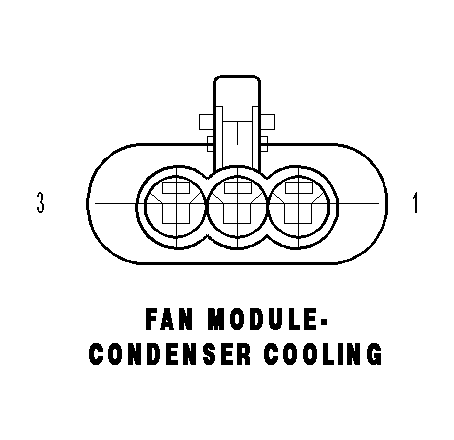

Fan Condenser Cooling Module Connector End View
FAN MODULE-CONDENSER COOLING - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
N23 12DB/DG |
HIGH SPEED RADIATOR FAN RELAY OUTPUT |
| 2 |
N24 12DG/DB |
LOW SPEED RADIATOR FAN RELAY OUTPUT |
| 3 |
Z823 12BK/DG |
GROUND |
