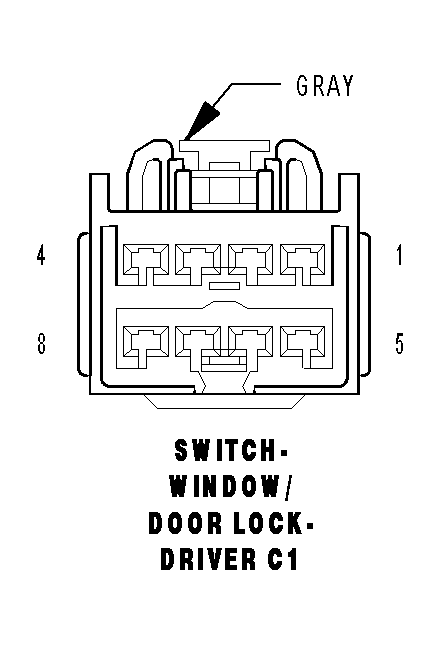

Driver Window Switch/Door Lock Switch Connector End View (C1)
SWITCH-WINDOW/DOOR LOCK-DRIVER C1 - GRAY 8 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | F30 14PK/YL | FUSED ACCESSORY DELAY RELAY OUTPUT |
| 3 | Z940 20BK (EXCEPT MEMORY) | GROUND |
| 3 | G775 20OR/VT (MEMORY) | DRIVER DOOR LOCK SWITCH RETURN |
| 4 | Z13 16BK/WT | GROUND |
| 5 | Q15 14OR/LB | POWER WINDOW SWITCH FEED |
| 6 | Q21 14OR/WT | LEFT FRONT WINDOW DRIVER (DOWN) |
| 7 | Q11 14WT/DB | LEFT FRONT WINDOW DRIVER (UP) |
| 8 | G161 20VT/DG | DRIVER DOOR LOCK SWITCH MUX |
