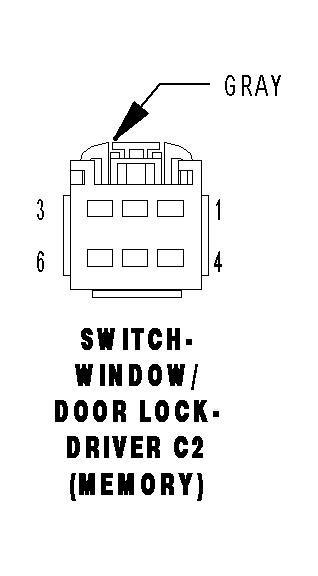

Driver Window Switch/Door Lock Switch (Memory) Connector End View (C2)
SWITCH-WINDOW/DOOR LOCK-DRIVER C2 (MEMORY) - GRAY 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q411 14DB/LG | LEFT REAR WINDOW DRIVER (UP) |
| 2 | Q412 14TN/WT | RIGHT REAR WINDOW DRIVER (UP) |
| 3 | Q612 14DB/OR | RIGHT REAR WINDOW DRIVER (DOWN) |
| 4 | Q611 14DB/PK | LEFT REAR WINDOW DRIVER (DOWN) |
| 5 | Q26 14OR | MASTER WINDOW SWITCH RIGHT FRONT (DOWN) |
| 6 | Q16 14WT/DG | MASTER WINDOW SWITCH RIGHT FRONT (UP) |
