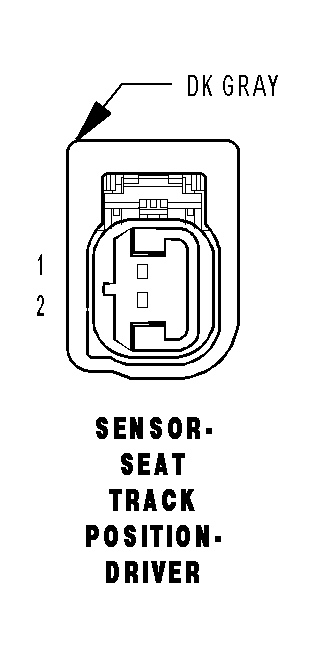

Driver Seat Track Position Sensor Connector End View
SENSOR-SEAT TRACK POSITION-DRIVER - DK GRAY 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R261 20LB/WT |
DRIVER SEAT POSITION SENSOR DATA |
| 2 |
R263 20LB/VT |
DRIVER SEAT POSITION SENSOR VOLTAGE |
