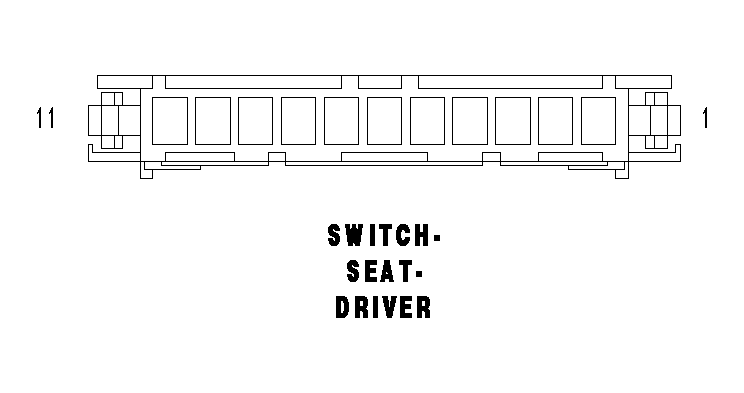

Driver Seat Switch Connector End View
SWITCH-SEAT-DRIVER - 11 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P41 16LG/GY (EXCEPT MEMORY) | DRIVER SEAT RECLINER DOWN DRIVER |
| 1 | P28 20DB/WT (MEMORY) | DRIVER SEAT SWITCH MUX RETURN |
| 2 | - | - |
| 3 | P43 16LG/VT (EXCEPT MEMORY) | DRIVER SEAT RECLINER UP DRIVER |
| 4 | P17 14LG/DG (EXCEPT MEMORY) | DRIVER SEAT HORIZONTAL REARWARD DRIVER |
| 4 | P311 20VT (MEMORY) | DRIVER SEAT FRONT VERTICAL/RECLINER SWITCH MUX |
| 5 | P21 14LG/TN (EXCEPT MEMORY) | DRIVER SEAT FRONT DOWN DRIVER |
| 6 | A940 12RD/GY (EXCEPT MEMORY) | FUSED B(+) |
| 7 | Z971 16BK (EXCEPT MEMORY) | GROUND |
| 8 | P15 14LG/WT (EXCEPT MEMORY) | DRIVER SEAT HORIZONTAL FORWARD DRIVER |
| 9 | P19 14LG/LB (EXCEPT MEMORY) | DRIVER SEAT FRONT UP DRIVER |
| 10 | P13 14LG/OR (EXCEPT MEMORY) | DRIVER SEAT REAR DOWN DRIVER |
| 10 | P29 20LG/WT (MEMORY) | DRIVER SEAT SWITCH MUX SUPPLY |
| 11 | P11 14LG/YL (EXCEPT MEMORY) | DRIVER SEAT REAR UP |
| 11 | P309 20BR (MEMORY) | DRIVER SEAT REAR VERTICAL/HORIZONTAL SWITCH MUX |
