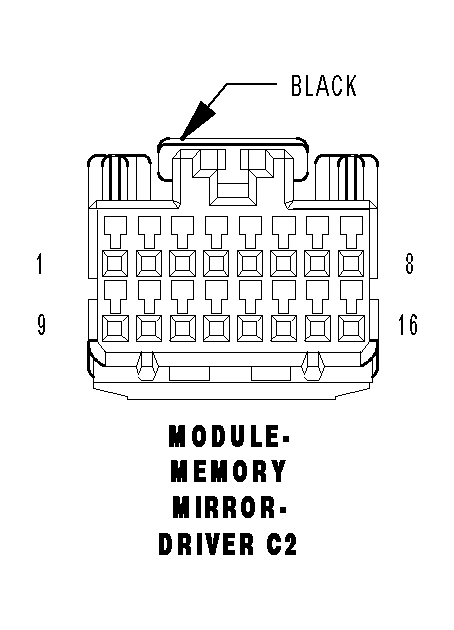

Driver Memory Mirror Module Connector End View (C2)
MODULE-MEMORY MIRROR-DRIVER C2 - GRAY 16 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P550 20DB/WT | MIRROR SWITCH SUPPLY |
| 2 | - | - |
| 3 | - | - |
| 4 | P703 20DB/LG | MIRROR HORIZONTAL LEFT SWITCH SENSE |
| 5 | - | - |
| 6 | P710 20LG | MIRROR COMMON SWITCH SENSE |
| 7 | P705 20LG/OR | MIRROR VERTICAL DOWN SWITCH SENSE |
| 8 | - | - |
| 9 | P950 20DB/RD | MIRROR SWITCH RETURN |
| 10 | G920 20VT/YL | MEMORY SELECT SWITCH RETURN |
| 11 | - | - |
| 12 | - | - |
| 13 | P339 20LG/DB | MEMORY SELECT SWITCH MUX |
| 14 | - | - |
| 15 | P704 20LG/TN | MIRROR HORIZONTAL RIGHT SWITCH SENSE |
| 16 | P706 20LG/GY | MIRROR VERTICAL UP SWITCH SENSE |
