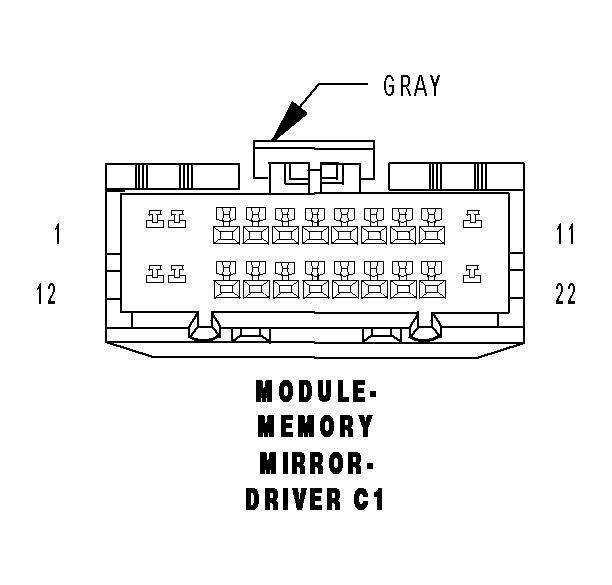

Driver Memory Mirror Module Connector End View (C1)
MODULE-MEMORY MIRROR-DRIVER C1 - GRAY 22 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A215 20RD/LG | FUSED B(+) |
| 2 | C110 20DB/LB | DRIVER MIRROR HEATER DRIVER |
| 3 | P73 20VT/RD | DRIVER MIRROR COMMON DRIVER |
| 4 | P71 20TN/DG | DRIVER MIRROR VERTICAL DRIVER |
| 5 | P75 20TN/LG | DRIVER MIRROR HORIZONTAL DRIVER |
| 6 | P65 20TN/VT | DRIVER MIRROR HORIZONTAL POSITION SIGNAL |
| 7 | P67 20TN/OR | DRIVER MIRROR VERTICAL POSITION SIGNAL |
| 8 | P669 20OR/LG | DRIVER MIRROR SENSOR SUPPLY |
| 9 | G75 20VT | DRIVER DOOR AJAR SWITCH SENSE |
| 10 | Z940 20BK/LB | GROUND |
| 11 | - | - |
| 12 | Z940 20BK/LB | GROUND |
| 13 | C910 20DB/GY | DRIVER MIRROR HEATER GROUND |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | P69 20GY/DG | DRIVER MIRROR SENSOR GROUND |
| 18 | D54 20WT | CAN B BUS (-) |
| 19 | D55 20WT/OR | CAN B BUS (+) |
| 20 | G161 20VT/DG | DRIVER DOOR LOCK SWITCH MUX |
| 21 | G775 20OR/VT | DRIVER DOOR LOCK SWITCH RETURN |
| 22 | - | - |
