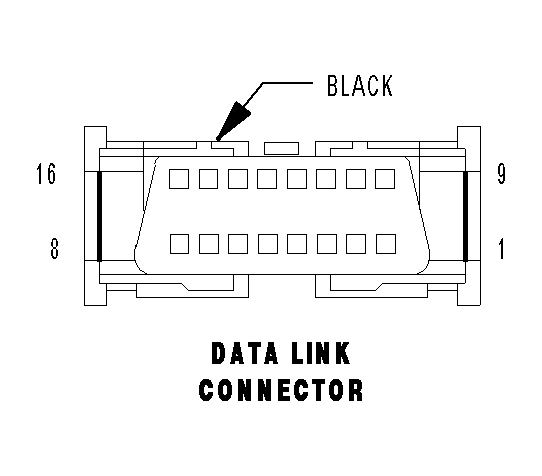

Data Link Connector, Connector End View
DATA LINK CONNECTOR - BLACK 16 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | - | - |
| 3 | - | - |
| 4 | Z11 18BK/LG | GROUND |
| 5 | Z111 18BK/WT | GROUND |
| 6 | D52 20WT/PK | CAN C DIAGNOSTIC (+) |
| 7 | D21 20WT/GY | SCI TRANSMIT (PCM) |
| 8 | - | - |
| 9 | D16 20WT/PK | SCI RECEIVE (TCM) |
| 10 | - | - |
| 11 | - | - |
| 12 | D20 20WT/BR | SCI RECEIVE (PCM) |
| 13 | - | - |
| 14 | D51 20PK/RD | CAN C DIAGNOSTIC (-) |
| 15 | D15 20BR/WT | SCI TRANSMIT (TCM) |
| 16 | A926 18RD | FUSED B(+) |
