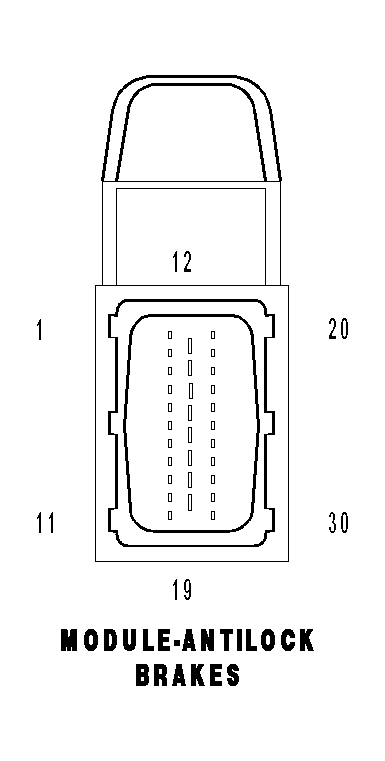

Antilock Brakes Module Connector End View
MODULE-ANTILOCK BRAKES - 30 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | B1 20DG/DB (TRACTION CONTROL) | RIGHT REAR WHEEL SPEED SENSOR SIGNAL |
| 2 | B2 20DG/LB (TRACTION CONTROL) | BRAKE FLUID LEVEL SWITCH SENSE |
| 3 | B6 20DG/WT | RIGHT FRONT WHEEL SPEED SENSOR (-) |
| 4 | B7 20DG/VT | RIGHT FRONT WHEEL SPEED SENSOR (+) |
| 5 | B23 20DG/YL (4WD) | G-SENSOR SIGNAL |
| 6 | B29 20DG/WT | BRAKE SWITCH NO. 1 SIGNAL |
| 7 | - | - |
| 8 | F500 20DG/PK | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | Z107 12BK/DG | GROUND |
| 13 | A107 12TN/RD | FUSED B(+) |
| 14 | A111 18DG/RD | FUSED B(+) |
| 15 | Z923 18BK | GROUND |
| 16 | - | - |
| 17 | - | - |
| 18 | D65 20YL/RD (2WD) | CAN C BUS (+) |
| 18 | D65 20VT/RD (4WD) | CAN C BUS (+) |
| 19 | B924 20DG/LB (4WD) | G-SENSOR RETURN |
| 20 | B8 20DG/TN | LEFT FRONT WHEEL SPEED SENSOR (+) |
| 21 | B9 20DG/LG | LEFT FRONT WHEEL SPEED SENSOR (-) |
| 22 | B3 20DG/YL (EXCEPT TRACTION CONTROL) | REAR WHEEL SPEED SENSOR (-) |
| 22 | B3 20DG/YL (TRACTION CONTROL) | LEFT REAR WHEEL SPEED SENSOR (-) |
| 23 | B4 20LG/GY (EXCEPT TRACTION CONTROL) | REAR WHEEL SPEED SENSOR (+) |
| 23 | B4 20LG/GY (TRACTION CONTROL) | LEFT REAR WHEEL SPEED SENSOR (+) |
| 24 | - | - |
| 25 | - | - |
| 26 | B24 20DG/OR (4WD) | G-SENSOR SUPPLY |
| 27 | B20 20DG/OR | BRAKE FLUID LEVEL SWITCH SENSE |
| 28 | D64 20WT/LB | CAN C BUS (-) |
| 29 | - | - |
| 30 | - | - |
