Ambient Air Temperature Sensor Connector End View

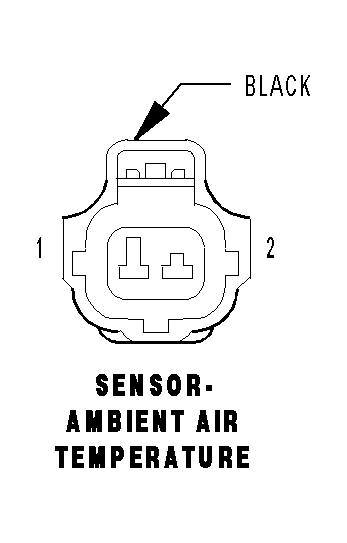

Ambient Air Temperature Sensor Connector End View
SENSOR-AMBIENT AIR TEMPERATURE - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
G31 20VT/OR
AAT SIGNAL
2
G931 20VT/BR
SENSOR GROUND
Courtesy of DAIMLERCHRYSLER CORP.
