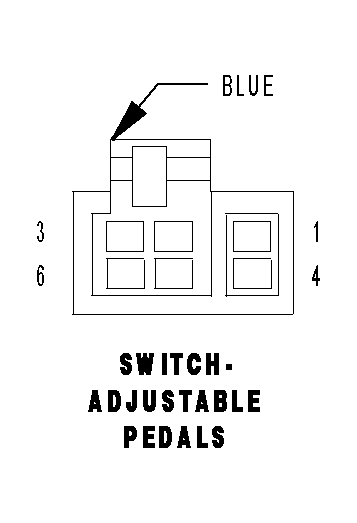

Adjustable Pedals Switch Connector End View
SWITCH-ADJUSTABLE PEDALS - BLUE 6 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P205 18LG/DB (EXCEPT MEMORY) | ADJUSTABLE PEDALS MOTOR FORWARD |
| 1 | Q100 20OR/WT (MEMORY) | ADJUSTABLE PEDALS SWITCH REARWARD |
| 2 | A85 18RD/LB (EXCEPT MEMORY) | ADJUSTABLE PEDALS RELAY OUTPUT |
| 2 | Z146 20BK/LB (MEMORY) | GROUND |
| 3 | - | - |
| 4 | Z146 20BK/LB (EXCEPT MEMORY) | GROUND |
| 5 | - | - |
| 6 | P206 18LG/TN (EXCEPT MEMORY) | ADJUSTABLE PEDALS MOTOR REARWARD |
| 6 | Q900 20OR/BK (MEMORY) | ADJUSTABLE PEDALS MOTOR FORWARD |
