A/C Compressor Clutch Connector End View

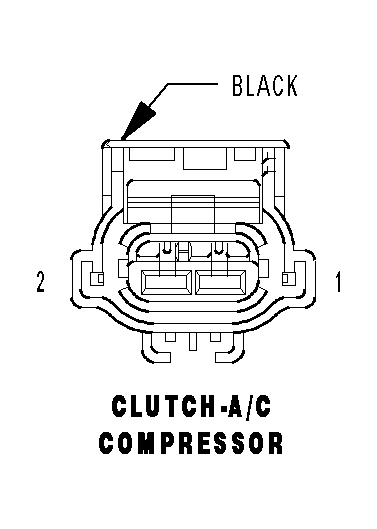

CLUTCH-A/C COMPRESSOR - BLACK 2 WAY

GCHB580410Courtesy of DAIMLERCHRYSLER CORP.
CAV CIRCUIT FUNCTION
1 C3 20DB/GY A/C CLUTCH RELAY OUTPUT
2 Z153 20BK/GY GROUND
