Integrated Power Module

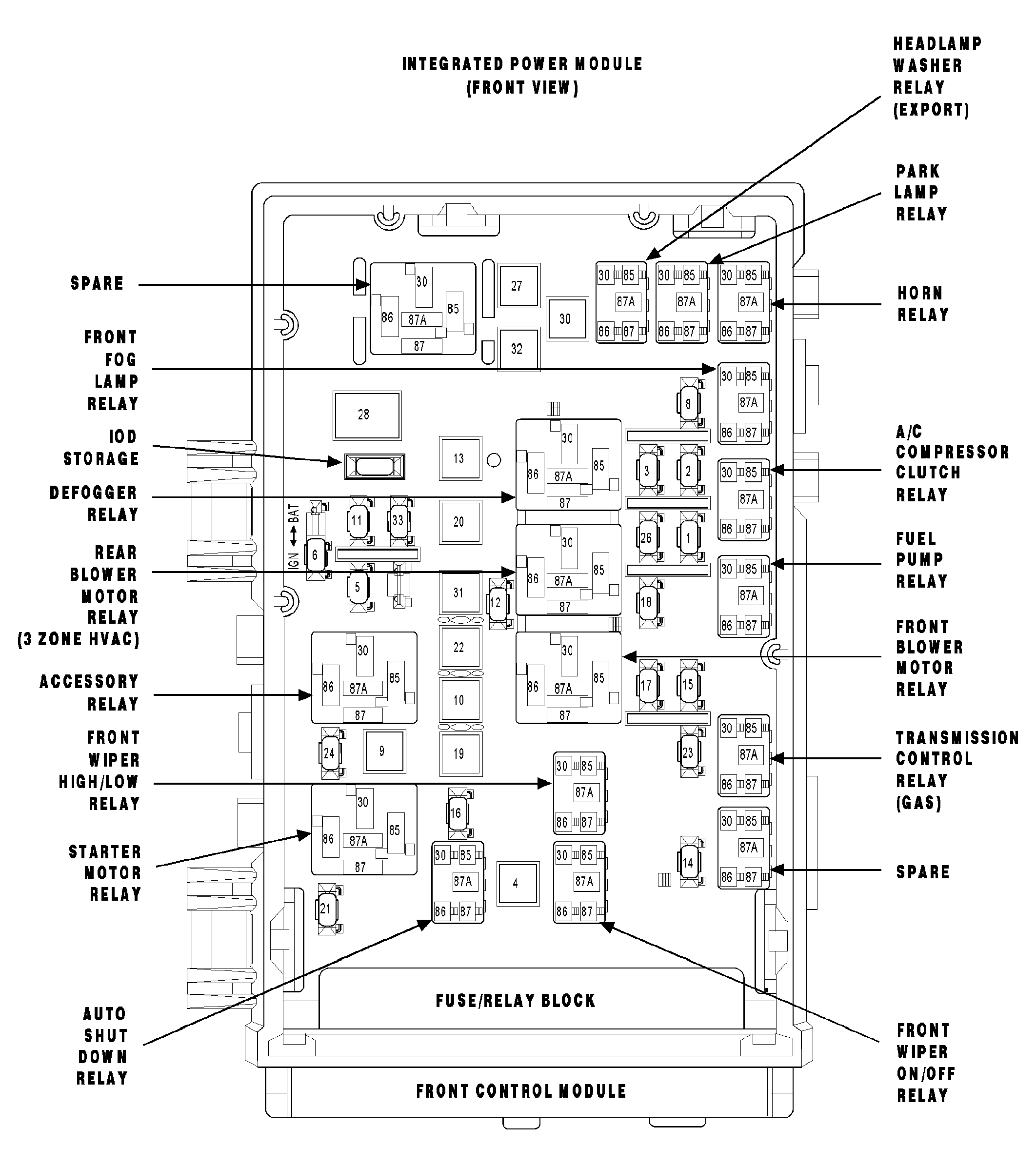

Fig 1: Identifying Integrated Power Module (Front View)
G04549645Courtesy of DAIMLERCHRYSLER CORP.

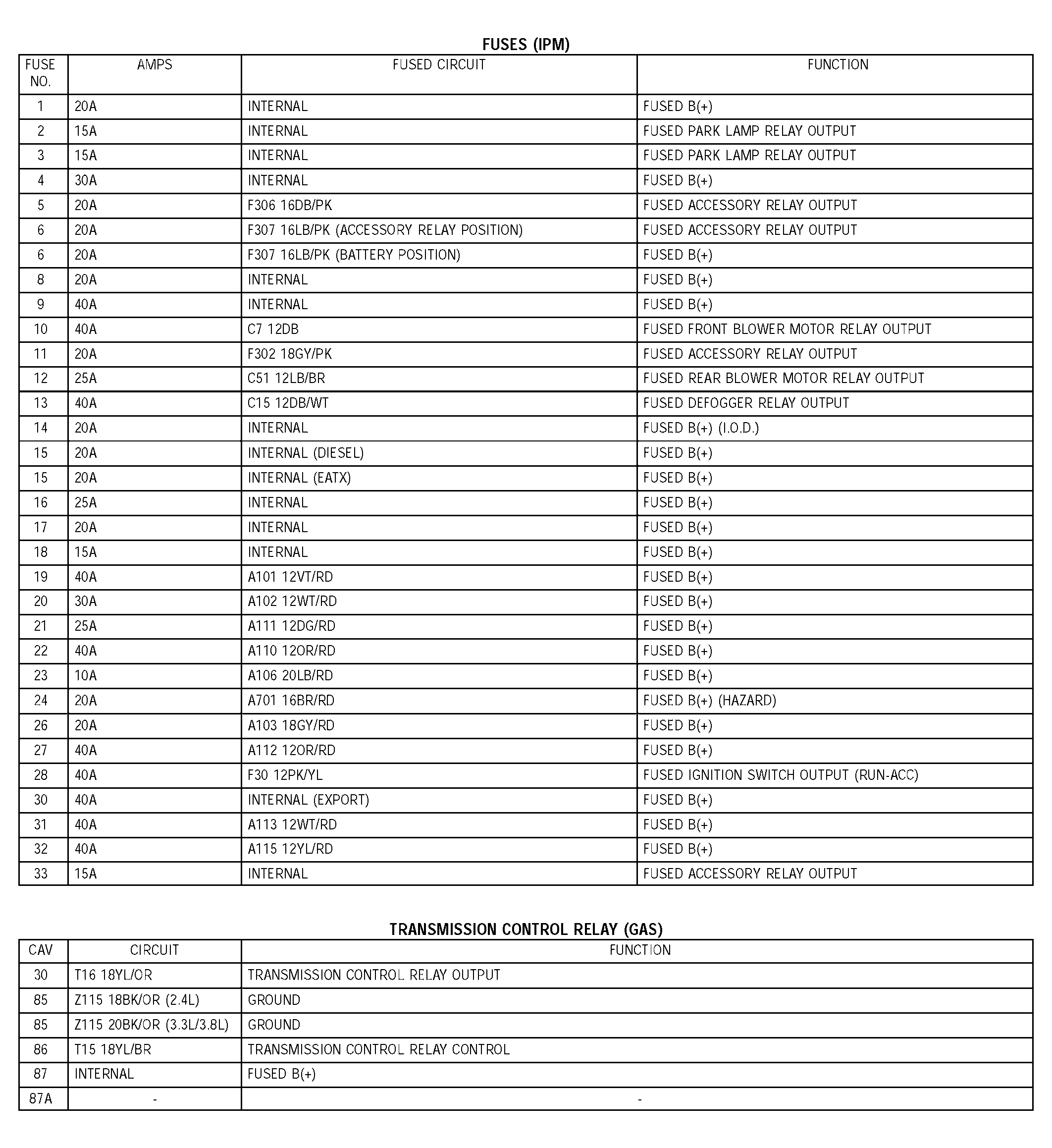

Fig 2: Identifying Integrated Power Module Fuses & Relays
G04549646Courtesy of DAIMLERCHRYSLER CORP.
