Powertrain Control Module C1 - Black/Black 38 Way

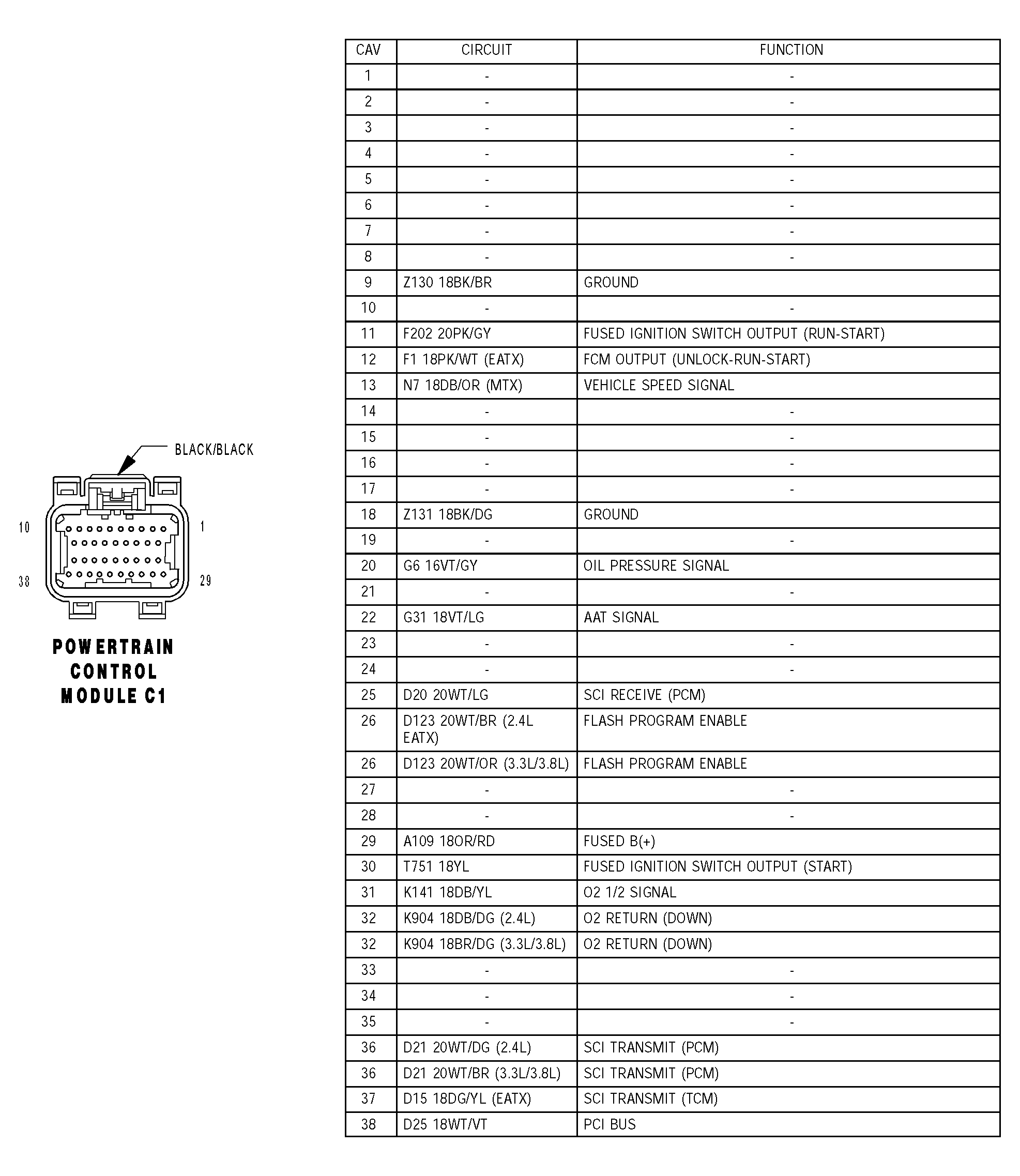

Fig 1: Identifying Powertrain Control Module C1 - Black/Black 38 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

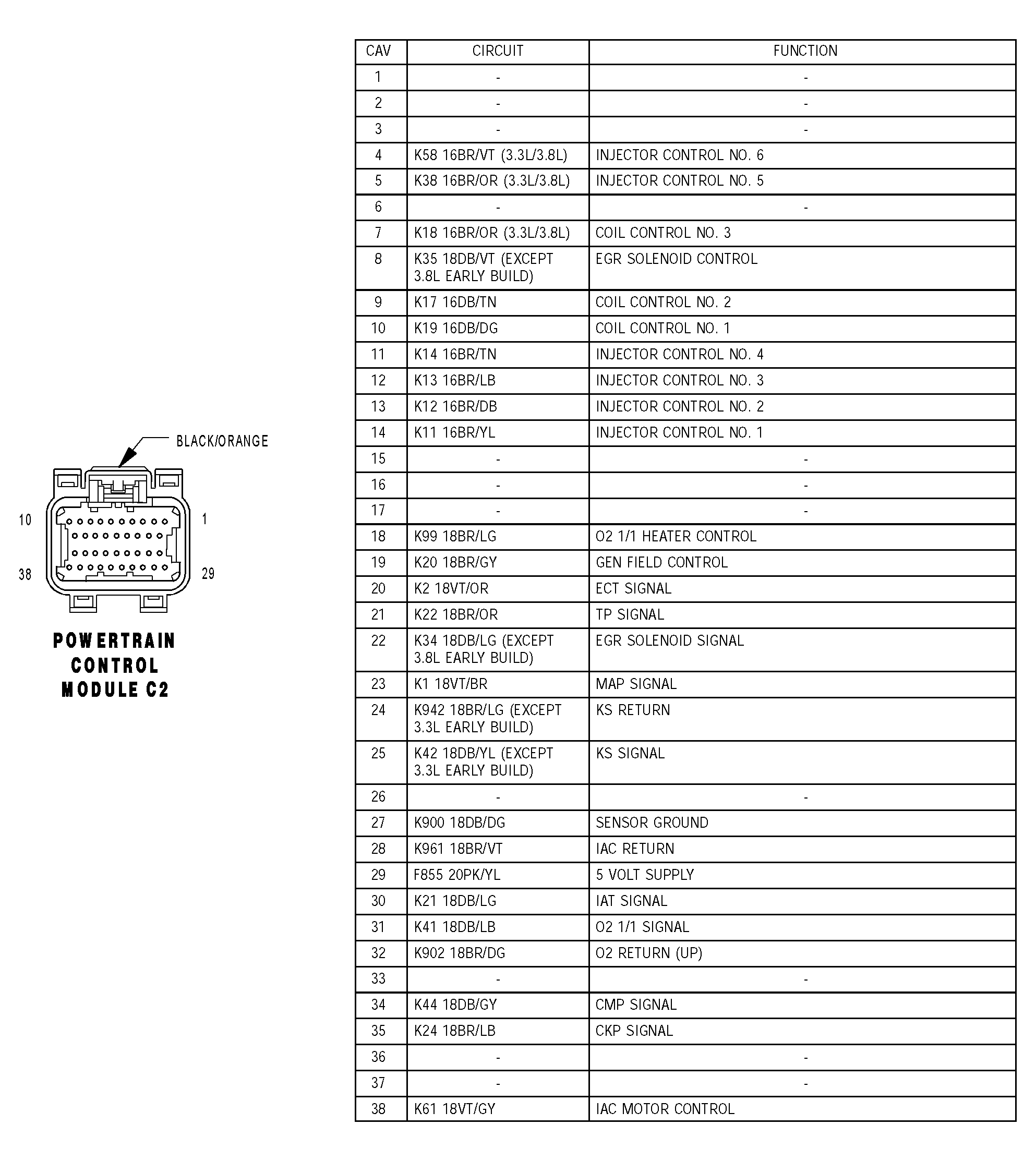

Fig 2: Identifying Powertrain Control Module C2 - Black/Orange 38 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

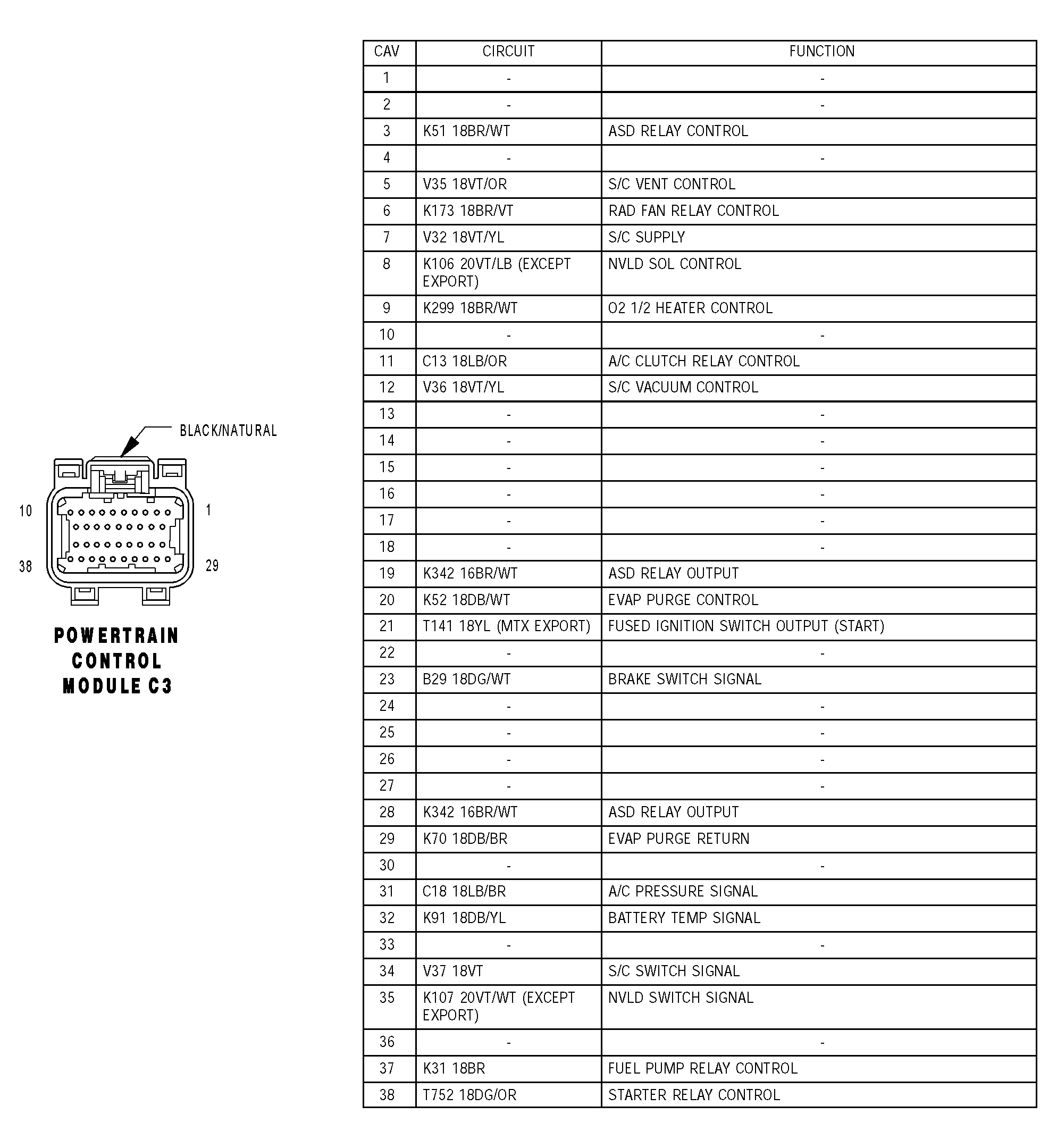

Fig 3: Identifying Powertrain Control Module C3 - Black/Natural 38 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.

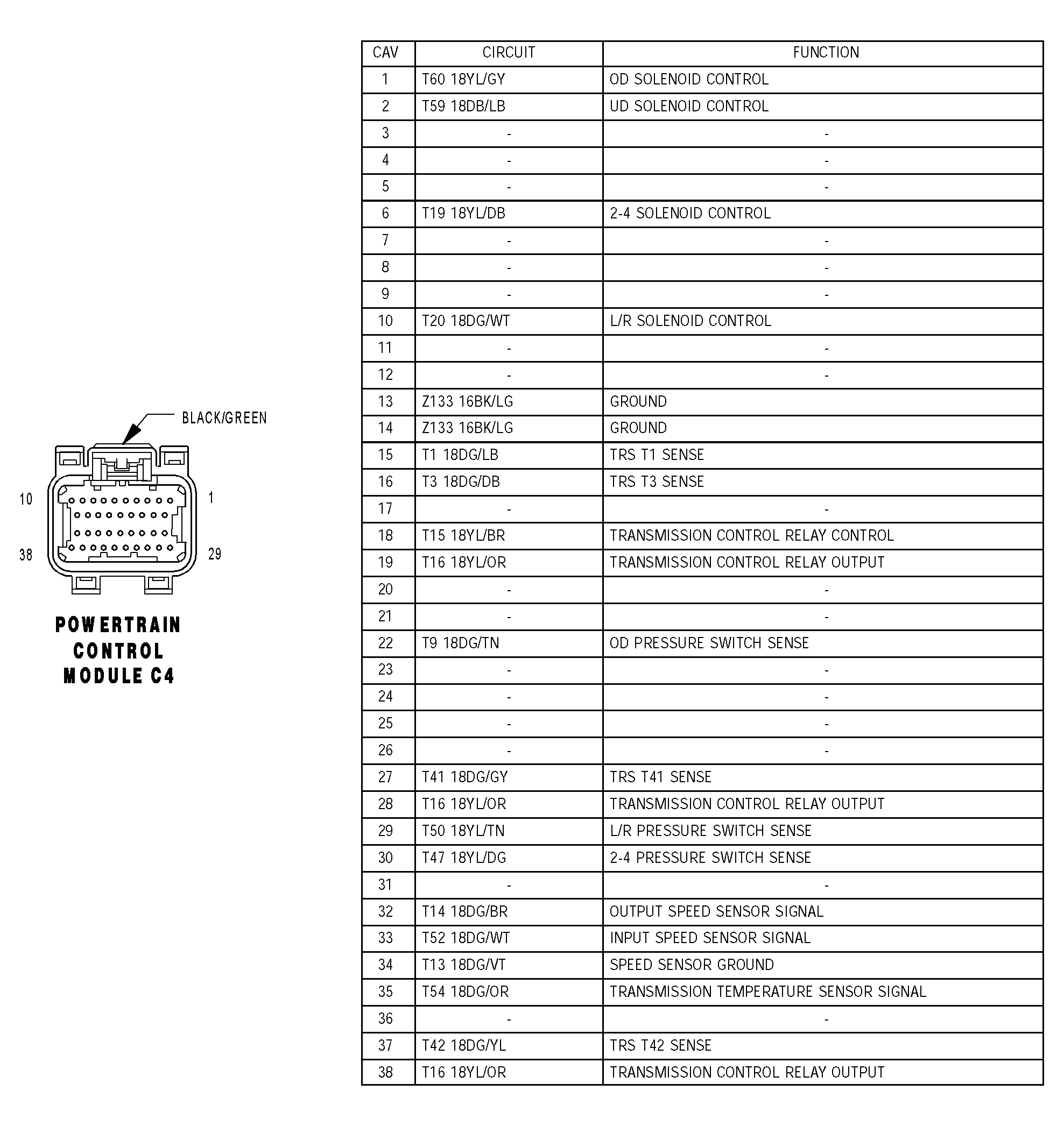

Fig 4: Identifying Powertrain Control Module C4 - Black/Green 38 Way Connector Pinouts

Courtesy of DAIMLERCHRYSLER CORP.
