Left Speed Control Switch - White 2 Way

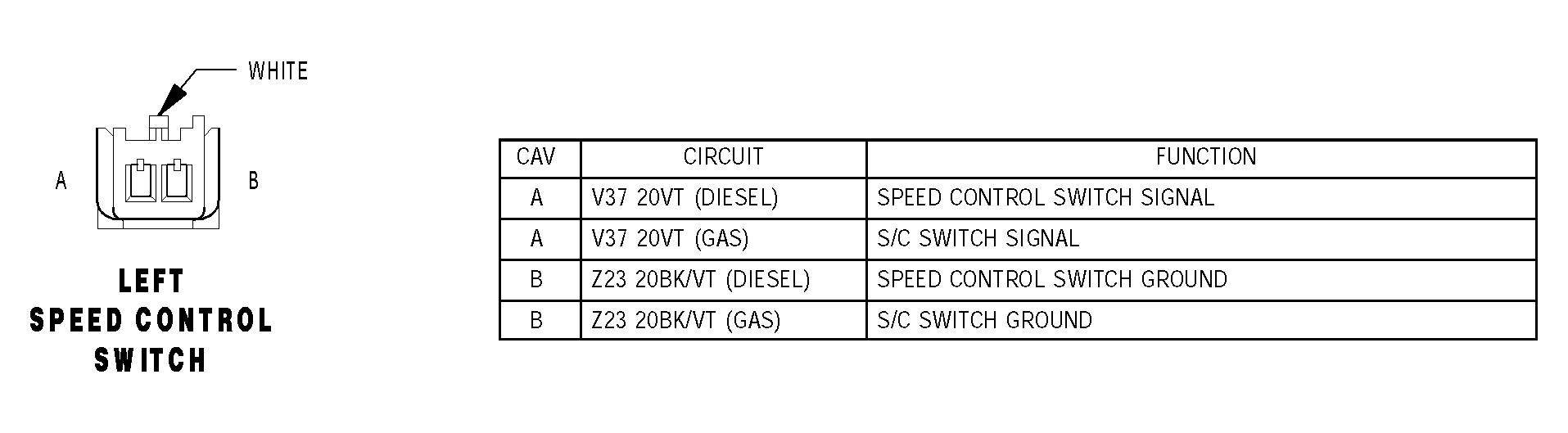

Fig 1: Identifying Left Speed Control Switch - White 2 Way Connector Pinouts

G04549253

Courtesy of DAIMLERCHRYSLER CORP.
