Idle Air Control Motor: Removal

When servicing throttle body components, always reassemble components with new O-rings and seals where applicable. If assembly of component is difficult, a light coat of engine oil may be applied to the O-RINGS ONLY to aid assembly. Use care when removing hoses to prevent damage to hose or hose nipple.

1. Disconnect negative cable from battery.
2. Remove electrical connector from idle air control valve. See Fig 1.

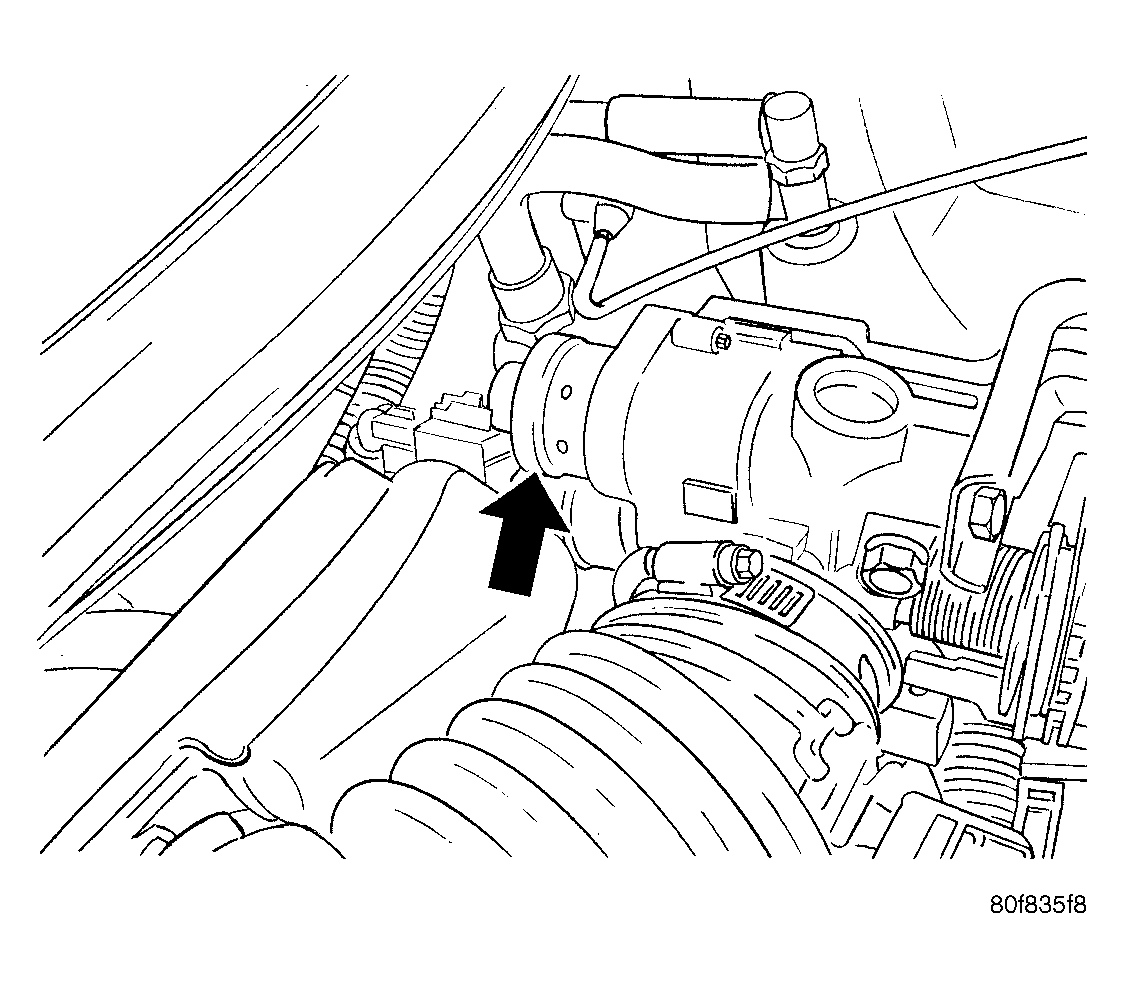

   Fig 1: Idle Air Control Valve Location

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove idle air control valve mounting screw.
4. Remove valve from throttle body. Ensure the O-rings is removed with the valve.
