Crankshaft Position Sensor: Removal

  1. Disconnect the negative battery cable.
  2. Raise vehicle and support.
  3. Disconnect the electrical connector. See Fig 1.

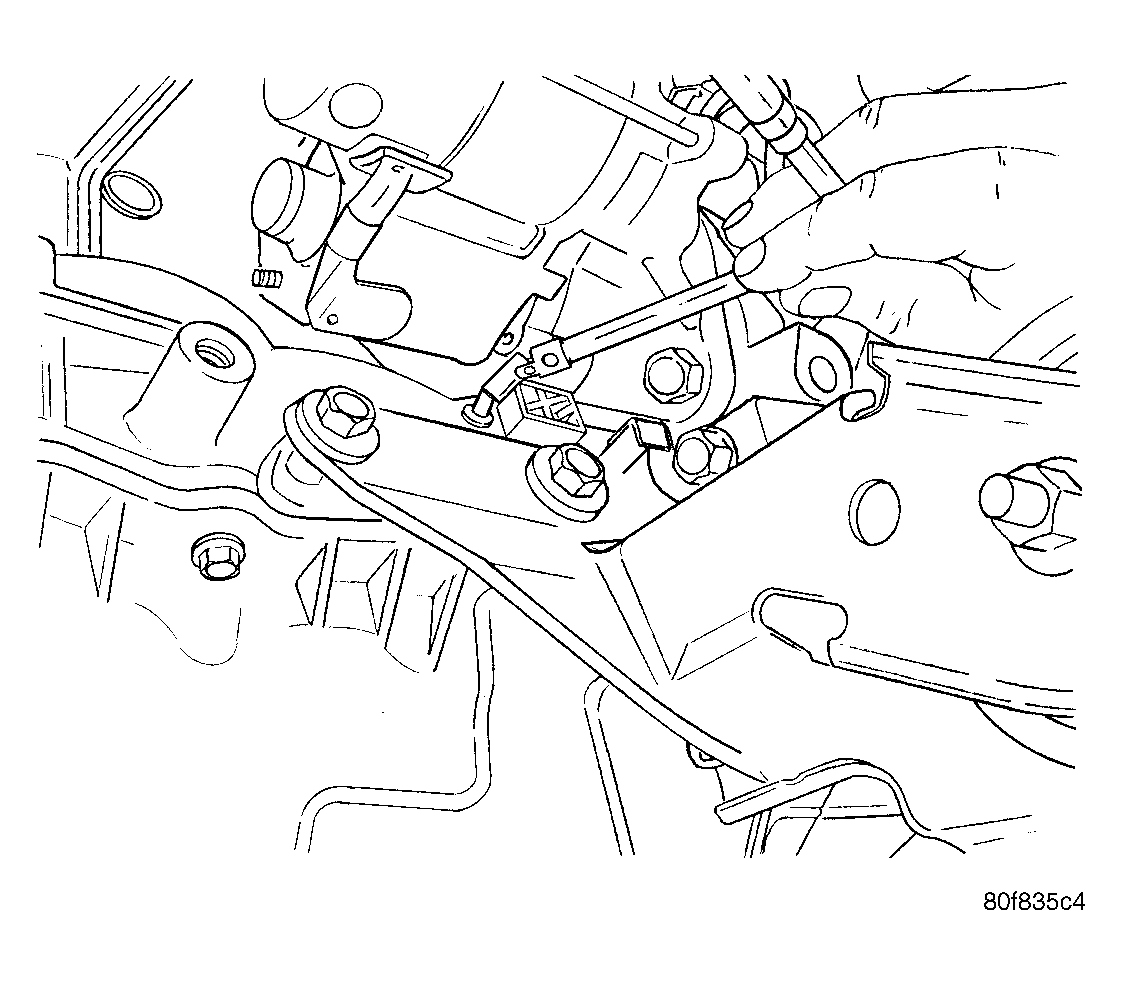

    Fig 1: Crankshaft Sensor 2.4L
    GC0023221Courtesy of DAIMLERCHRYSLER CORP.
  4. Remove crankshaft sensor bolt. See Fig 2.

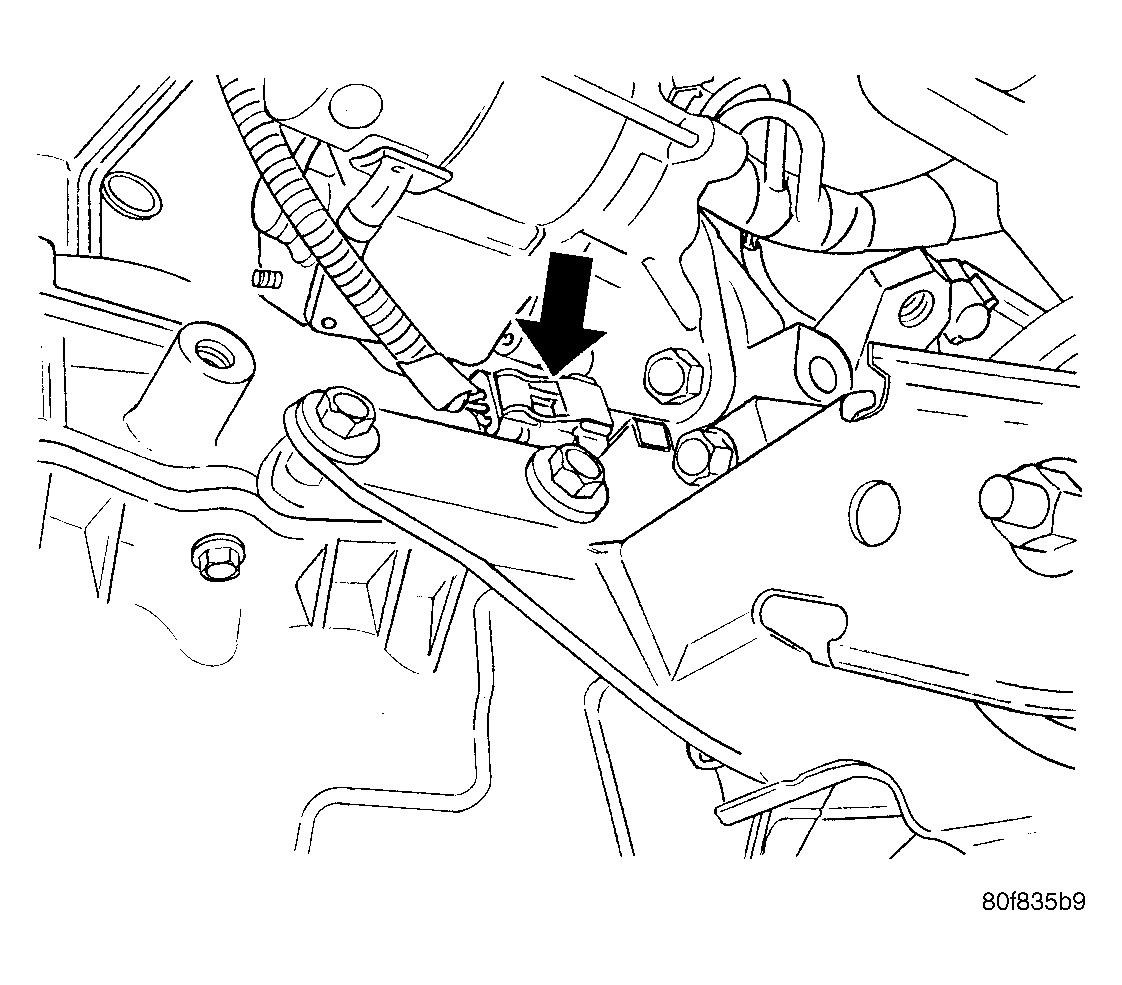

    Fig 2: Crankshaft Position Sensor Location 2.4L
    GC0023222Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove the crankshaft sensor.
