Crankshaft Position Sensor: Description

The 2.4L crankshaft sensor is located on the rear of the engine near the accessory drive belt. See Fig 1. The 3.3/3.8L crankshaft sensor is located on the rear of the transmission housing, above the differential housing. See Fig 2. The bottom of the sensor is positioned next to the drive plate.

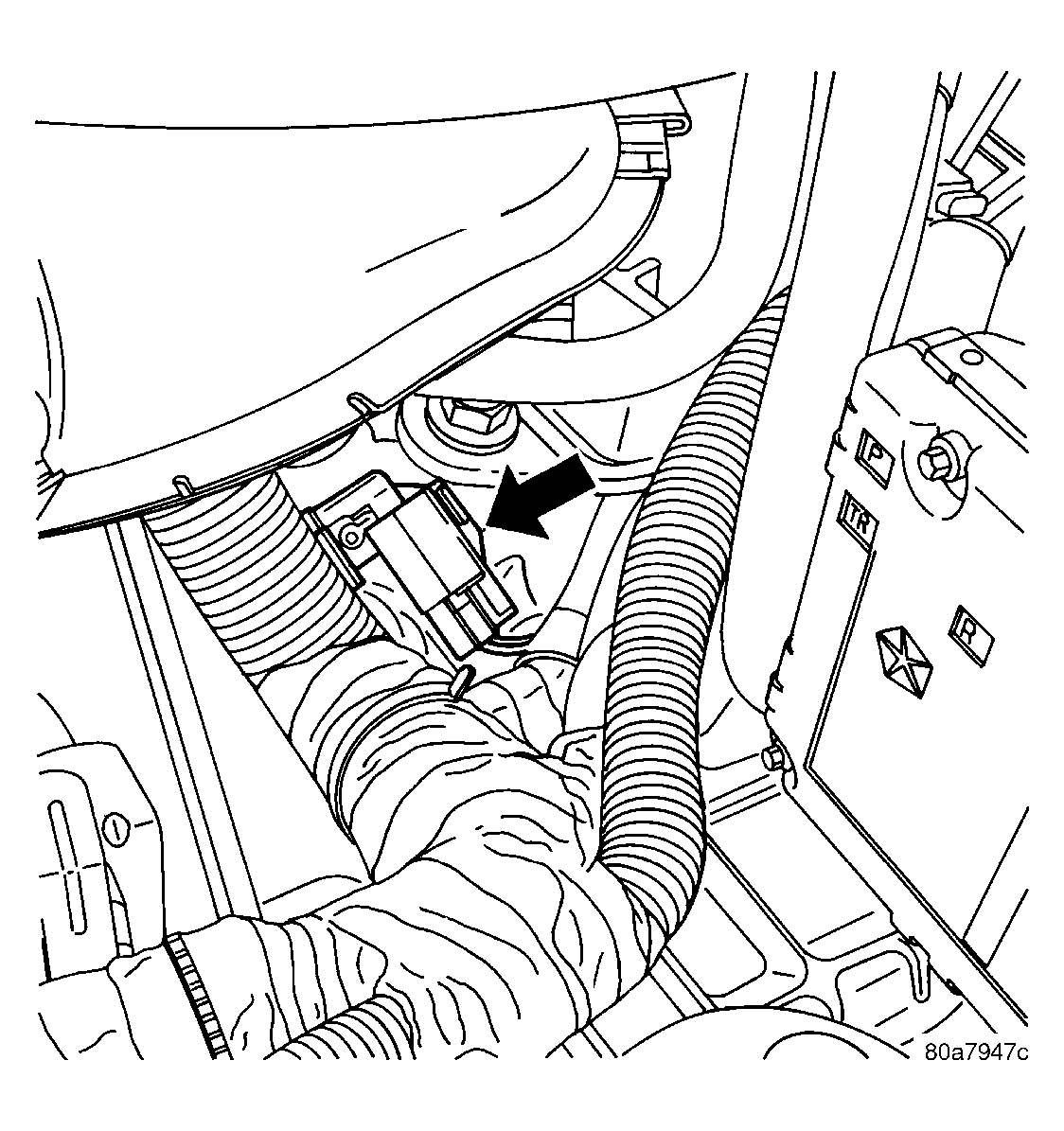

Fig 1: Crankshaft Sensor 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

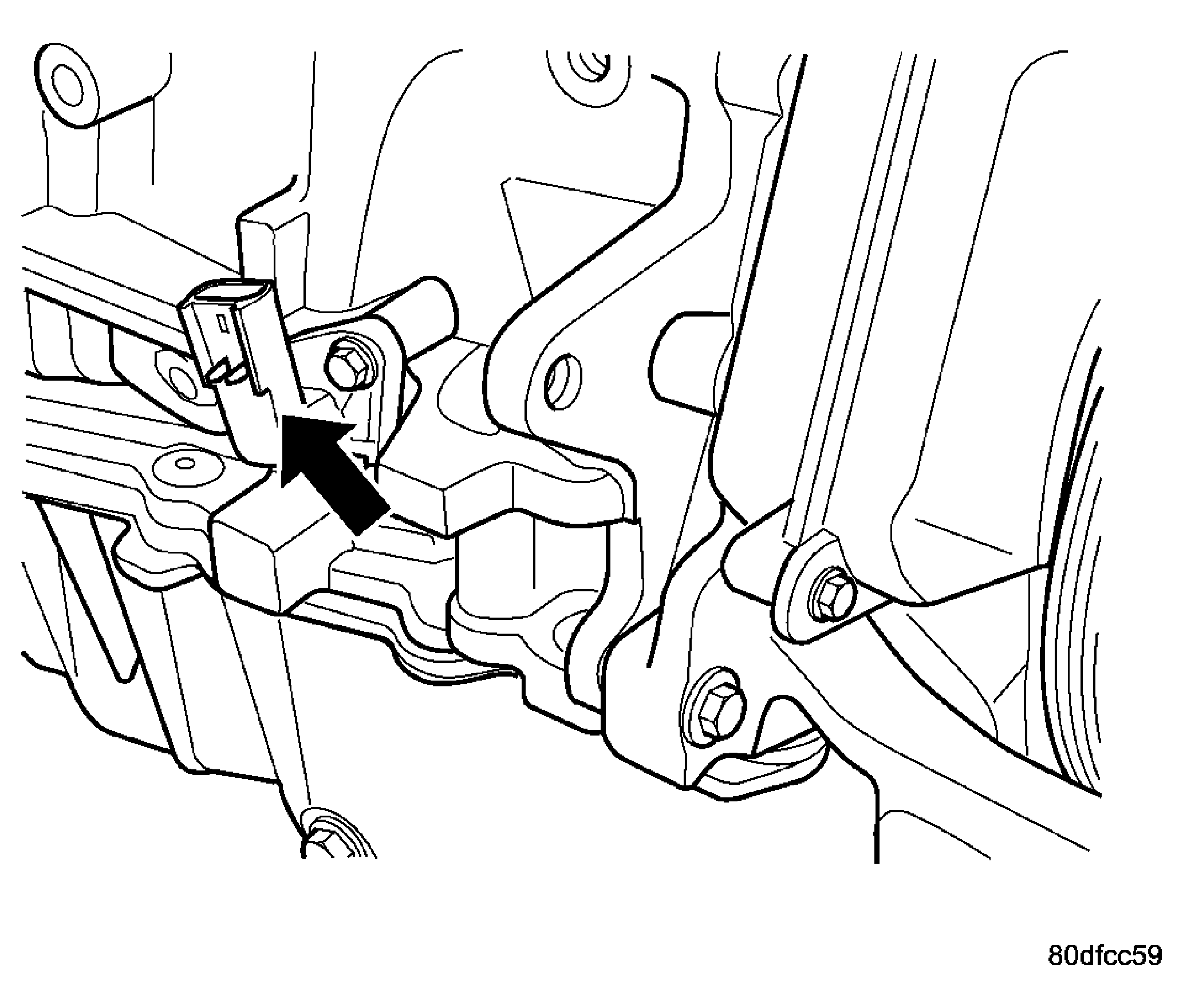

Fig 2: Crankshaft Sensor 3.3/3.8L

Courtesy of DAIMLERCHRYSLER CORP.
