Heat Shields: Installation

  1. Position heat shield(s) to underbody.

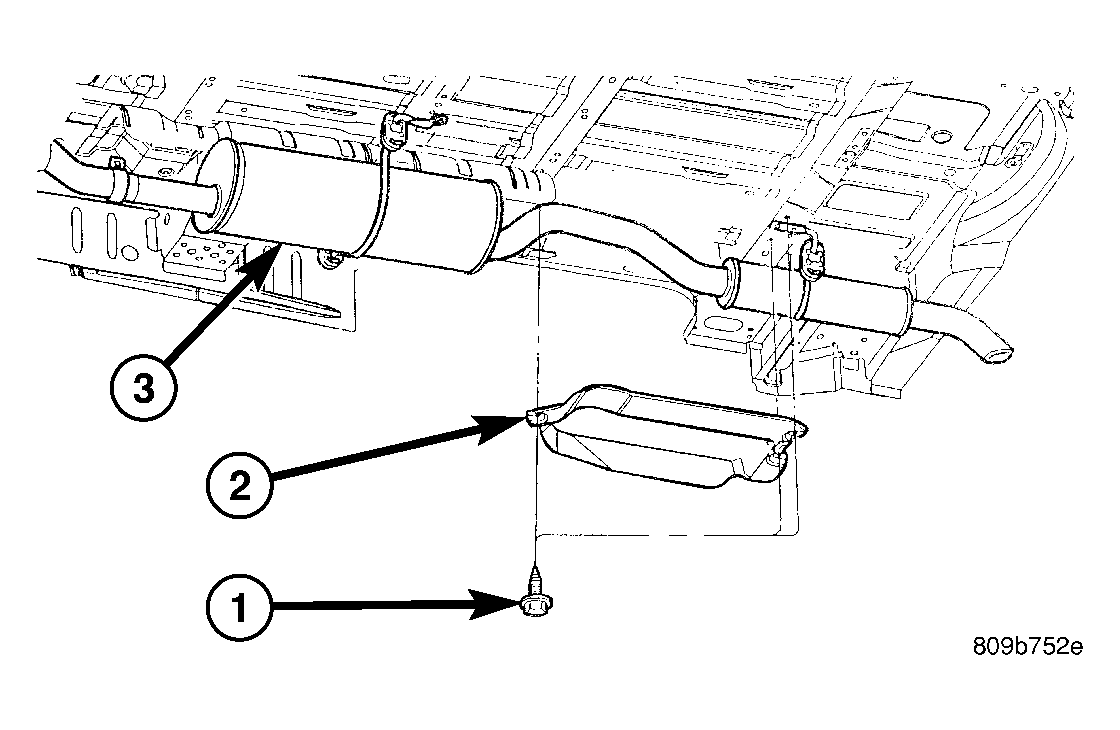

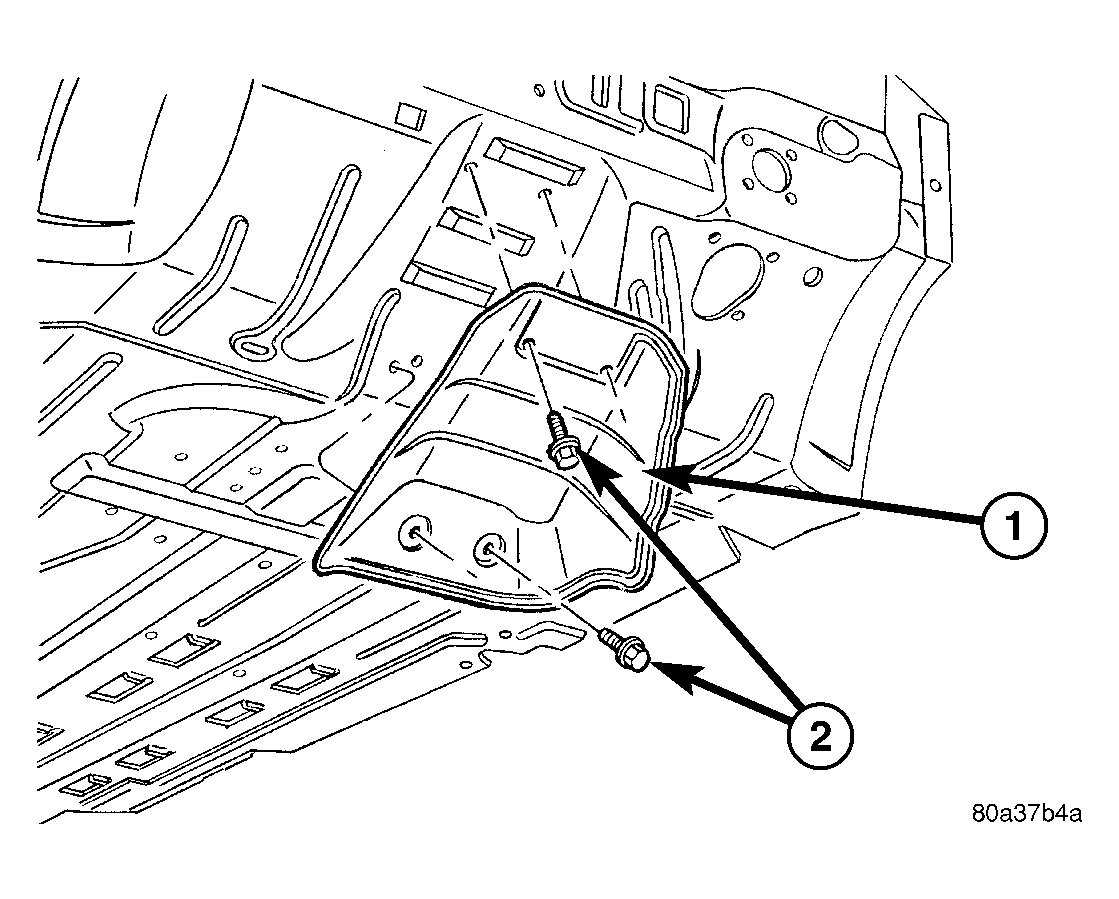

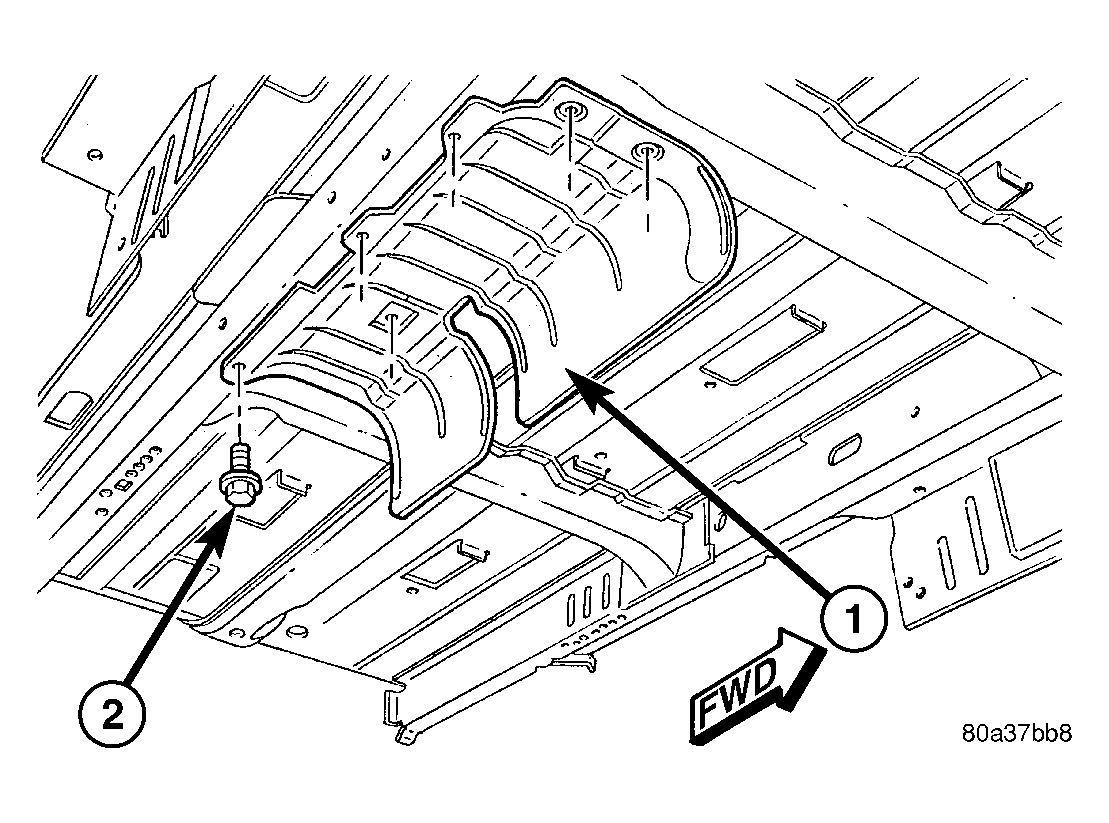

  2. Install heat shield fasteners and tighten to 2.6 N.m (23 in. lbs.). See Figure, Figure or Figure.
  3. Lower vehicle.
  4. Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
  5. Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
