Vent Window Motor: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove D-pillar trim panel. (Refer to BODY/INTERIOR/LEFT D-PILLAR TRIM PANEL - REMOVAL) or (Refer to BODY/INTERIOR/RIGHT D-PILLAR TRIM PANEL - REMOVAL) .
  3. Disconnect wire connector from power vent motor.
  4. Using a flat bladed tool, carefully lift the circular actuator link tab. Remove link from window ball socket.
  5. Remove bolts holding power vent motor to D-pillar. See Fig 1.

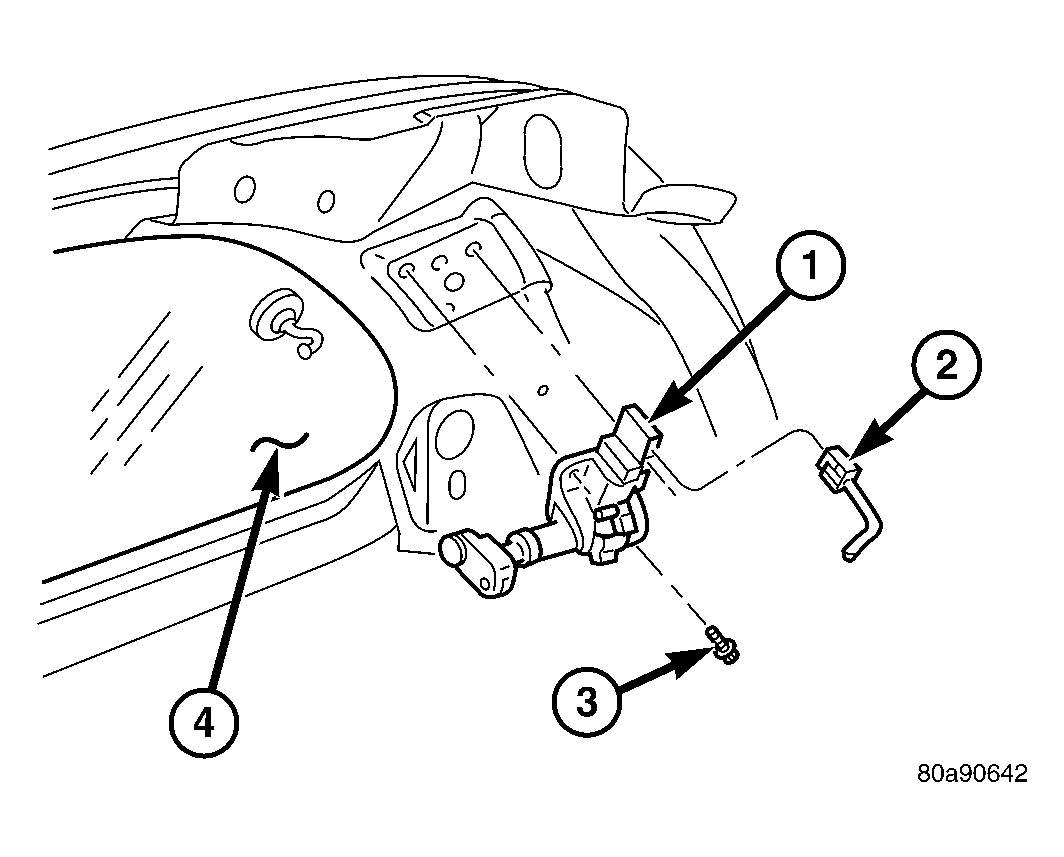

    Fig 1: VENT WINDOW MOTOR
    GC0024816Courtesy of DAIMLERCHRYSLER CORP.
    1 - VENT WINDOW MOTOR
    2 - WIRE HARNESS CONNECTOR
    3 - BOLT
    4 - VENT WINDOW
  6. Remove power vent motor.
