Battery Temperature Sensor - Black 2 Way

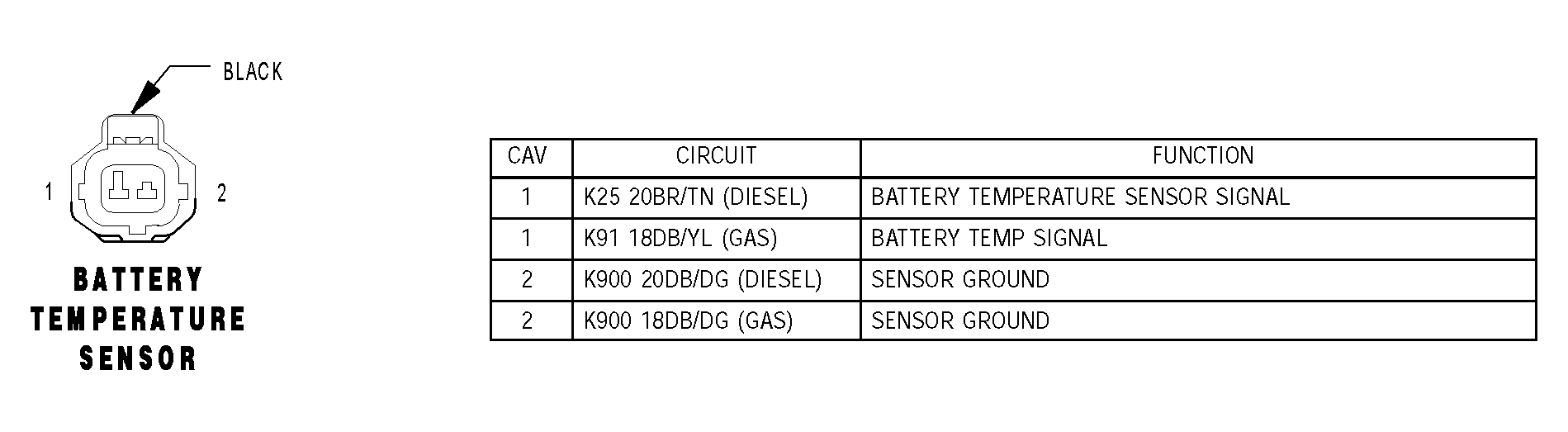

Fig 1: Identifying Battery Temperature Sensor - Black 2 Way Connector Pinouts

G04549230

Courtesy of DAIMLERCHRYSLER CORP.
