Installation - Fold-In-Floor

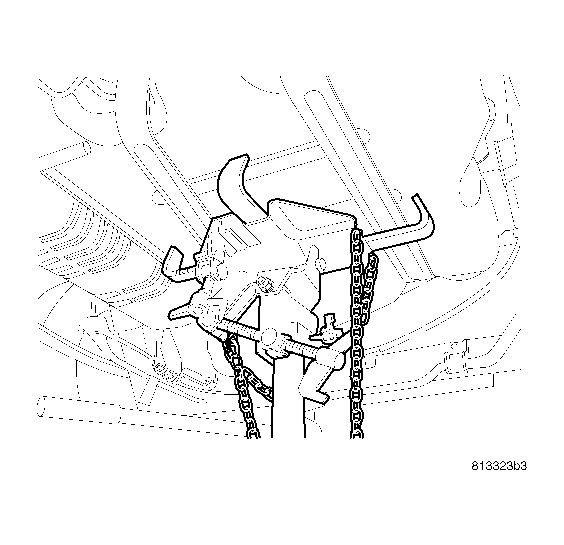

  1. Use a transmission jack to support fuel tank.

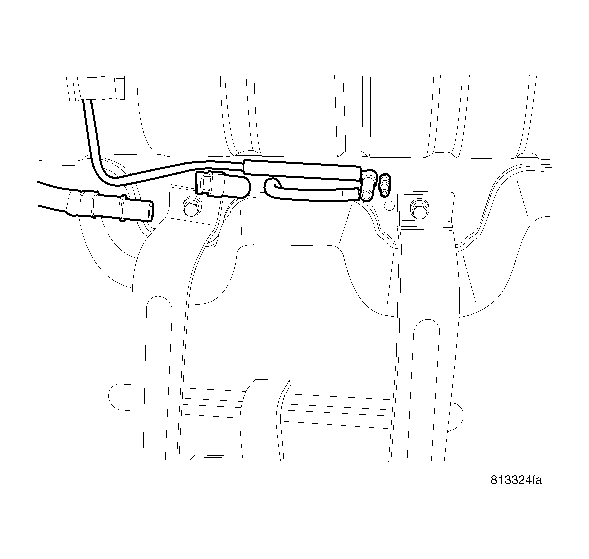

  2. Raise tank and install fuel filler vent tube thru frame. See Figure.
  3. Raise tank.
  4. Connect the fuel fill hose at the fuel tank filler metal tube and tighten clamp.
    CAUTION: Ensure straps are not twisted or bent before or after tightening strap bolts.

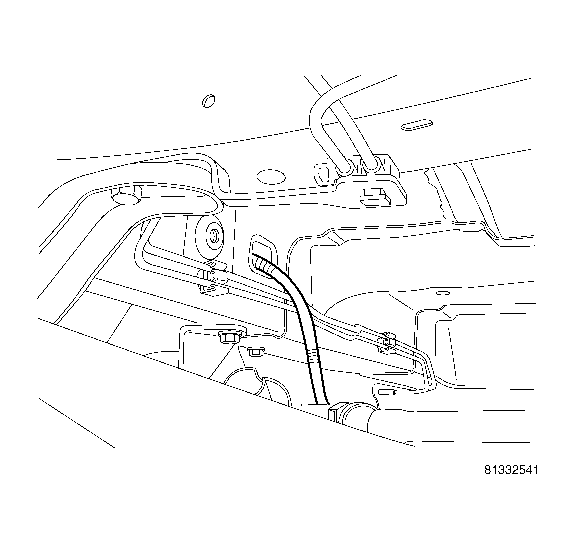

  5. Install bolts for fuel tank straps. See Figure.
  6. Tighten strap bolts to 54 N.m (40 ft. lbs.) torque. Remove transmission jack.
  7. Connect the fuel filler vent tube.

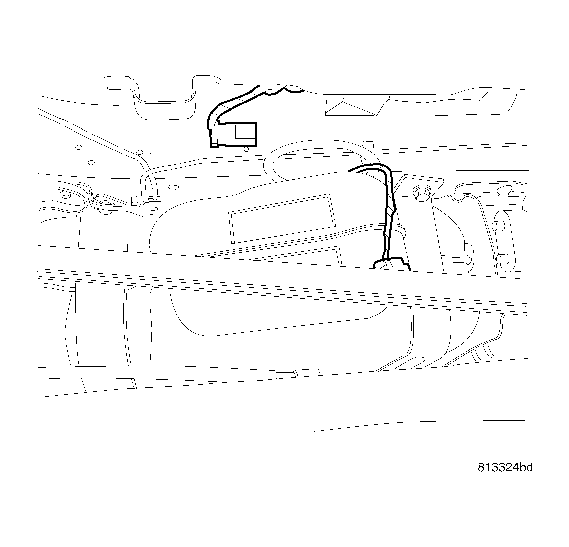

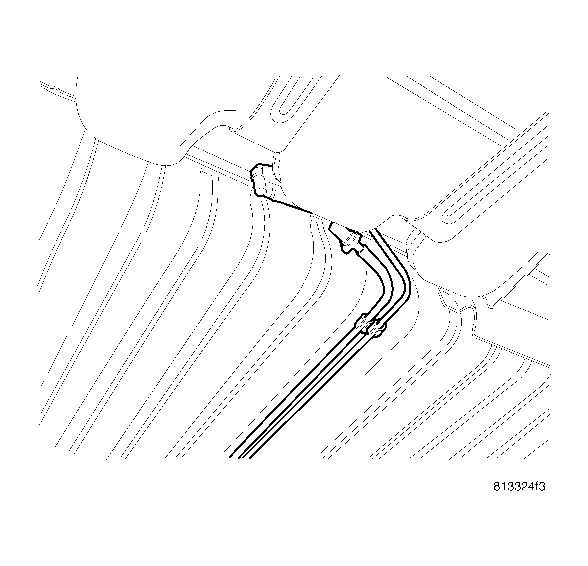

  8. Connect fuel line and vapor line at the front of the fuel tank. See Figure and Figure.
  9. Connect the electrical connector.

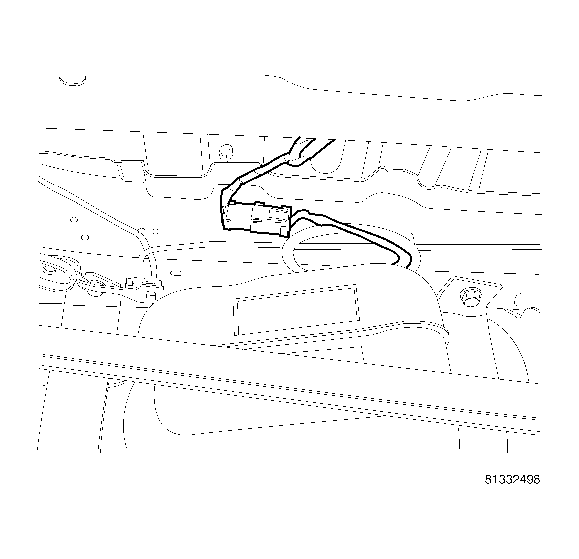

  10. Slide fuel pump module electrical connector lock to lock. See Figure and Figure.
  11. Lower vehicle.
  12. Fill fuel tank, replace cap, and connect battery negative cable.
  13. Use the DRBIII(R) scan tool to pressurize the fuel system. Check for leaks.
