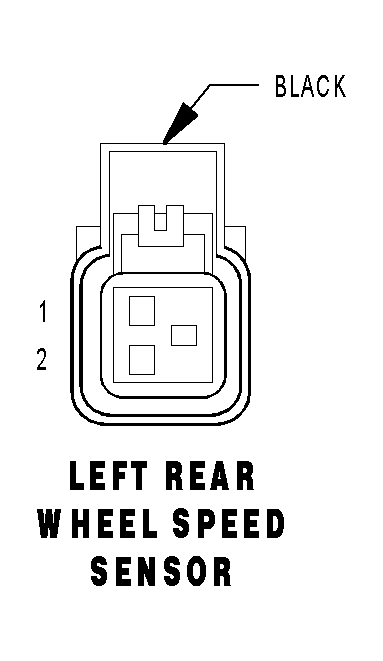

Left Rear Wheel Speed Sensor Connector End View
LEFT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
B4 18DG/GY |
LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY |
| 2 |
B3 18DG/YL |
LEFT REAR WHEEL SPEED SENSOR SIGNAL |
