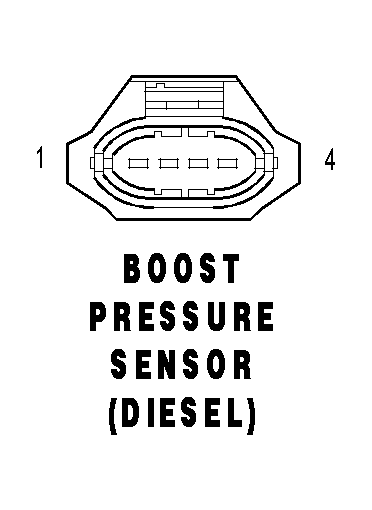

Boost Pressure Sensor (Diesel) Connector End View
BOOST PRESSURE SENSOR (DIESEL) - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K121 20DB |
BOOST PRESSURE SENSOR GROUND |
| 2 |
K21 20DB/LG |
INTAKE AIR TEMPERATURE SENSOR SIGNAL |
| 3 |
F851 20LB/PK |
SENSOR REFERENCE VOLTAGE B |
| 4 |
K37 20DB/YL |
BOOST PRESSURE SENSOR SIGNAL |
