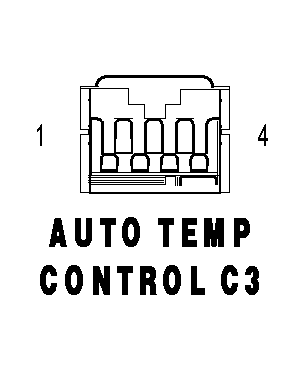

Automatic Temperature Control Connector End View (C3)
AUTO TEMP CONTROL C3 - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
F600 20LB/PK |
PROTECTED IGNITION |
| 2 |
D40 20WT/LB |
KDB NO. 2 CLOCK |
| 3 |
C905 20BR/LB |
SENSOR RETURN |
| 4 |
D18 20WT/YL |
KDB NO. 2 DATA |
