Schematic Diagrams

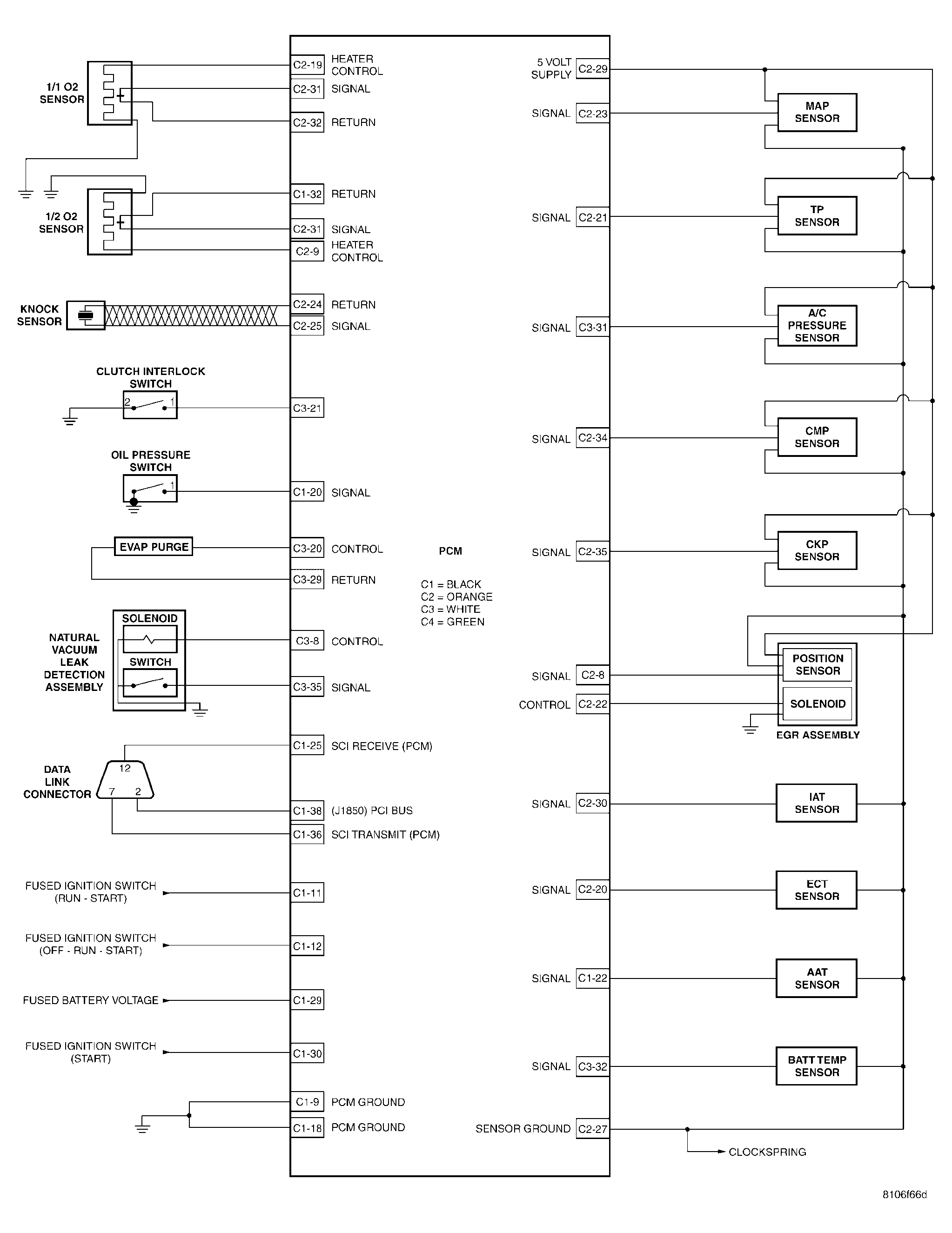

Fig 1: PCM Wiring Diagram (1 Of 2)

G04549271

Courtesy of DAIMLERCHRYSLER CORP.

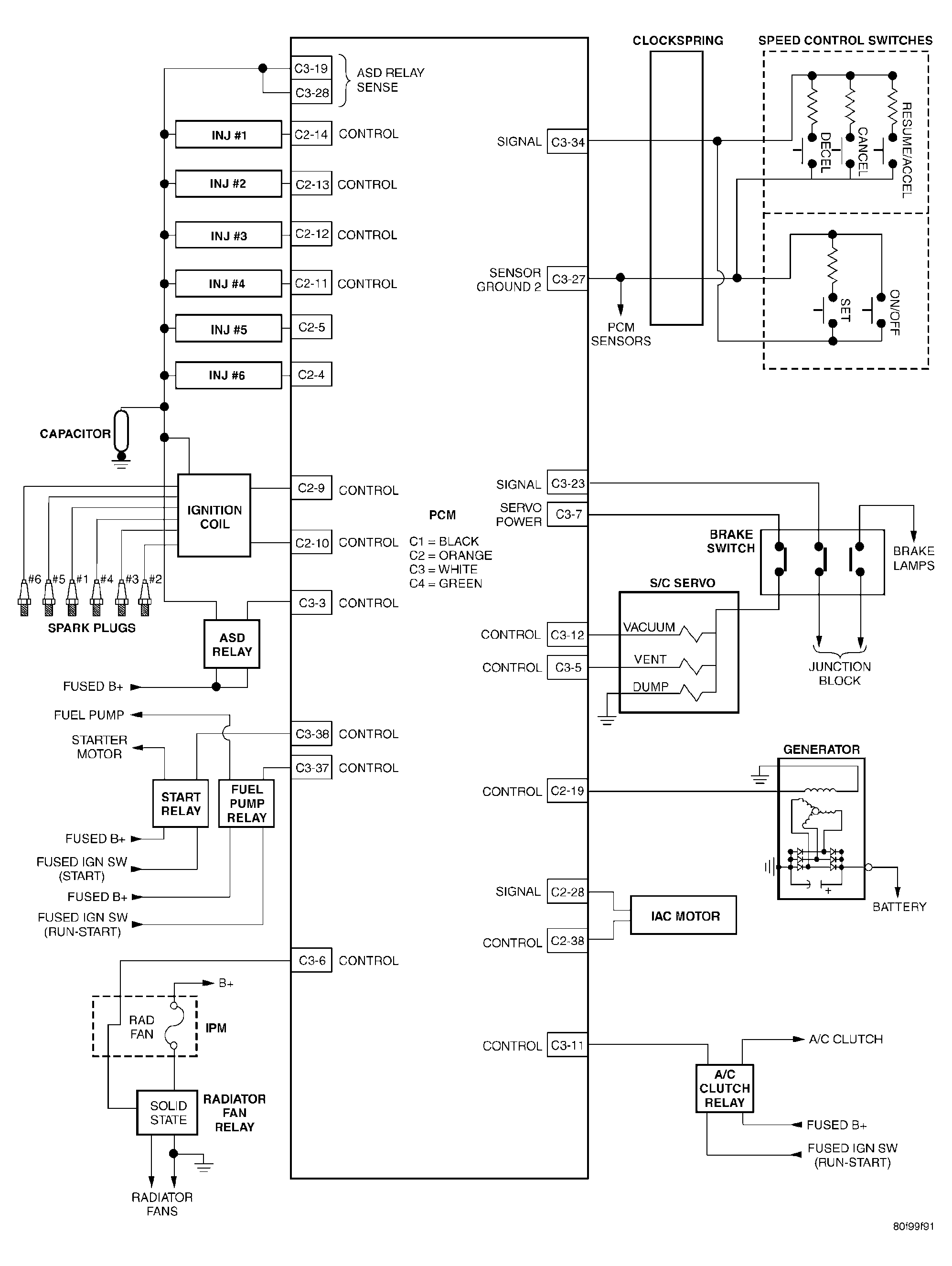

Fig 2: PCM Wiring Diagram (2 Of 2)

G04549272

Courtesy of DAIMLERCHRYSLER CORP.
