SBEC Vehicles

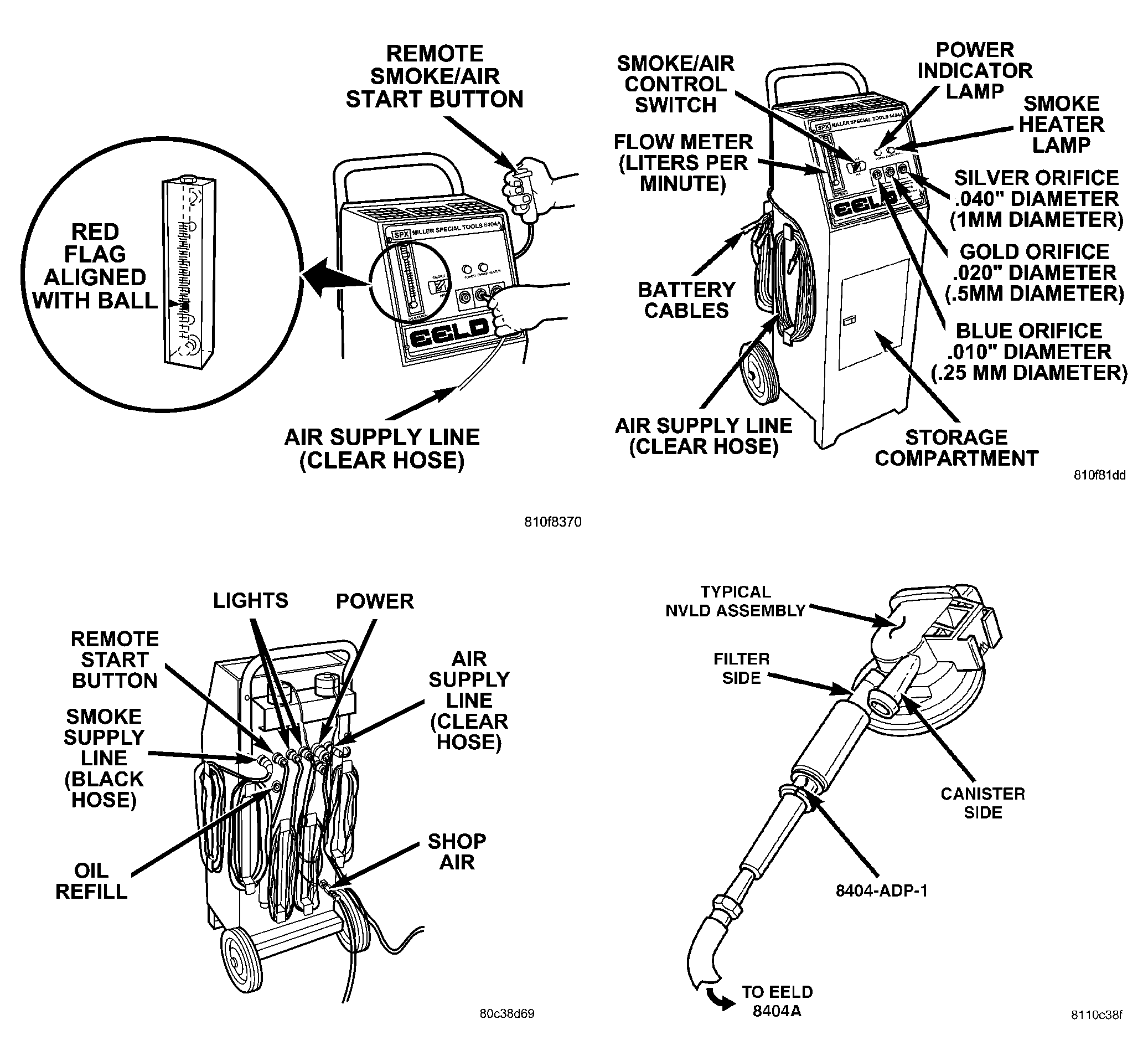

Fig 1: Identifying SBEC Vehicles Components Locations

G04549275

Courtesy of DAIMLERCHRYSLER CORP.

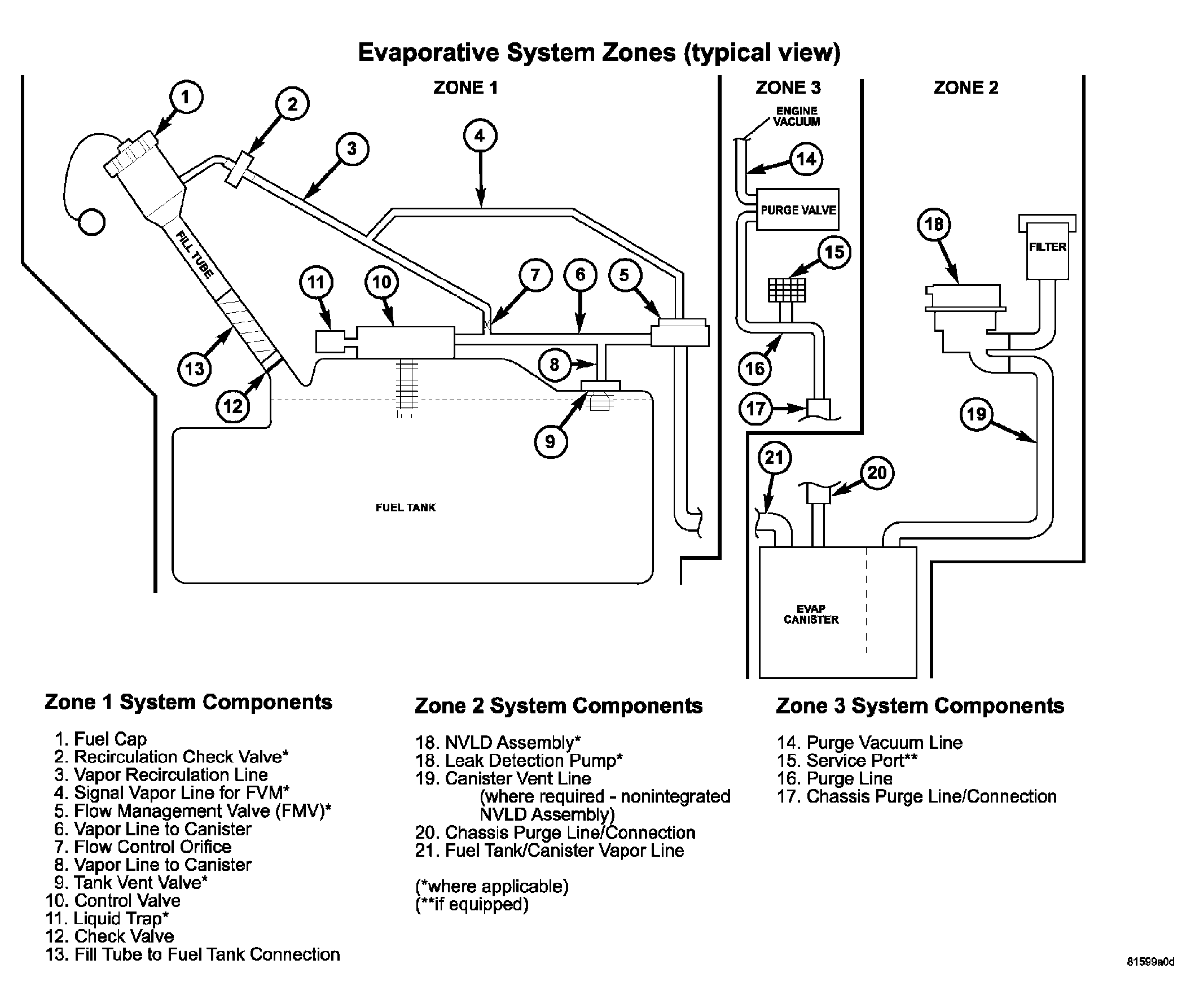

Fig 2: Evaporative Emissions System Diagram

G04549276

Courtesy of DAIMLERCHRYSLER CORP.
