Installation - 3.3/3.8L

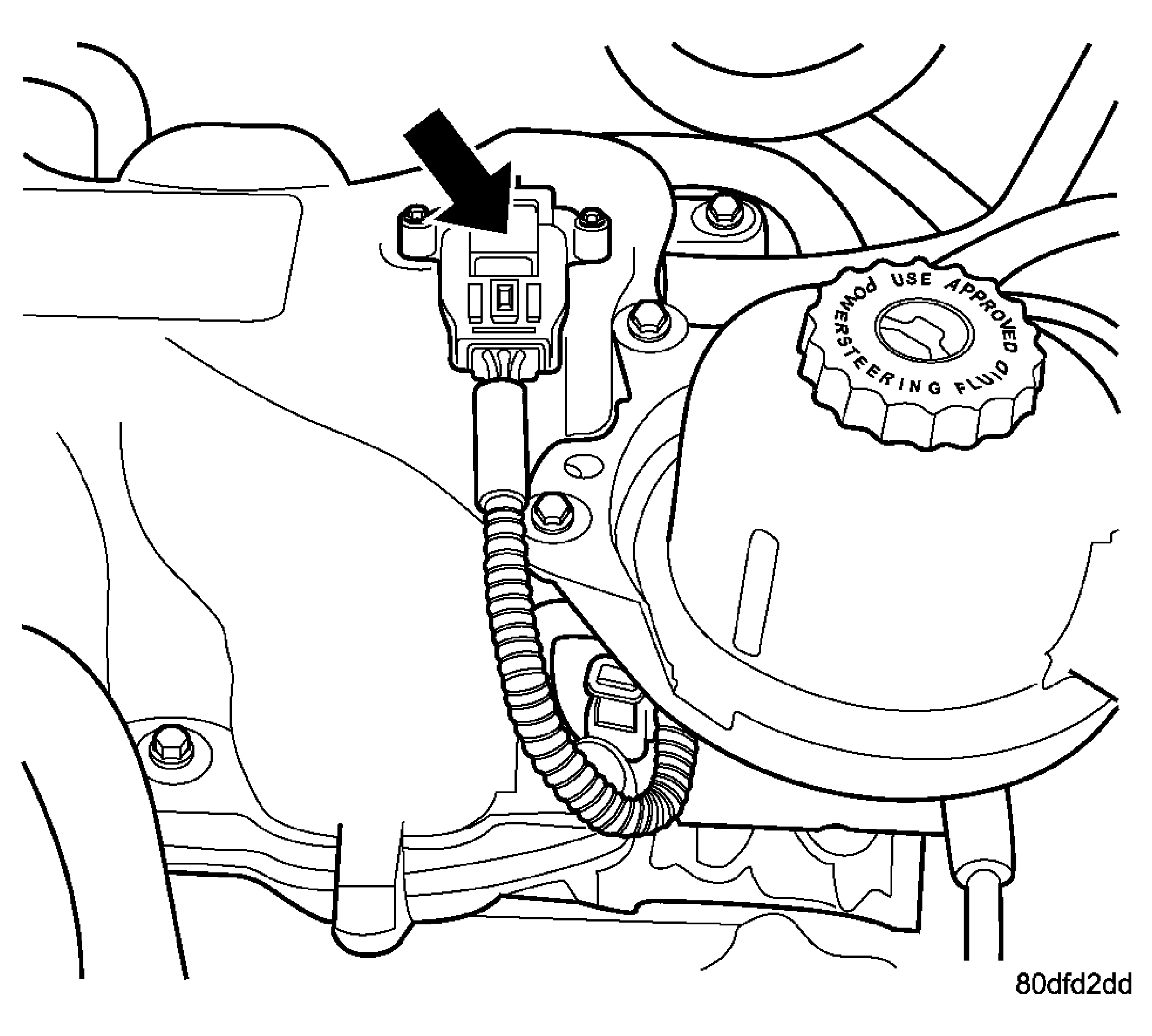

  1. Install sensor. See Figure.
  2. Install screws and tighten to PLASTIC MANIFOLD 1.7 N.m (15 in. lbs.) ALUMINUM MANIFOLD 3.3 N.m (30 in. lbs.)   .
  3. Connect the electrical connector to the sensor. Install vacuum hose.
  4. Connect the negative battery cable.
