Hands Free Module: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Remove the instrument panel lower console (Refer to BODY/INSTRUMENT PANEL/STORAGE BIN - REMOVAL) .
  3. Remove the mounting fasteners. See Fig 1.

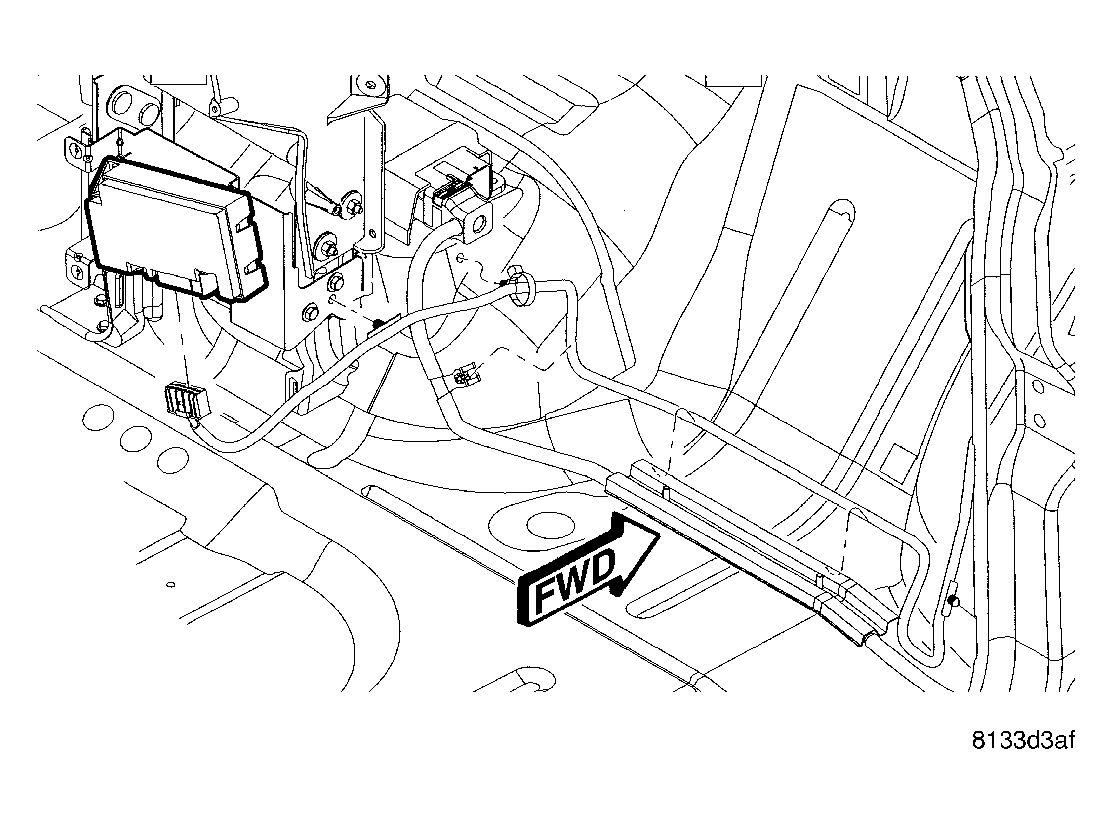

    Fig 1: HANDS FREE MODULE
    GC0024769Courtesy of DAIMLERCHRYSLER CORP.
  4. Disconnect the electrical harness connector and remove module.
