Throttle Position Sensor-Black 3 Way

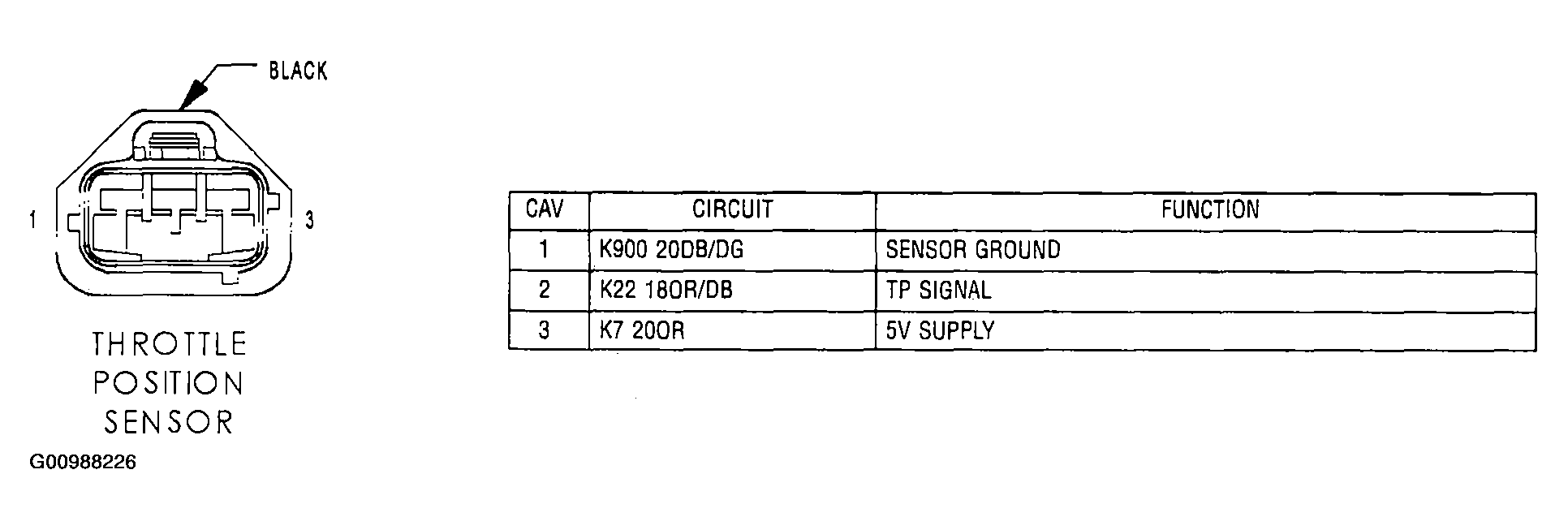

Fig 1: View Of Throttle Position Sensor 3 Way Connector Pinouts And Function Description Chart

G00988226

Courtesy of DAIMLERCHRYSLER CORP.
