Oxygen Sensor 1/2 Left Bank Down-Black 4 Way

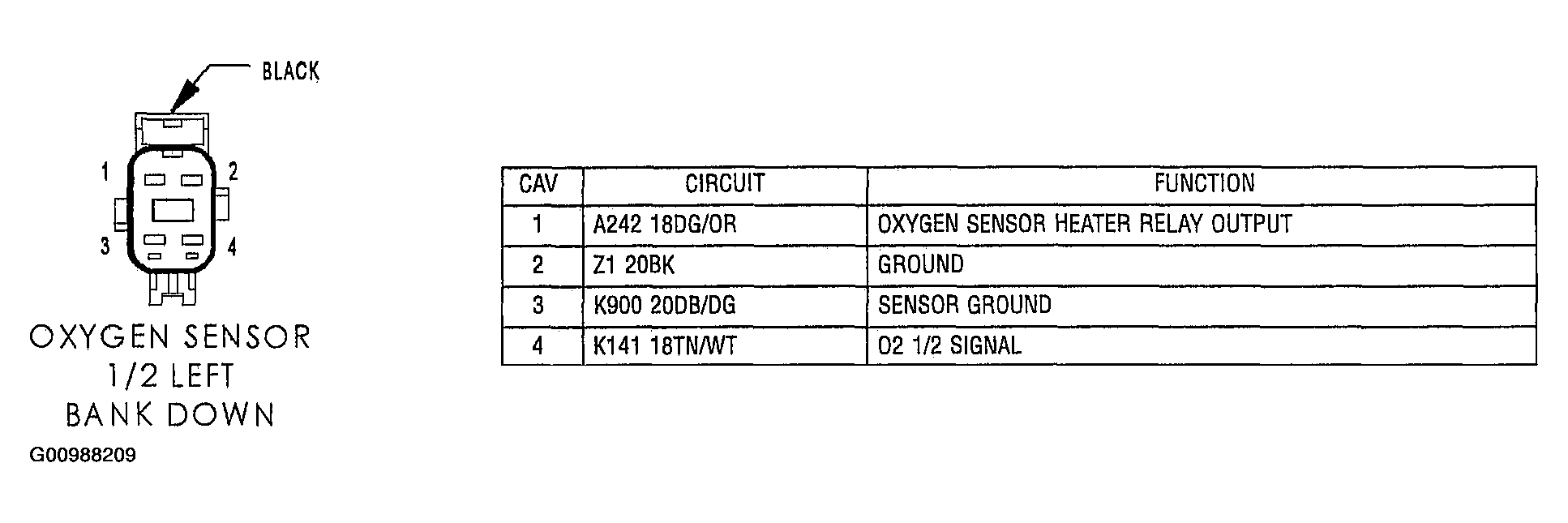

Fig 1: View Of O2S Left Bank Down 4 Way Connector Pinouts And Function Description Chart (1/2)

G00988209

Courtesy of DAIMLERCHRYSLER CORP.
