Intake Air Temperature Sensor-Black 2 Way
Intake Air Temperature Sensor-Black 2 Way

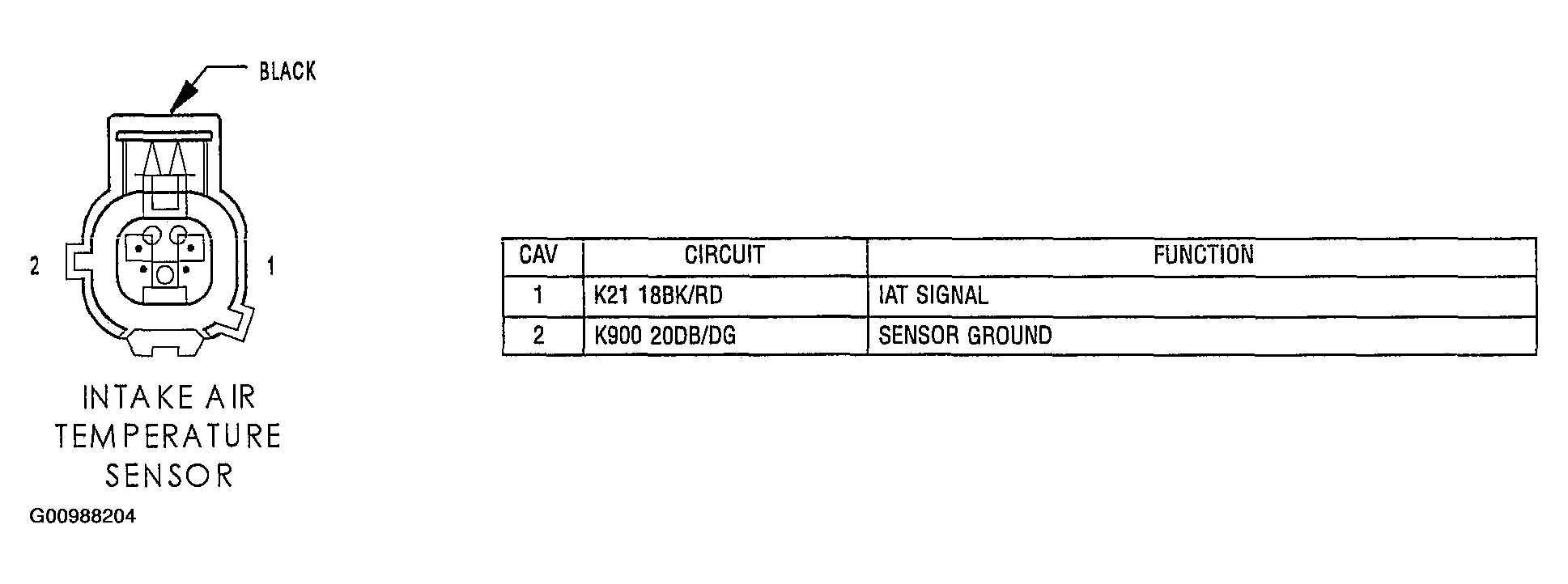

Fig 1: View Of Intake Air Temperature Sensor 2 Way Connector Pinouts And Function Description Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
