Ignition Switch-Black 5 Way

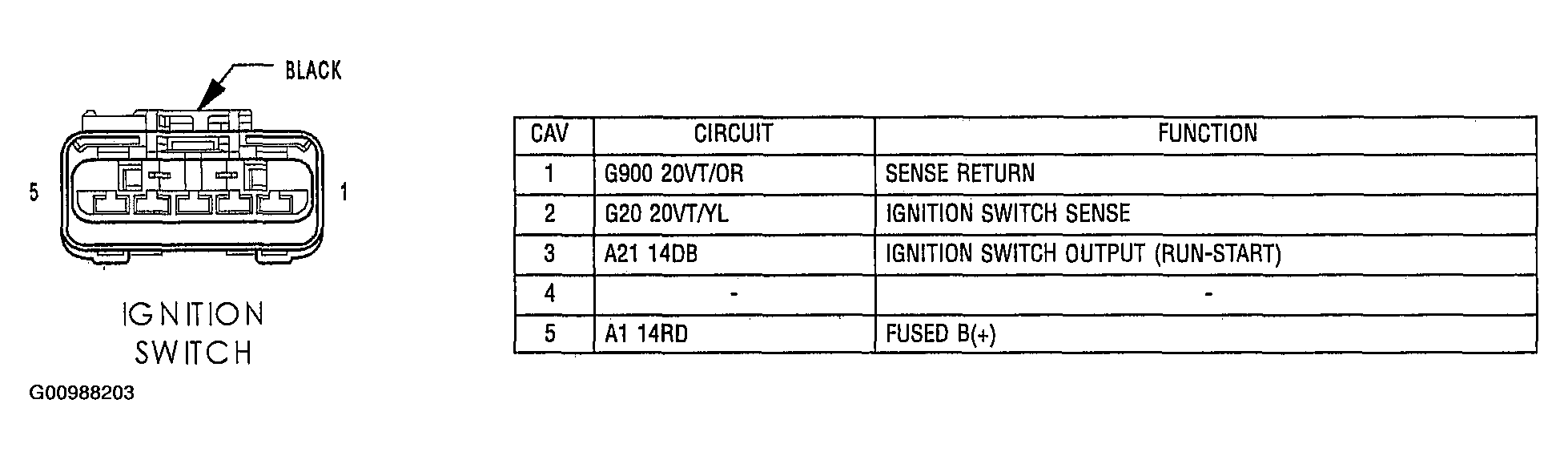

Fig 1: View Of Ignition Switch 5 Way Connector Pinouts And Function Description Chart

G00988203

Courtesy of DAIMLERCHRYSLER CORP.
