Fuel Tank Module - Gray 2 Way

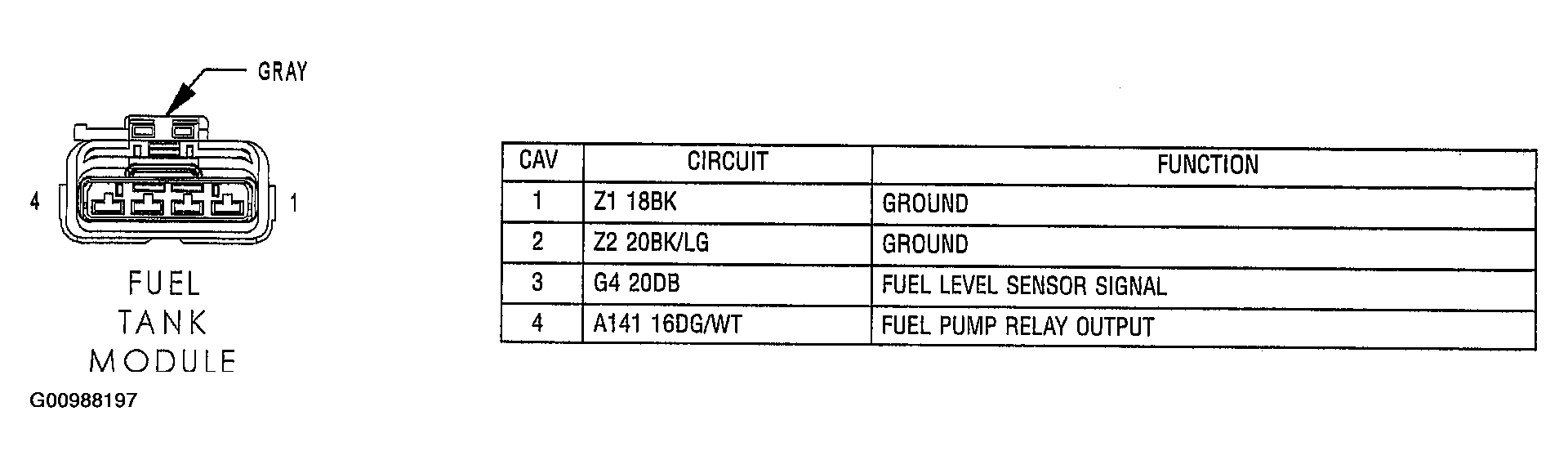

Fig 1: View Of Fuel Tank Module 2 Way Connector Pinouts And Function Description Chart

G00988197

Courtesy of DAIMLERCHRYSLER CORP.
