Data Link Connector - Black 2 Way
Data Link Connector - Black 2 Way

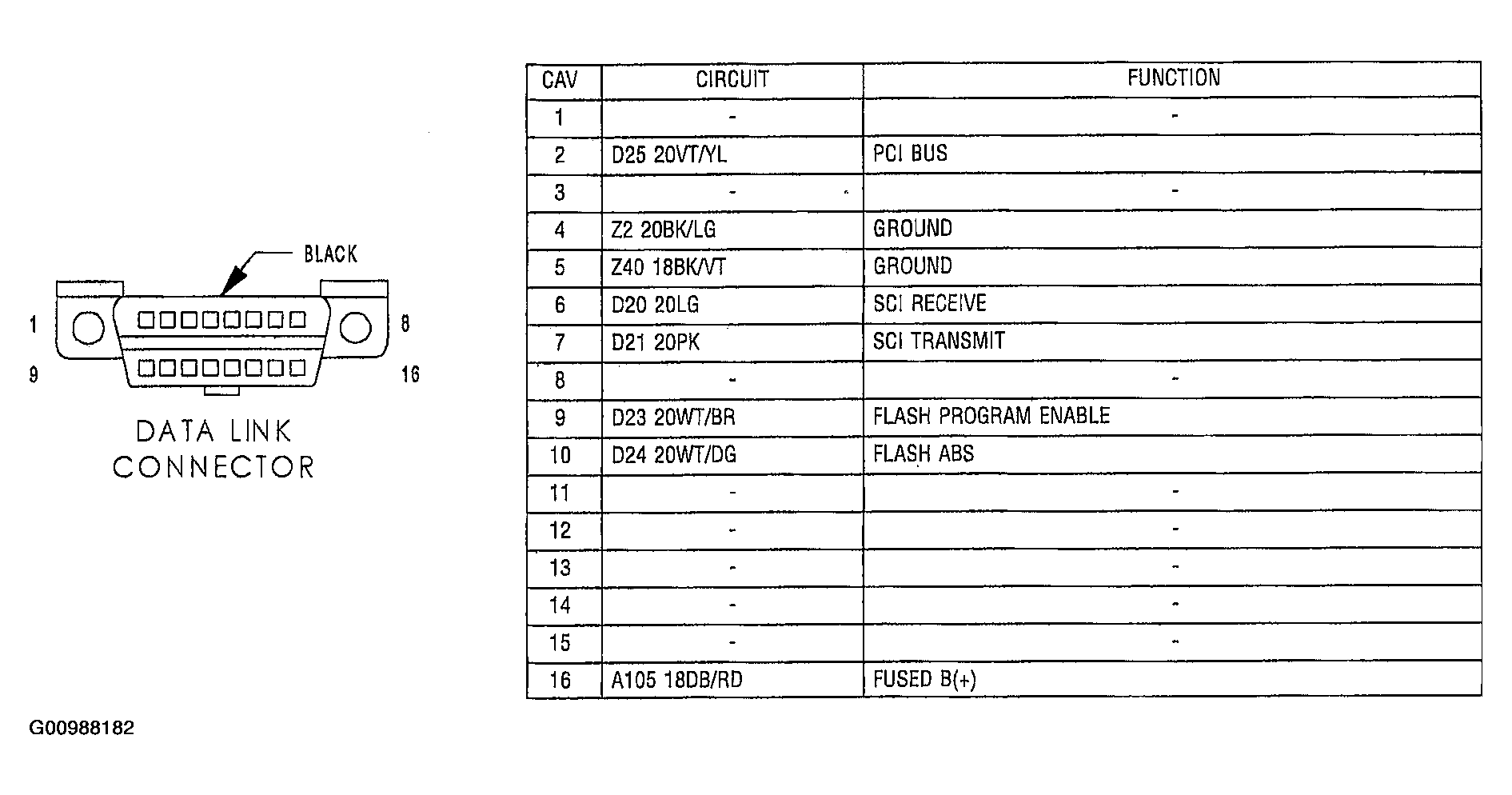

Fig 1: View Of Data Link Connector 2 Way Connector Pinouts And Function Description Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
