Crankshaft Position Sensor - Black 3 Way

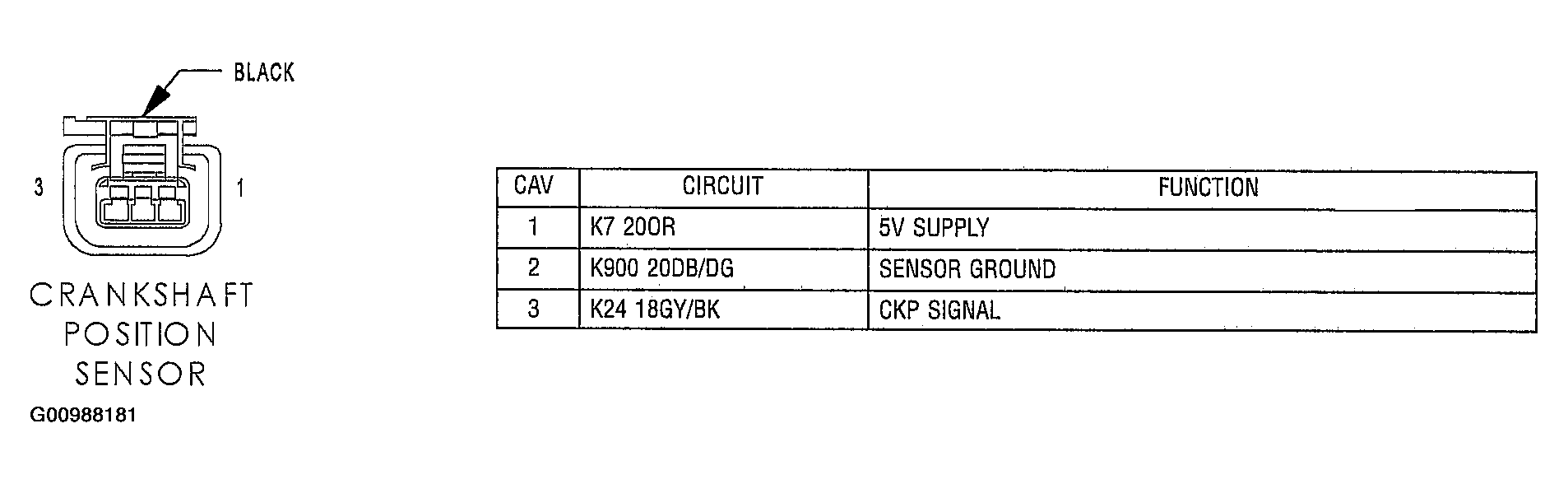

Fig 1: View Of Crankshaft Position Sensor 3 Way Connector Pinouts And Function Description Chart

G00988181

Courtesy of DAIMLERCHRYSLER CORP.
