CLOCKSPRING - White 8 Way
CLOCKSPRING - White 8 Way

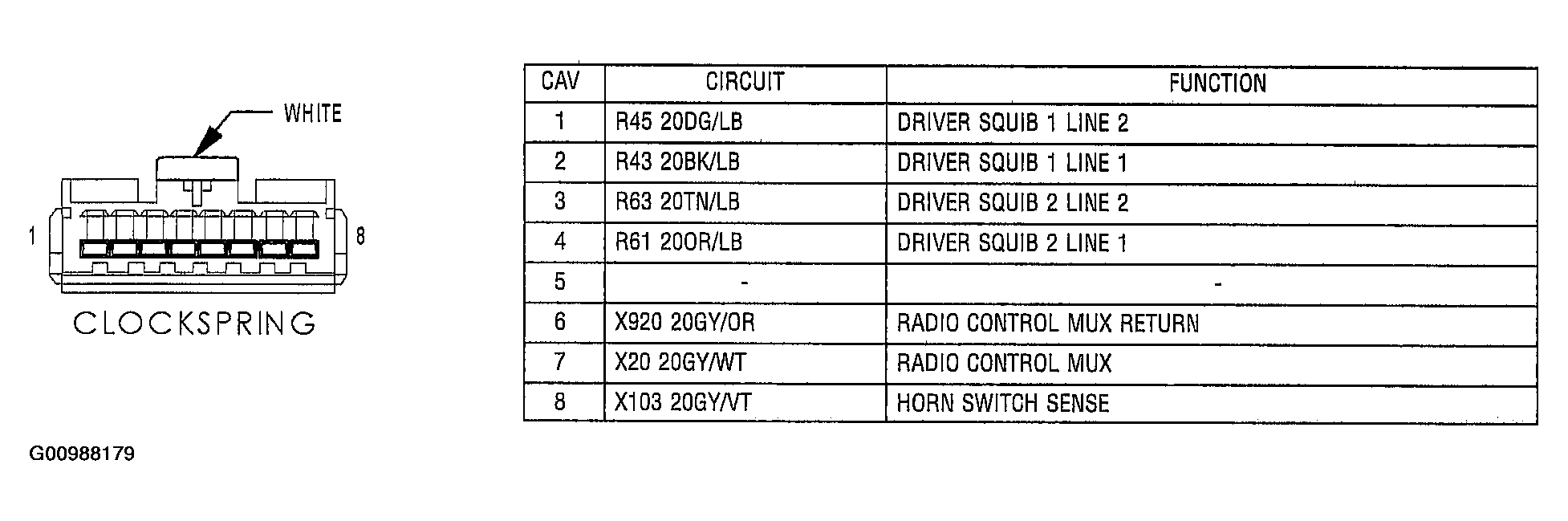

Fig 1: View Of Clockspring 8 Way Connector Pinouts And Function Description Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
