Cam And Crank Sensor Patterns

NOTE: Viper is the 8.0L engine only.

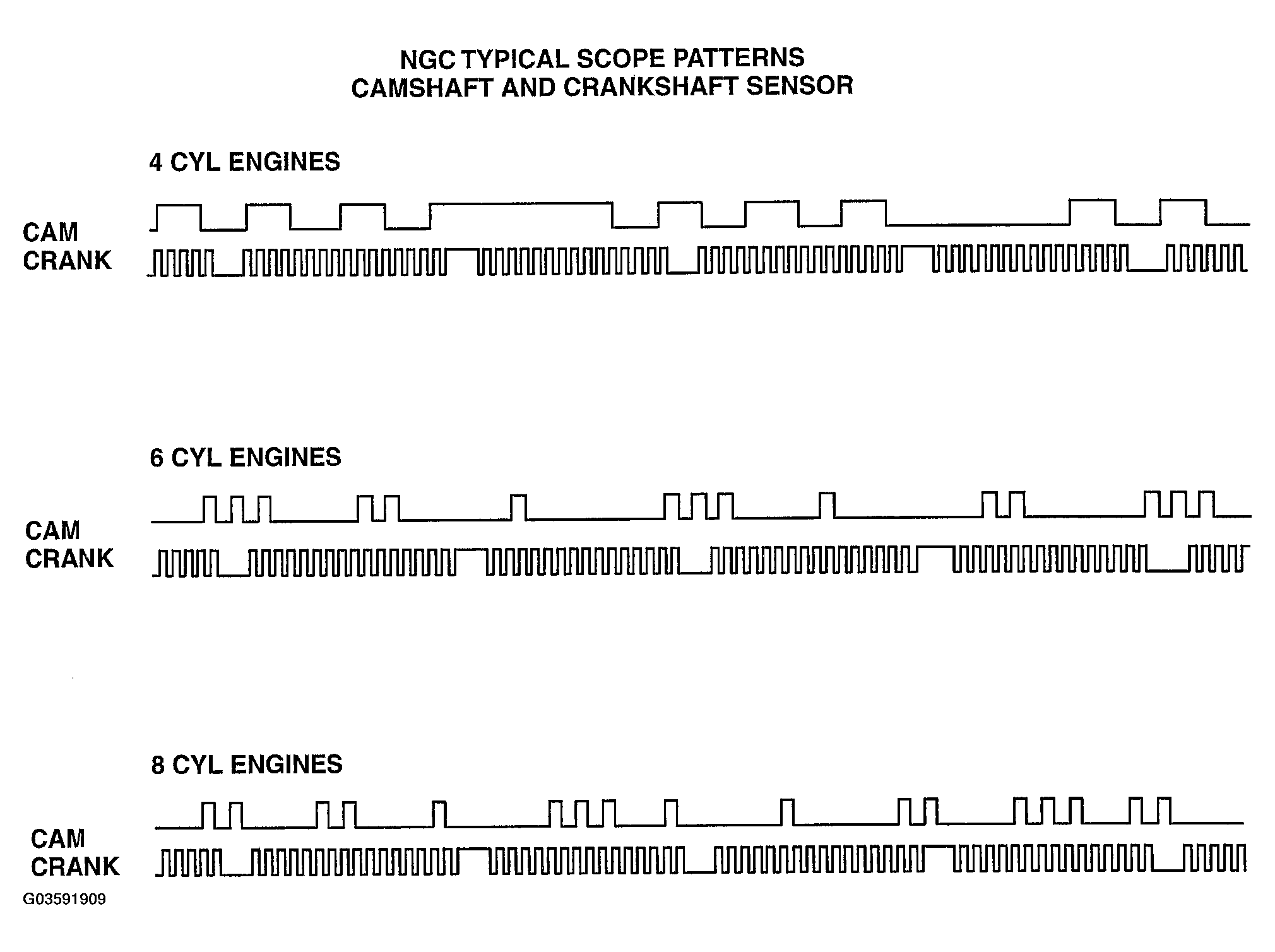

Fig 1: Identifying NGC Cam And Crank Patterns

G03591909

Courtesy of DAIMLERCHRYSLER CORP.
