Inlet Air Temperature Sensor: Removal

NOTE: Take care not to damage the thermister pill when removing the sensor.
  1. Remove the battery cover and disconnect the negative battery cable.
  2. Disconnect the electrical connector from the inlet temperature sensor (Fig 1).
  3. Remove sensor from inlet hose.

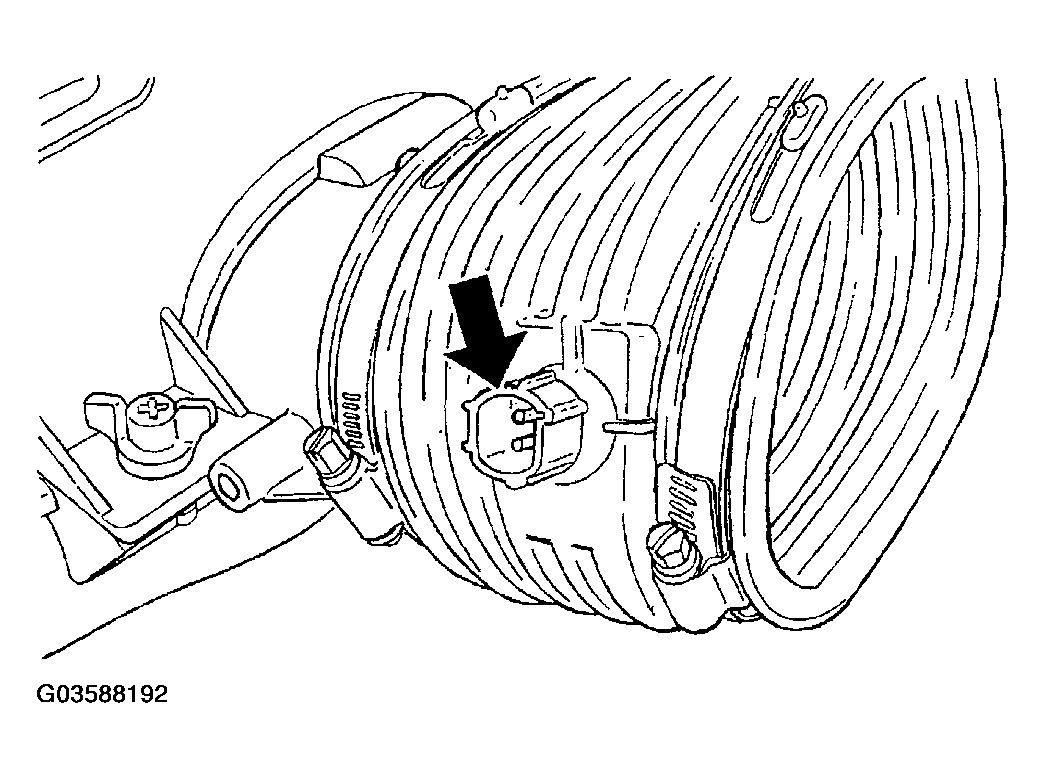

    Fig 1: Disconnecting Inlet Air Temp Sensor
    G03588192Courtesy of DAIMLERCHRYSLER CORP.
