Engine Block: Inspection
The cylinder walls should be checked for out-of-round and taper with Special Tool C-119 (Fig 1 ). If the cylinder walls are badly scuffed or scored, the cylinder bore can be machined oversize. Oversize piston and rings are available.

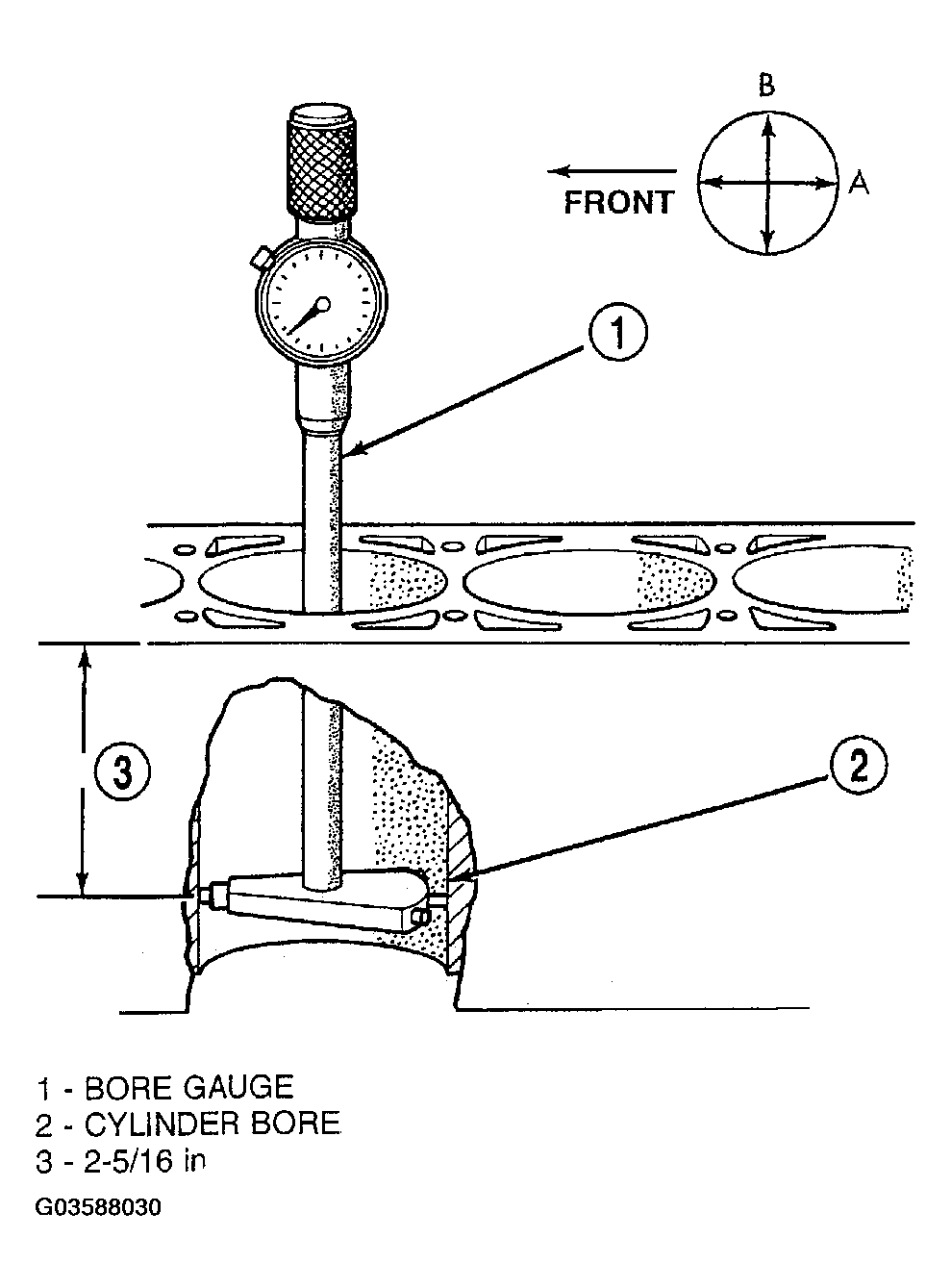

Measure the cylinder bore at three levels in directions A and B (Fig 1 ). Top measurement should be 12 mm (0.50 in.) down and bottom measurement should be 12 mm (0.50 in.) up from bottom of bore. (Refer to SPECIFICATIONS ) for cylinder bore and piston specifications.
