Starter Motor: Installation

  1. Install the starter.
  2. Install the lower bolt.
  3. Install the upper bolt (Fig 1 ).

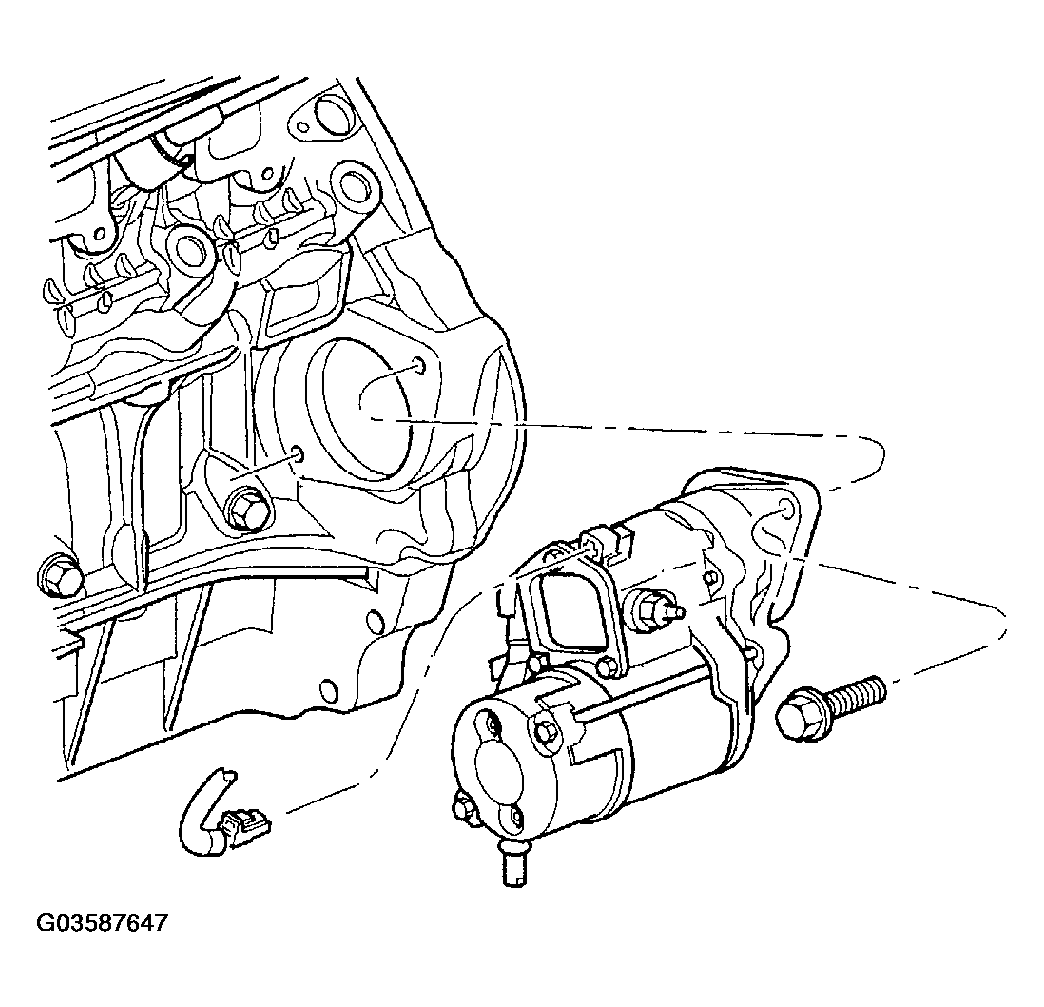

    Fig 1: Locating Upper Bolt For Starter
    G03587647Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the positive battery cable.
  5. Connect the solenoid connector.
  6. Lower vehicle.

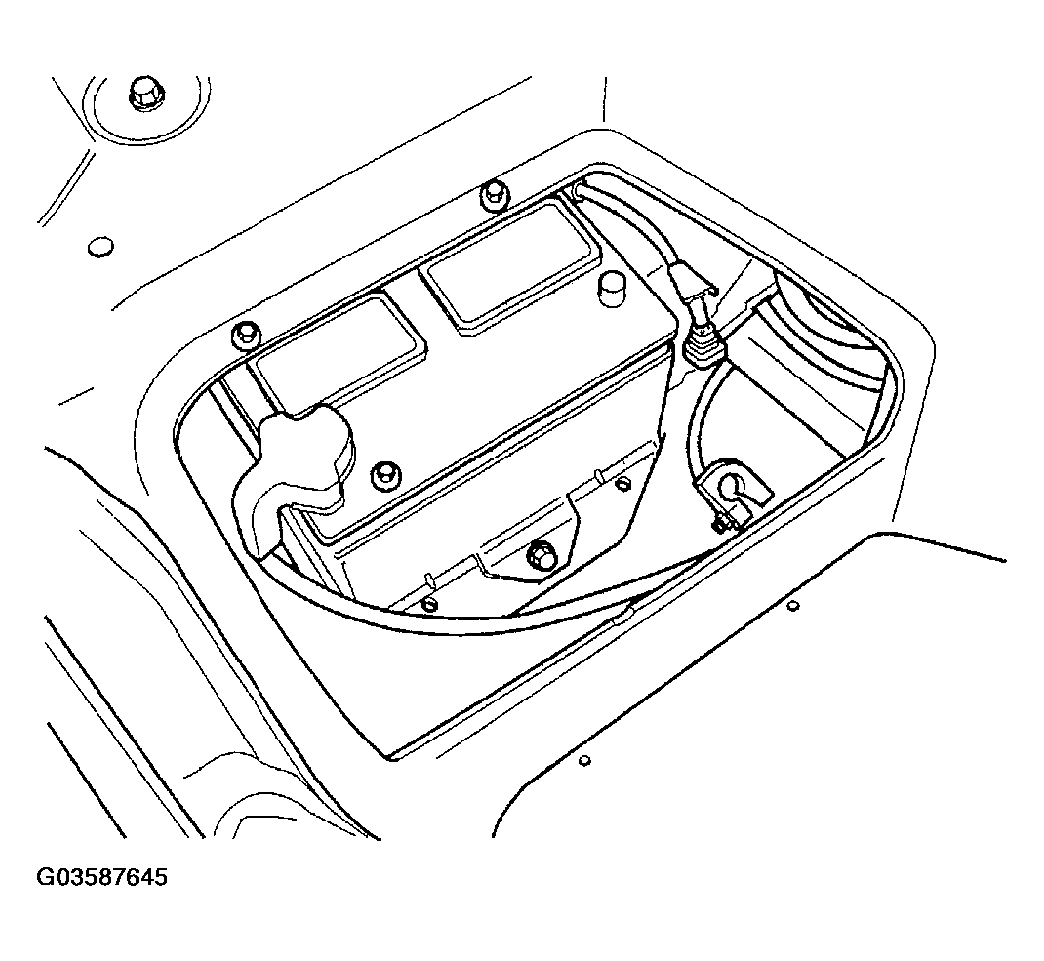

  7. Connect the negative battery cable (Figure ).
