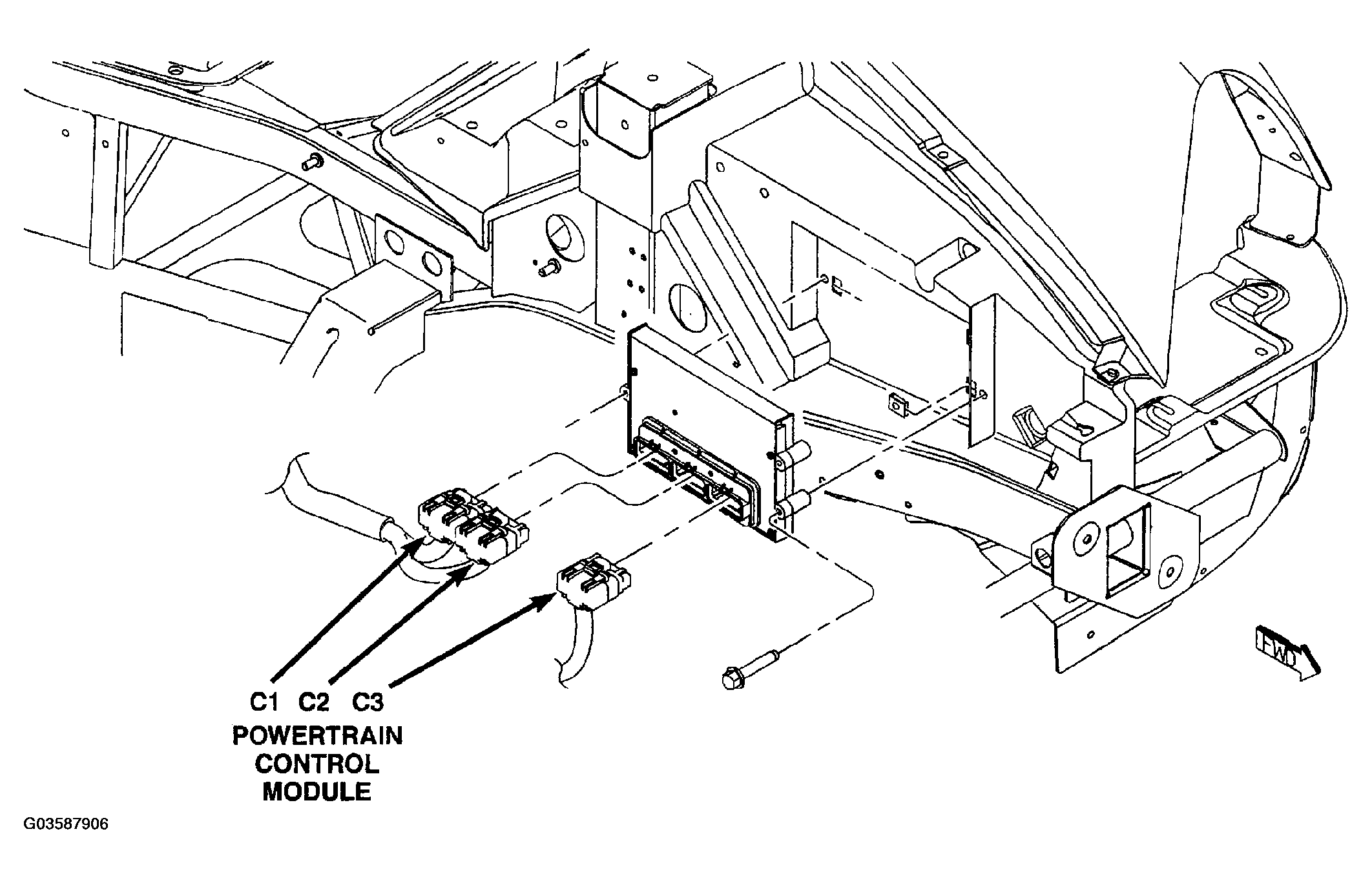

Connector/Ground/Splice Location: Description: Splices

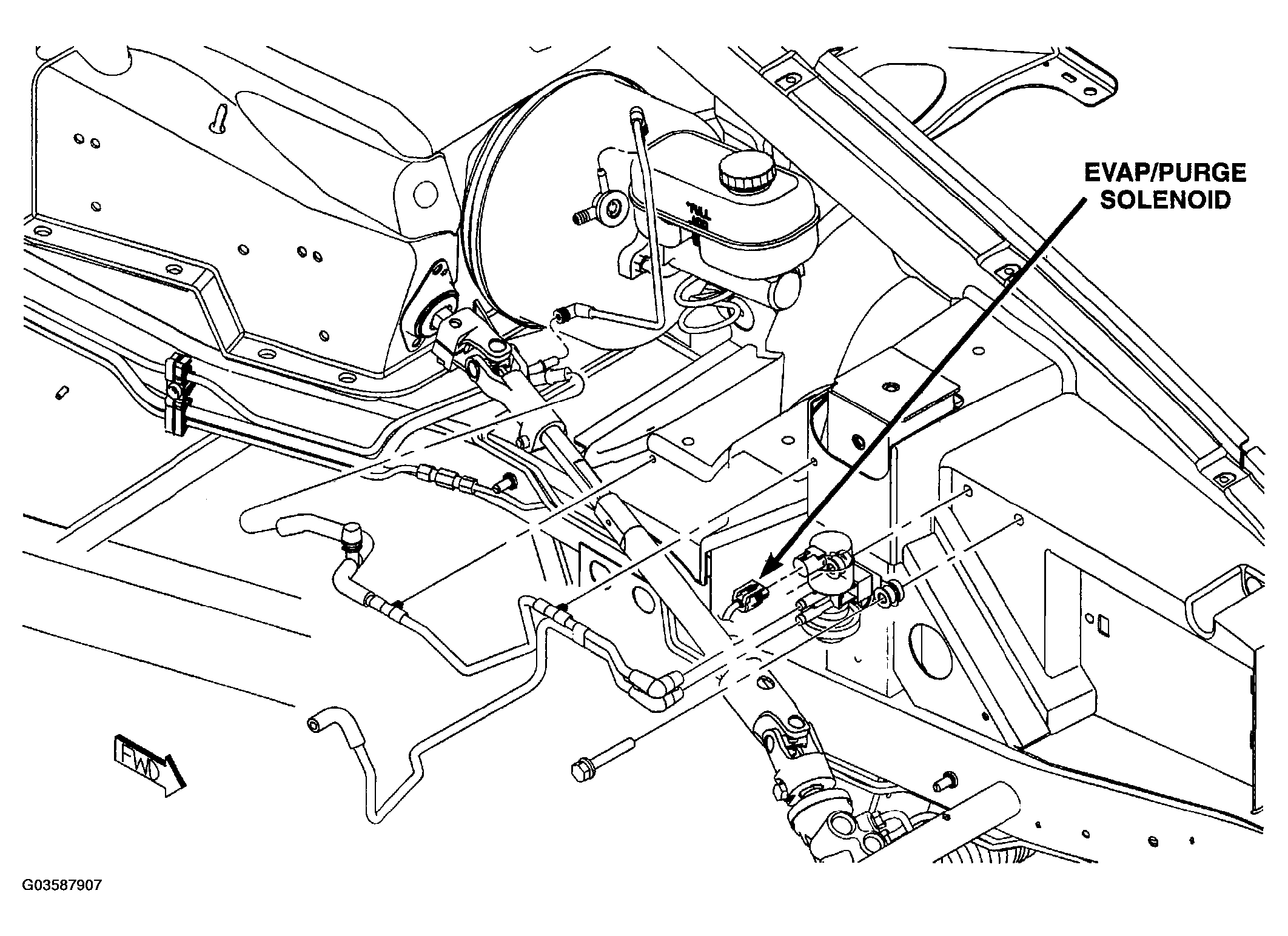

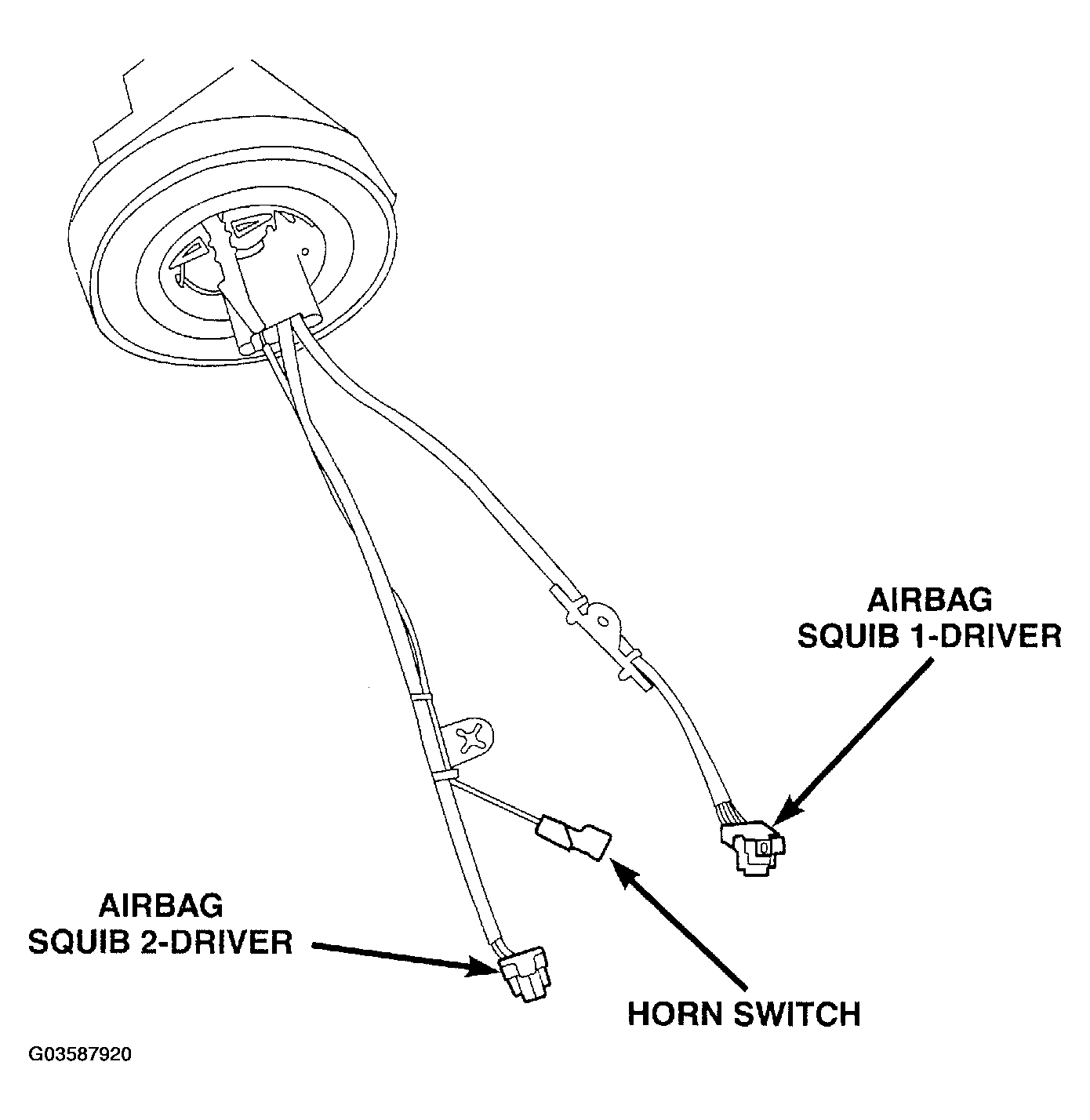

SPLICE LOCATIONS
| Splice No. | Location | Fig. |
|---|---|---|
| S100 | Near T/O for Wheel Speed Sensor - Right Front | Fig 4 |

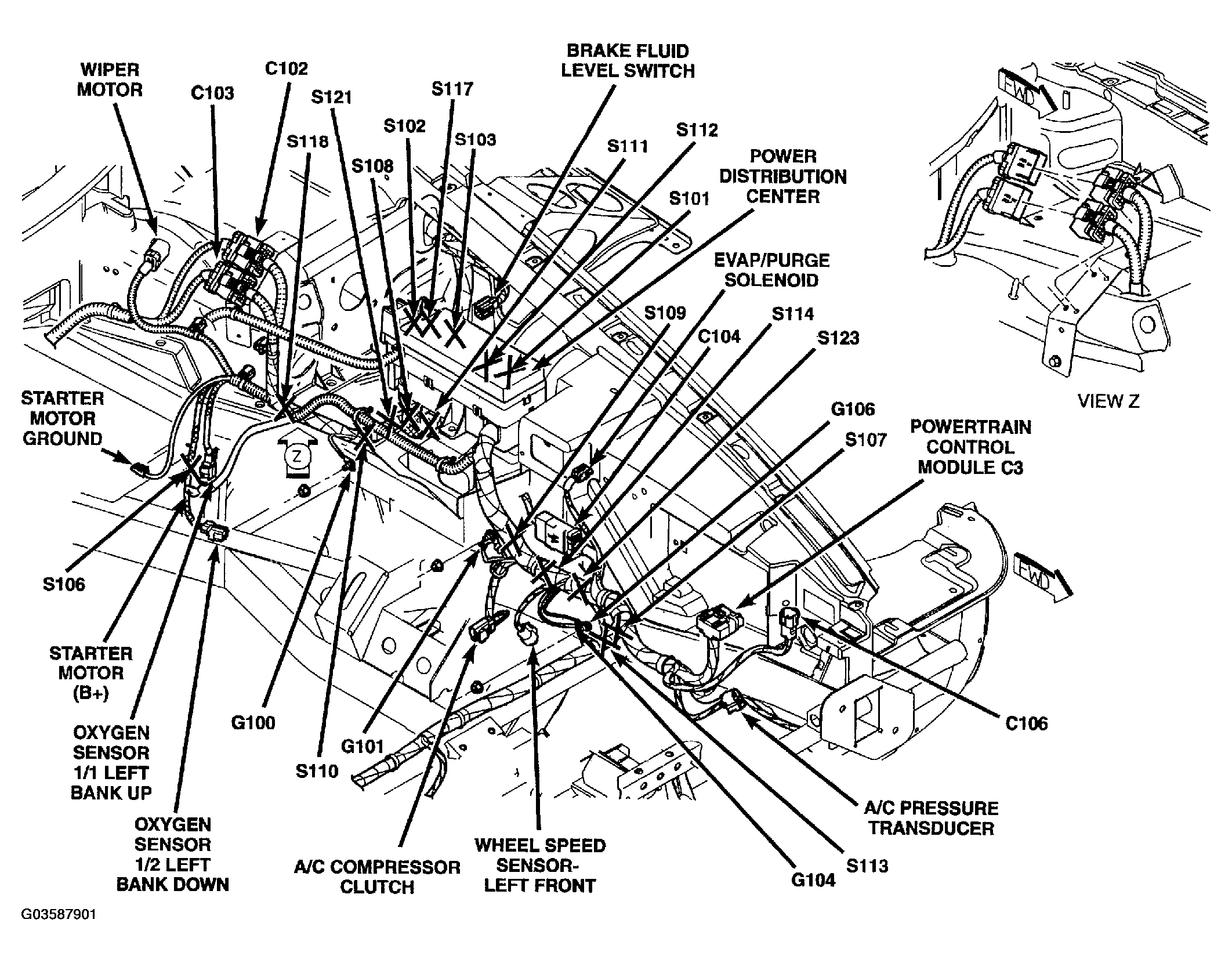

| S101 | In Power Distribution Center | Fig 1 |
| S102 | In Power Distribution Center | Fig 1 |
| S103 | In Power Distribution Center | Fig 1 |

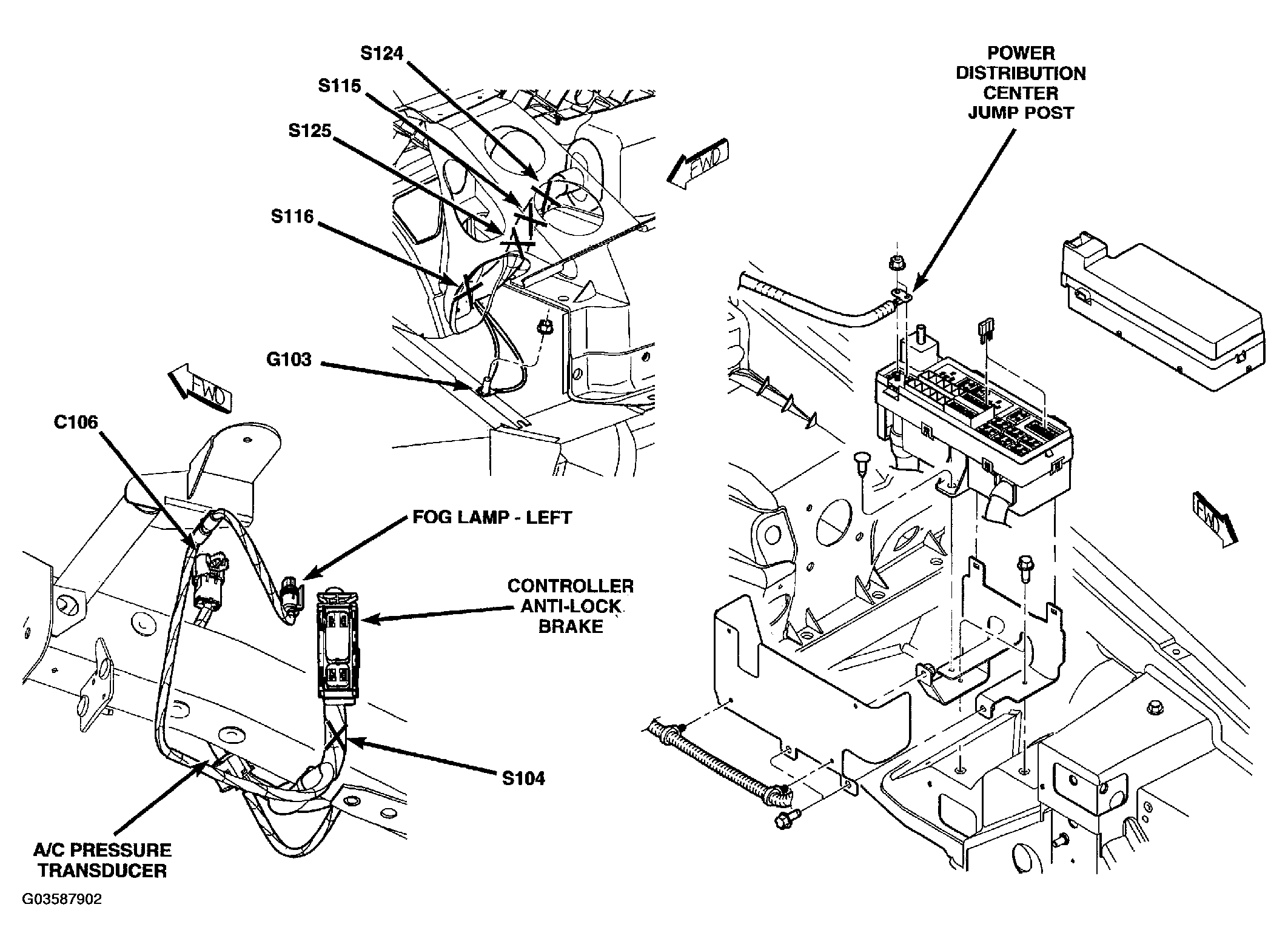

| S104 | In T/O for Controller Antilock Brake | Fig 2 |
| S106 | In T/O for Oxygen Sensor 1/2 Left Bank Down | Fig 1 |
| S107 | Near T/O for Controller Antilock Brake | Fig 1 |
| S108 | Near Power Distribution Center | Fig 1 |
| S109 | Near T/O for G101 | Fig 1 |
| S110 | Near T/O for G100 | Fig 1 |
| S111 | Near Power Distribution Center | Fig 1 |
| S112 | In Power Distribution Center | Fig 1 |
| S113 | Near T/O for Controller Antilock Brake | Fig 1 |
| S114 | Between T/O for G101 and T/O for G104 and G106 | Fig 1 |
| S115 | Near T/O for G103 | Fig 2 |
| S116 | Near T/O for G103 | Fig 2 |
| S117 | In Power Distribution Center | Fig 1 |
| S118 | Near T/O for C102 and C103 | Fig 1 |

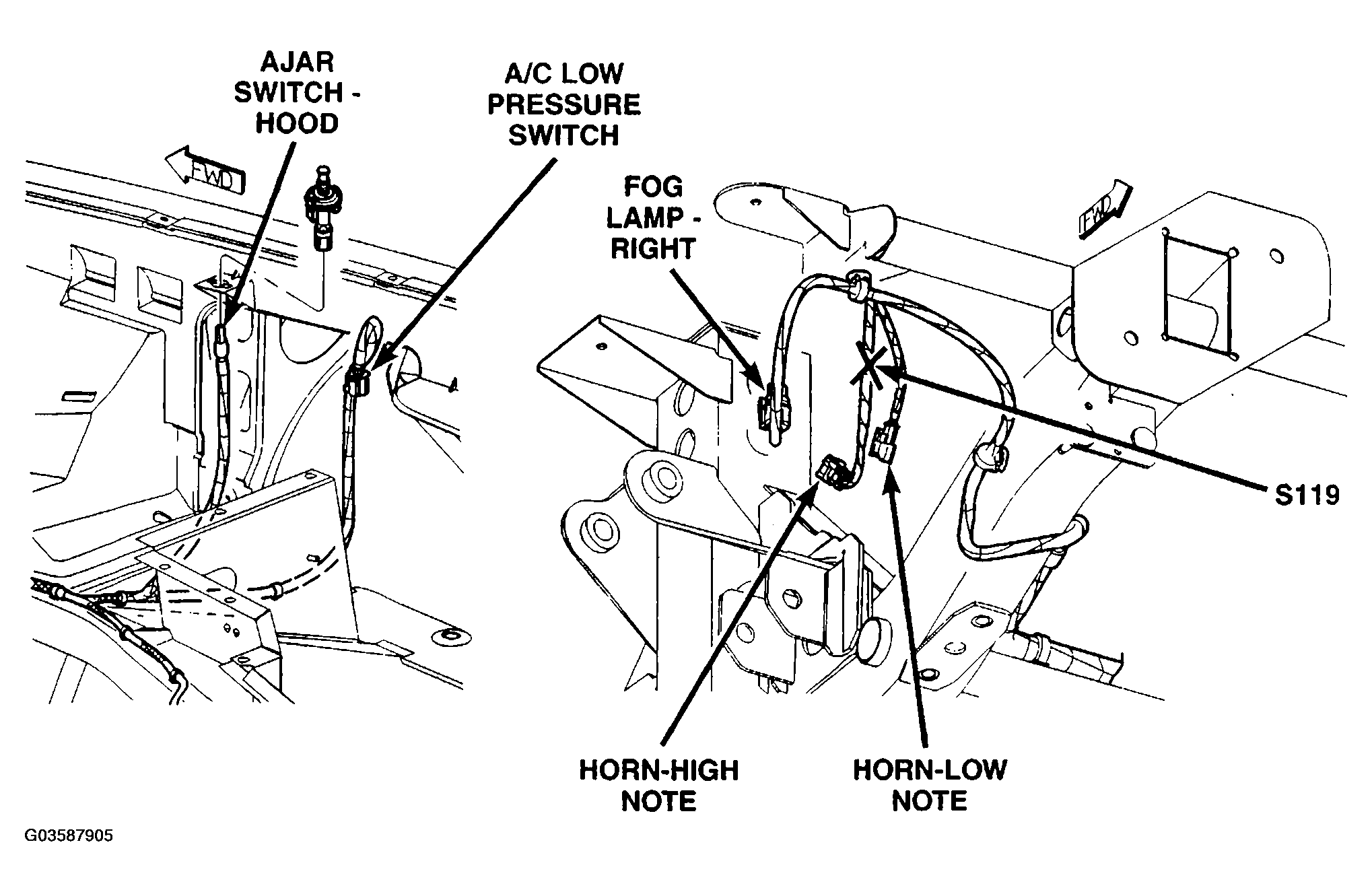

| S119 | In T/O for High Note Horn | Fig 4 |
| S120 | In T/O for High Note Horn | Fig 4 |
| S121 | Near T/O for Low Note Horn | Fig 1 |
| S122 | Near T/O for Washer Pump Motor | Fig 4 |
| S123 | Near T/O for C104 | Fig 1 |
| S124 | Near T/O for G103 | Fig 2 |
| S125 | Near T/O for G103 | Fig 2 |

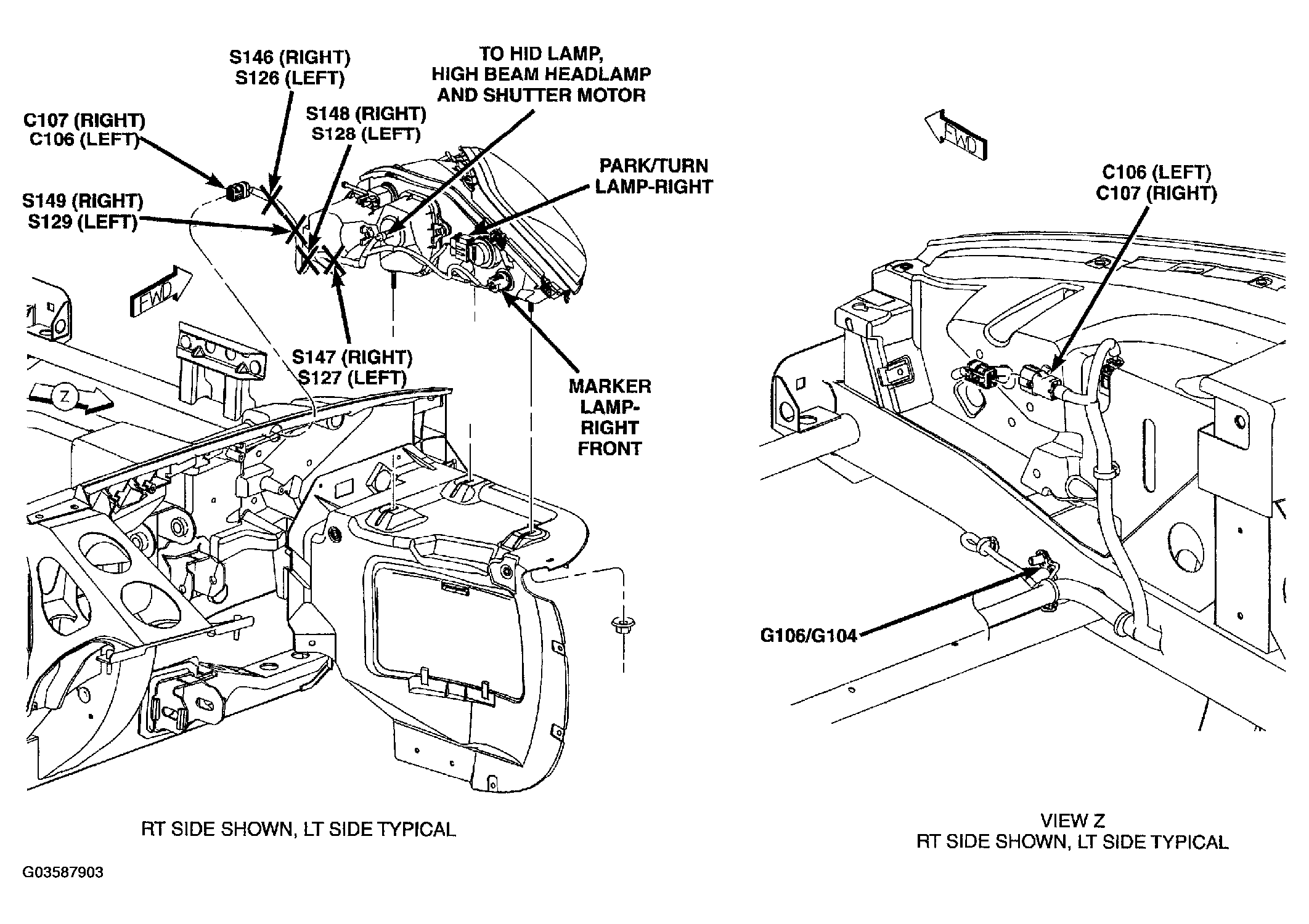

| S126 | Near T/O for Park/Turn Lamp Left | Fig 3 |
| S127 | Near T/O for Park/Turn Lamp Left | Fig 3 |
| S128 | Near T/O for Park/Turn Lamp Left | Fig 3 |
| S129 | Near T/O for Park/Turn Lamp Left | Fig 3 |

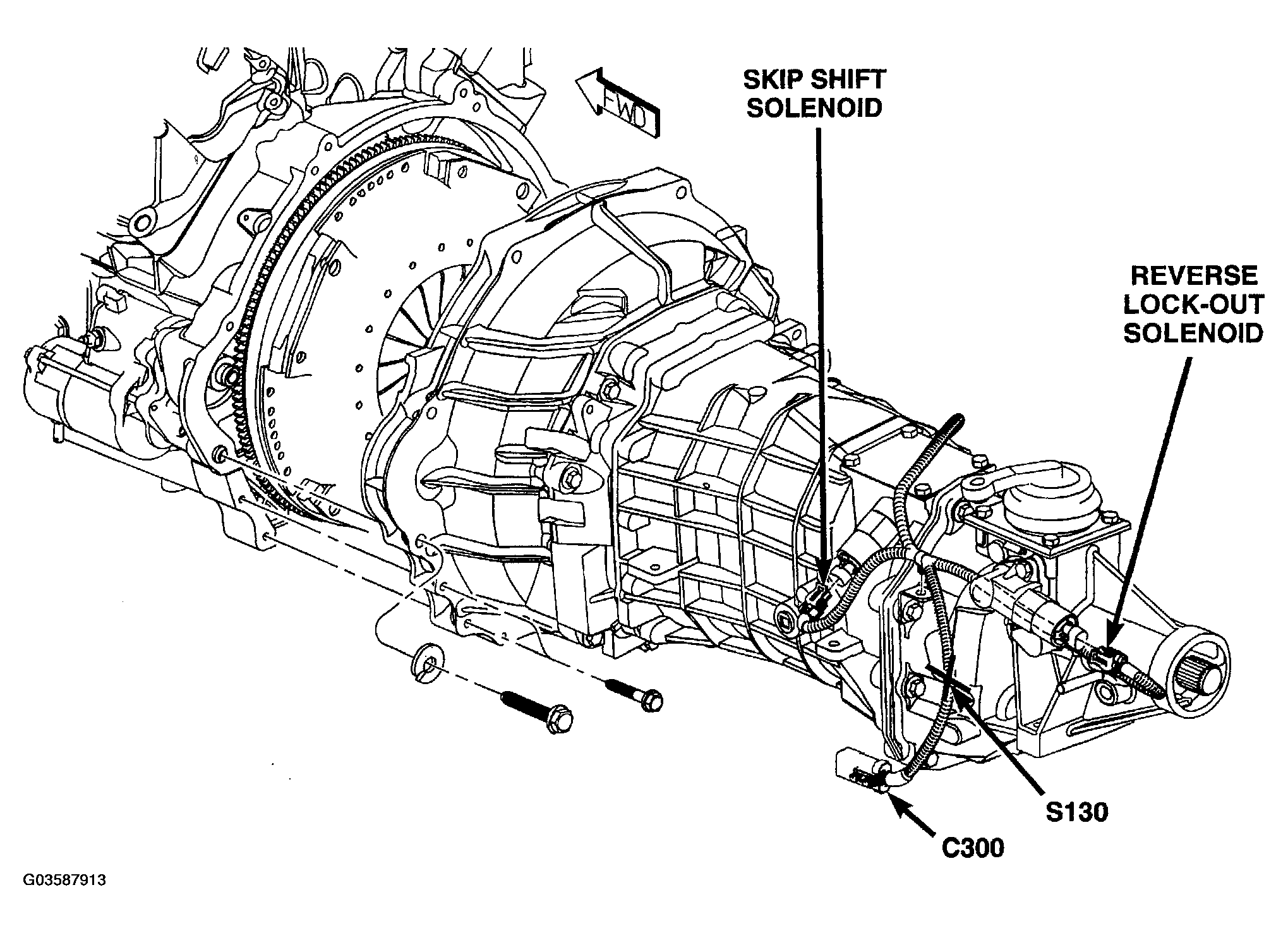

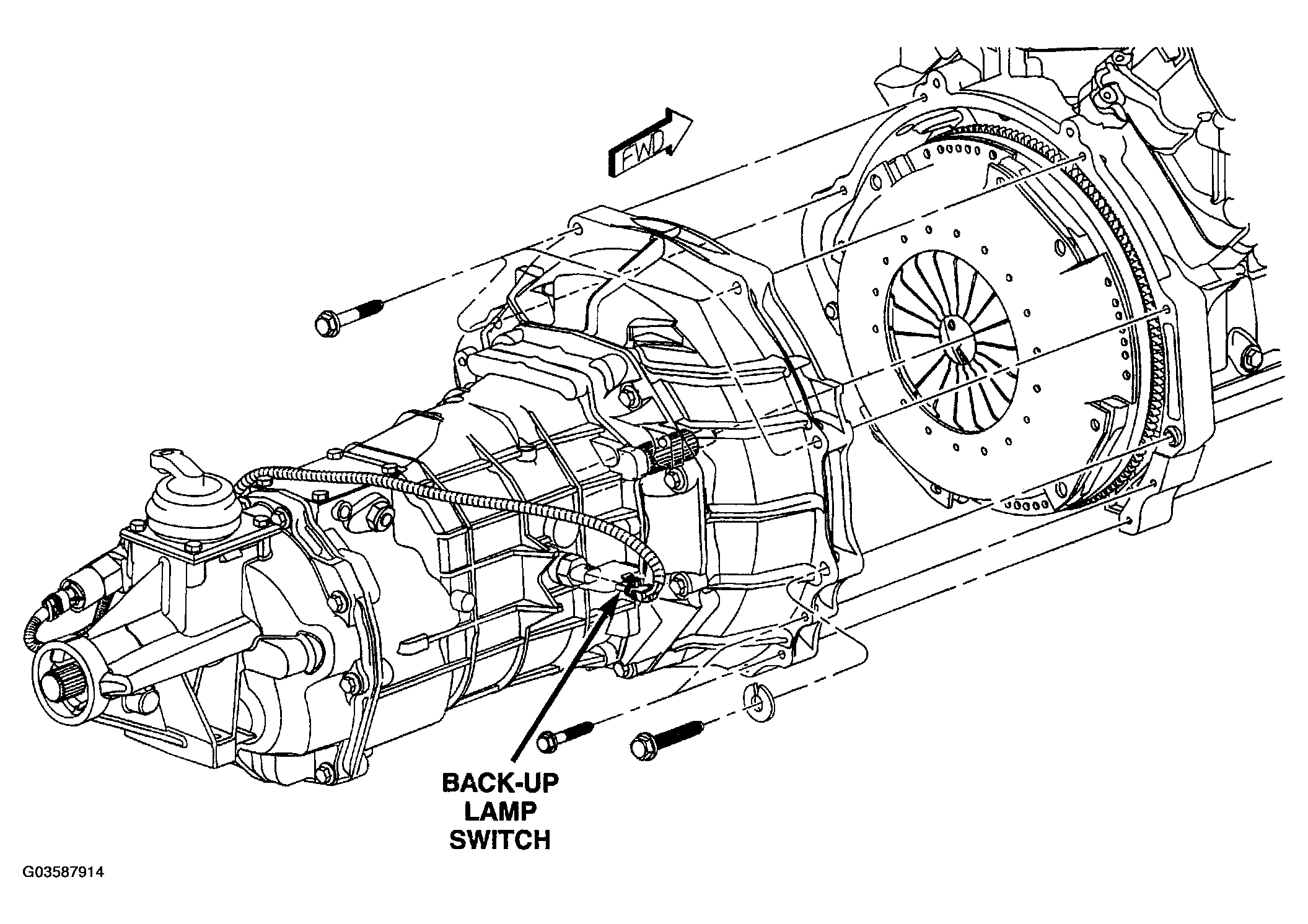

| S130 | Near T/O for Skip Shift Solenoid | Fig 13 |
| S131 | Near T/O for Camshaft Position Sensor | N/S |

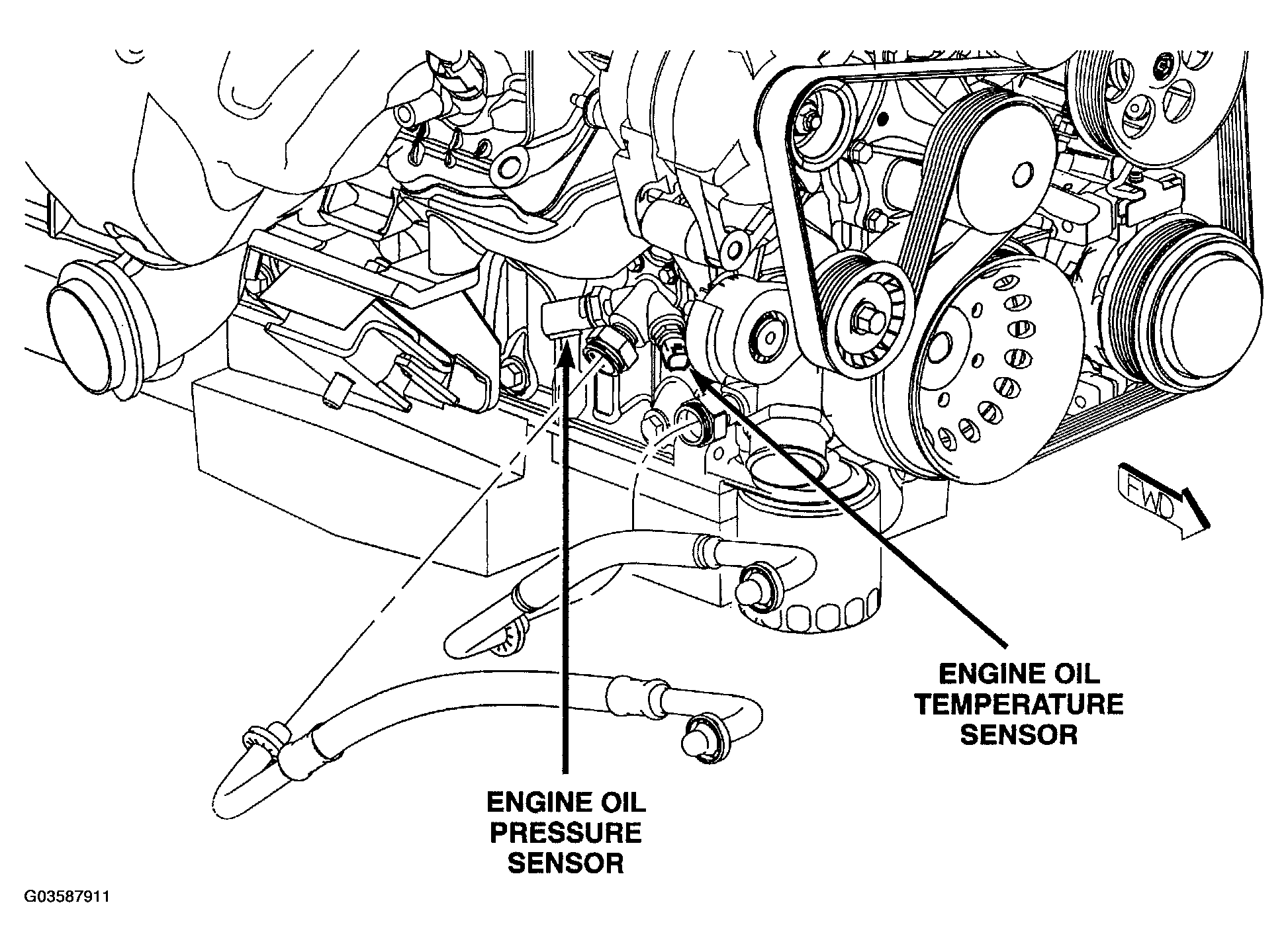

| S132 | Near T/O for Oil Temperature Sensor | N/S |

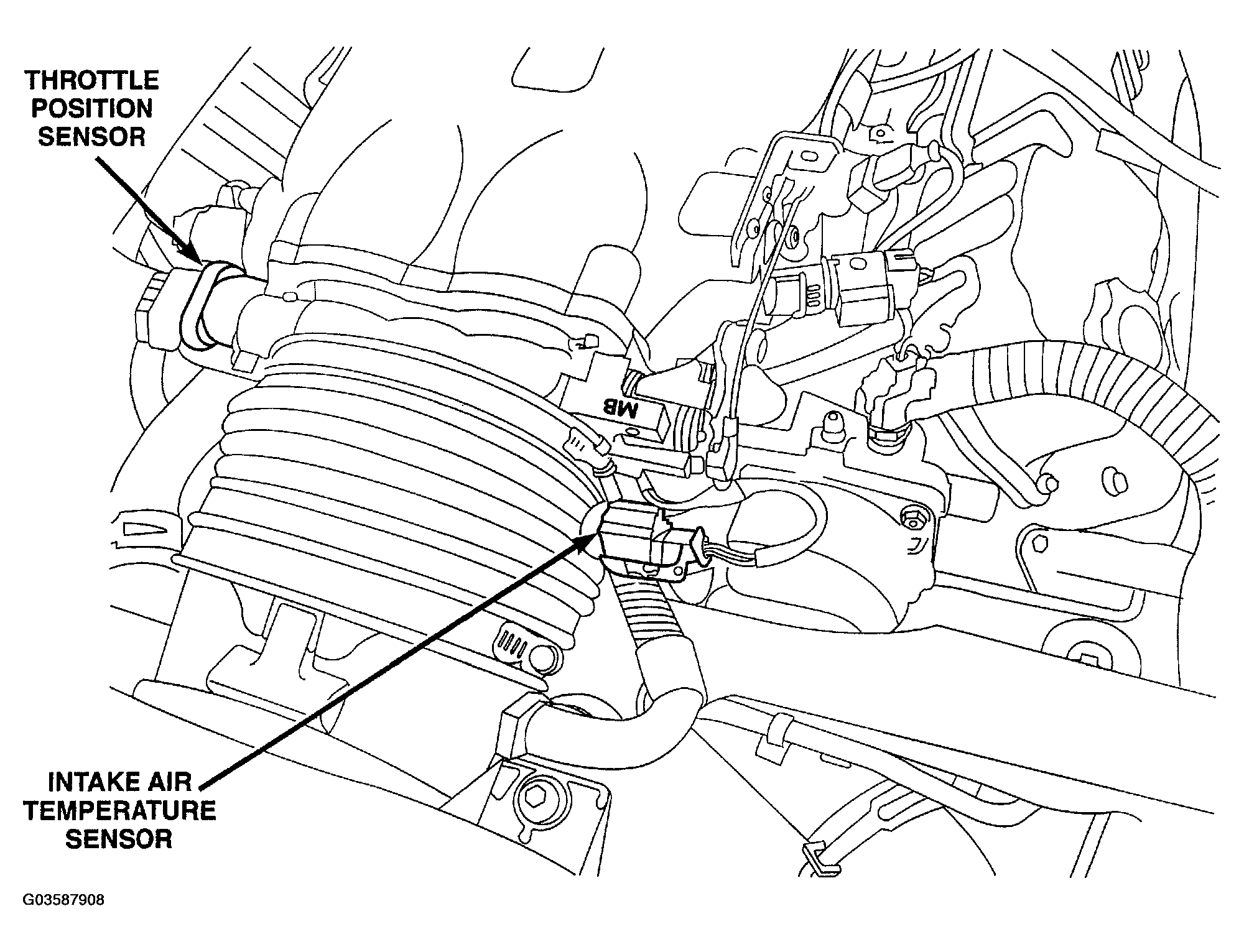

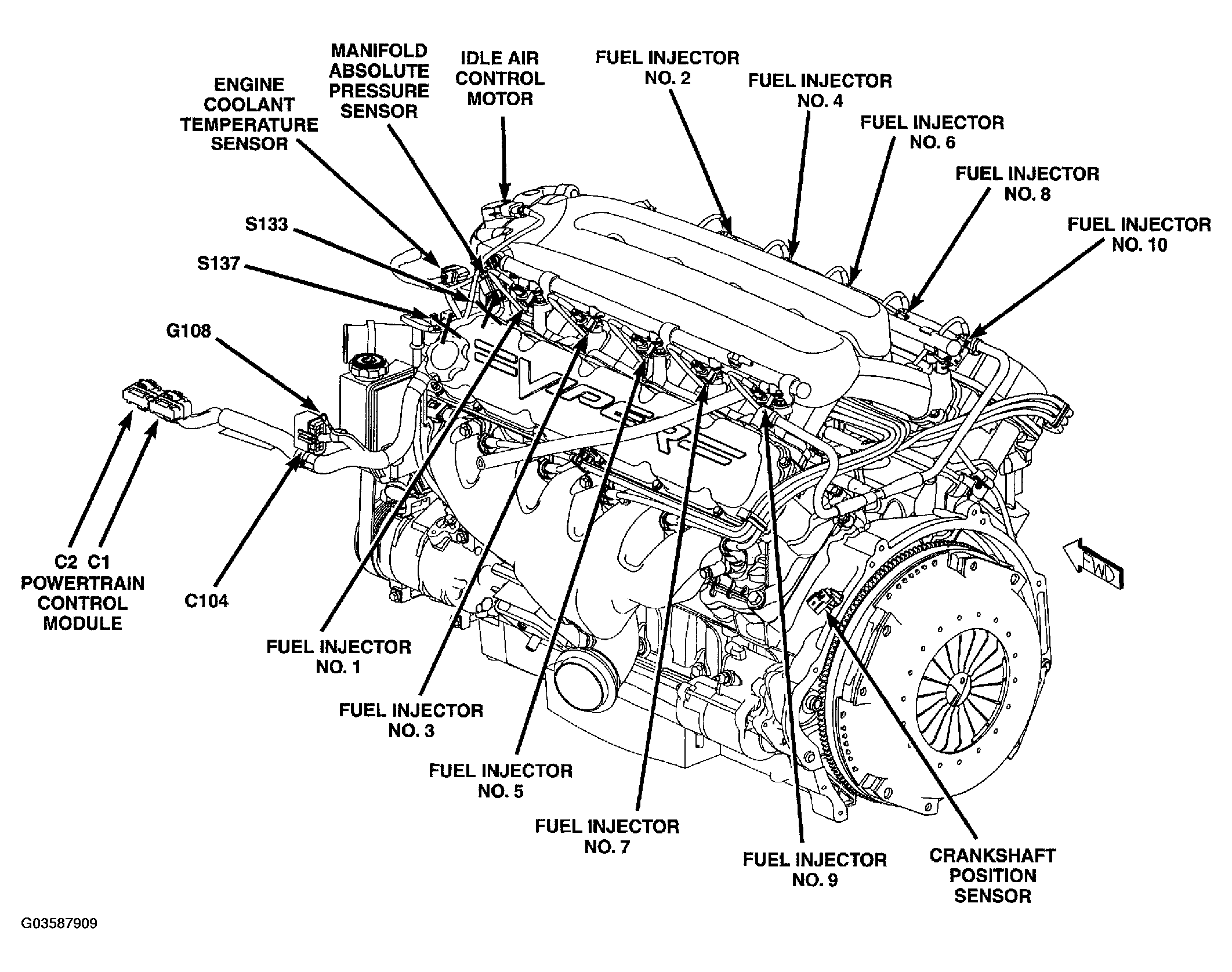

| S133 | Near T/O for Intake Air Temperature Sensor | Fig 9 |
| S134 | Near T/O for Fuel Injector No. 2 | N/S |
| S135 | Near T/O for Fuel Injector No. 3 | N/S |
| S137 | Near T/O for Manifold Absolute Pressure Sensor | Fig 9 |

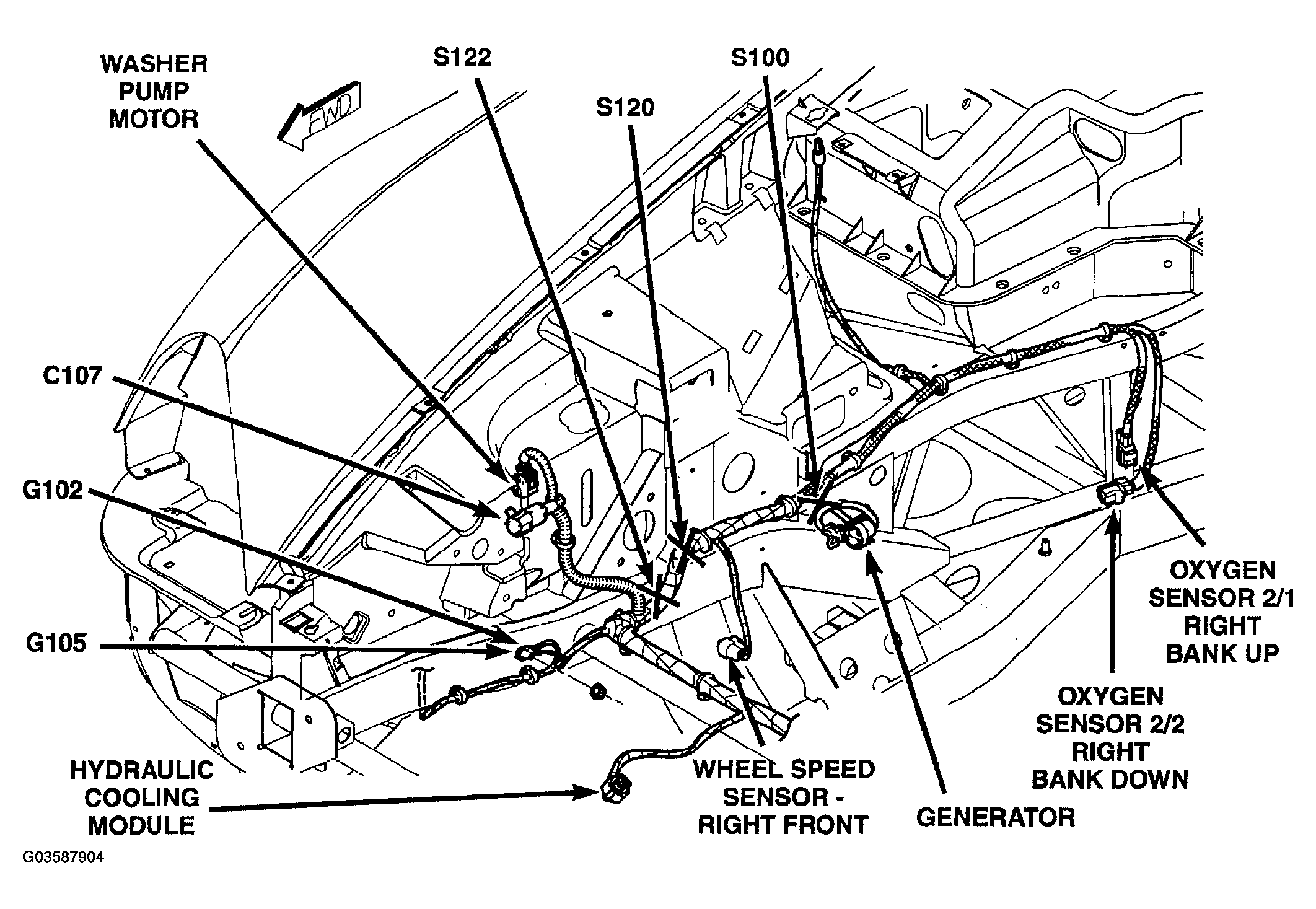

| S146 | Near T/O for Park/Turn Lamp - Right | Fig 3 |
| S147 | Near T/O for Park/Turn Lamp - Right | Fig 3 |
| S148 | Near T/O for Park/Turn Lamp - Right | Fig 3 |
| S149 | Near T/O for Park/Turn Lamp - Right | Fig 3 |
| S200 | Near T/O for G201 | Fig 19 |
| S201 | Near T/O for Low Tire Pressure Warning Module | Fig 18 |
| S202 | Near T/O for Data Link Connector | Fig 17 |
| S203 | Near T/O for Brake Lamp Switch | Fig 17 , Fig 18 |
| S204 | In T/O for Window Up Relay - Passenger | Fig 17 , Fig 18 |
| S205 | Near T/O for Low Tire Pressure Warning Module | N/S |

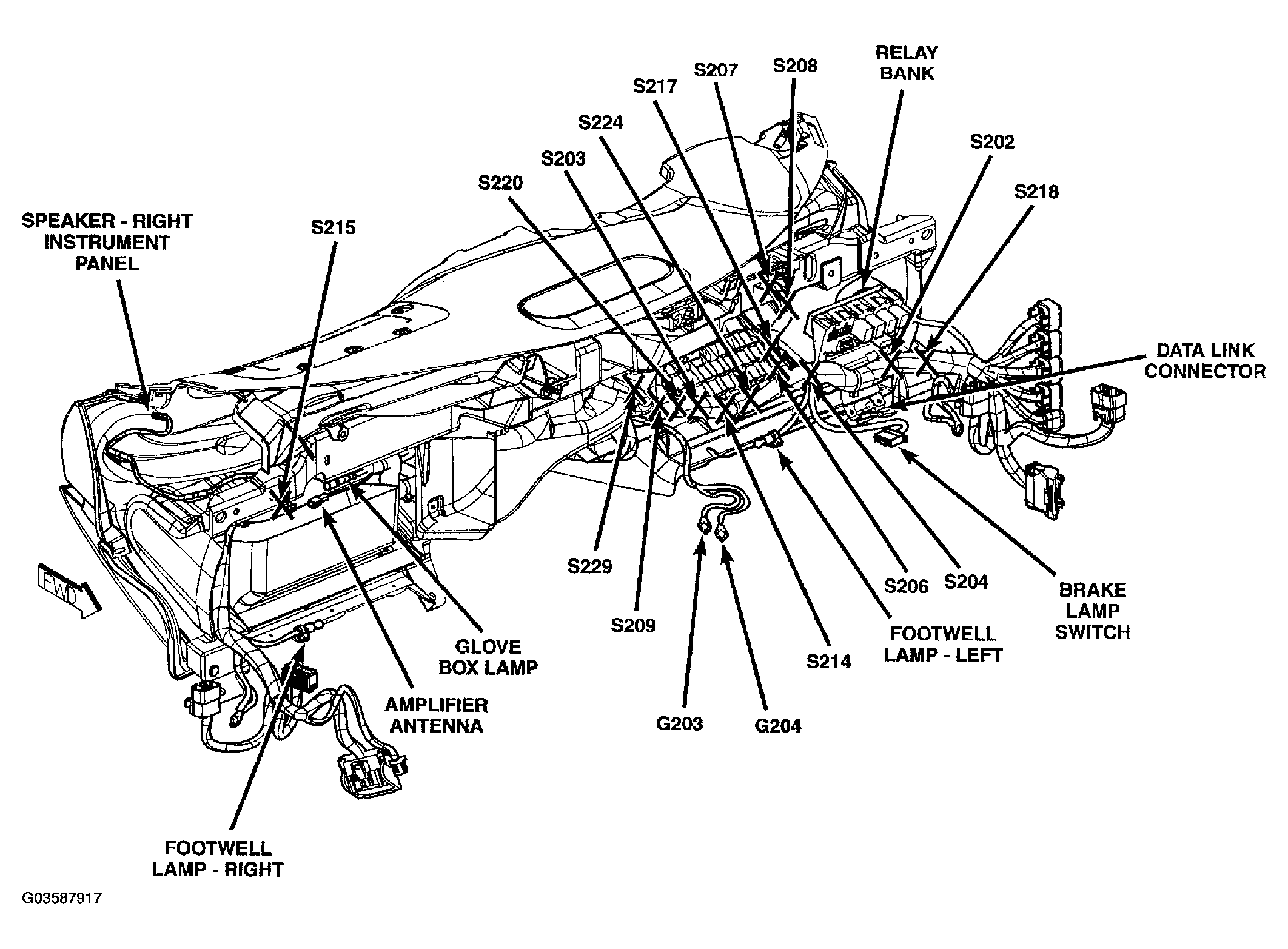

| S206 | Near T/O for Instrument Cluster C2 | Fig 17 |
| S207 | Near T/O for Instrument Cluster C2 | Fig 17 |
| S208 | Near T/O for Instrument Cluster C2 | Fig 17 |
| S209 | Near T/O for Airbag Control Module (ORC) C2 | Fig 17 |
| S210 | Near T/O for Center Console | N/S |

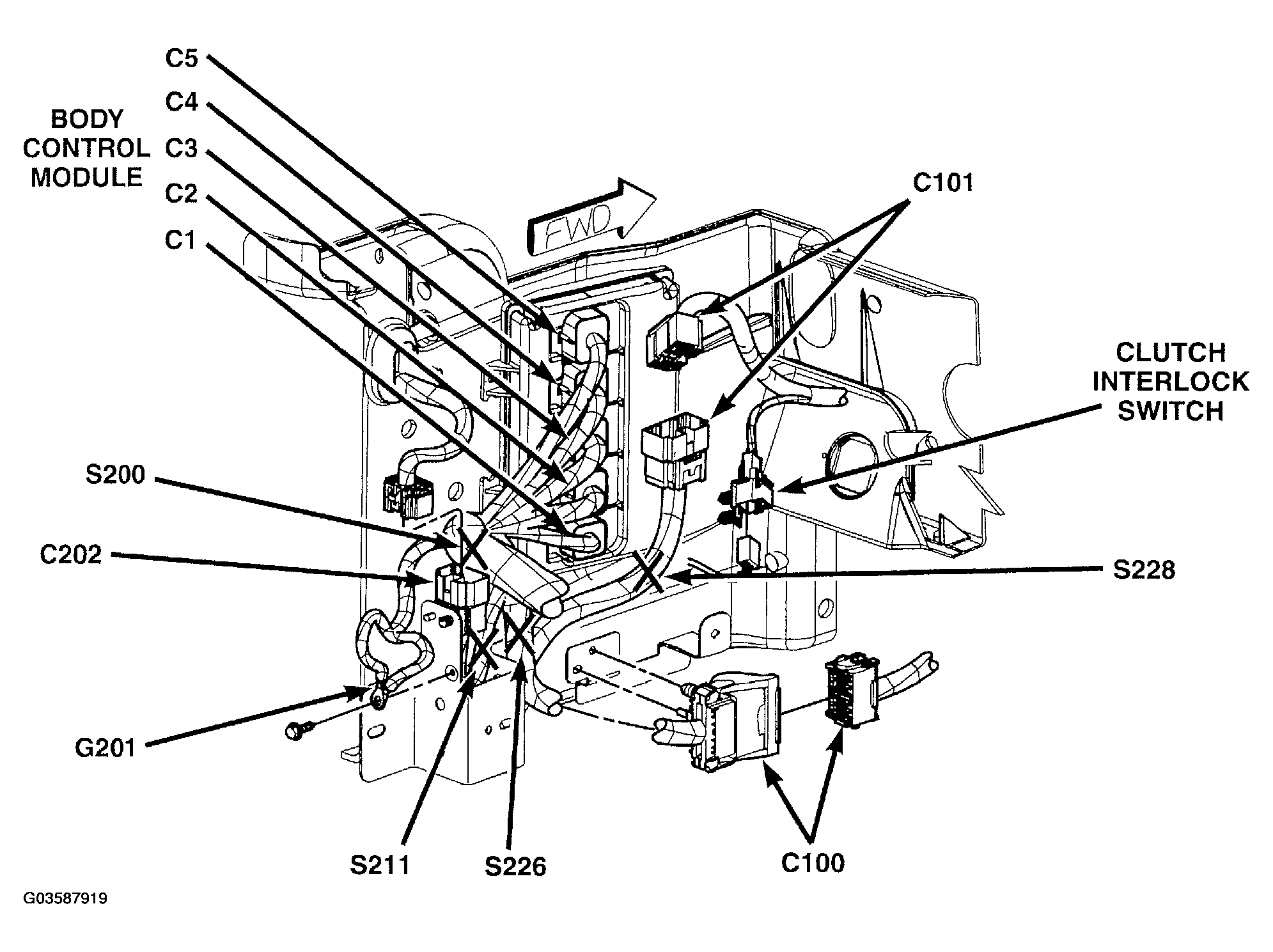

| S211 | Left Kick Panel | Fig 19 |
| S212 | Near T/O for Glove Box Lamp | N/S |
| S213 | In T/O for Radio | N/S |
| S214 | Near T/O for Brake Lamp Switch | Fig 17 , Fig 18 |
| S215 | Near T/O for Glove Box Lamp | Fig 17 |

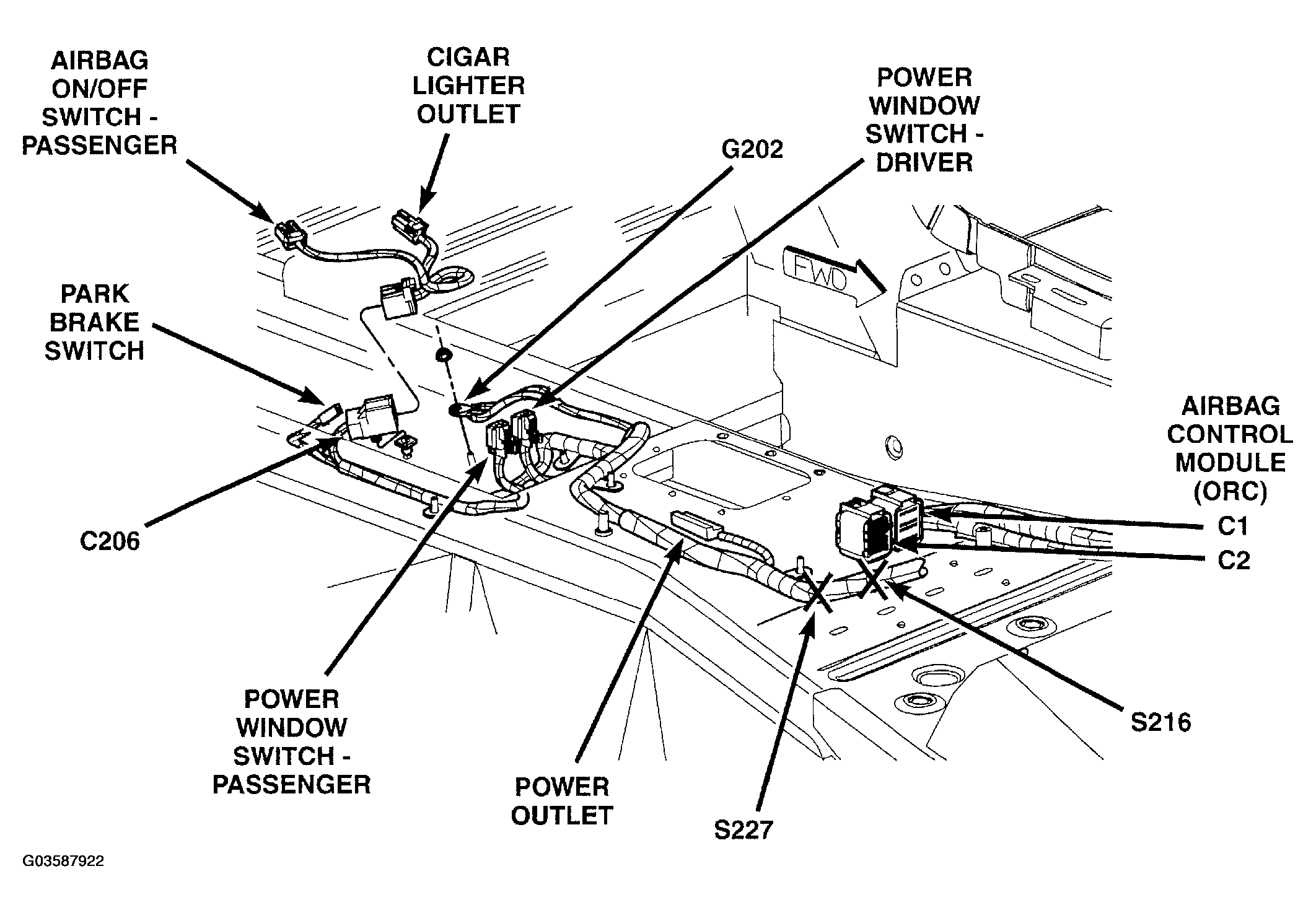

| S216 | Near T/O for Power Outlet | Fig 22 |
| S217 | Near T/O for Instrument Cluster C2 | Fig 17 |
| S218 | Near T/O for Data Link Connector | Fig 17 |
| S220 | In T/O for Window Down Relay - Passenger | Fig 17 , Fig 18 |
| S221 | In T/O for Adjustable Pedal Switch | Fig 18 |
| S224 | Near T/O for Brake Lamp Switch | Fig 17 , Fig 18 |
| S226 | Near T/O for C101 | Fig 19 |
| S227 | Near T/O for Power Outlet | Fig 22 |
| S228 | In T/O for C101 | Fig 19 |

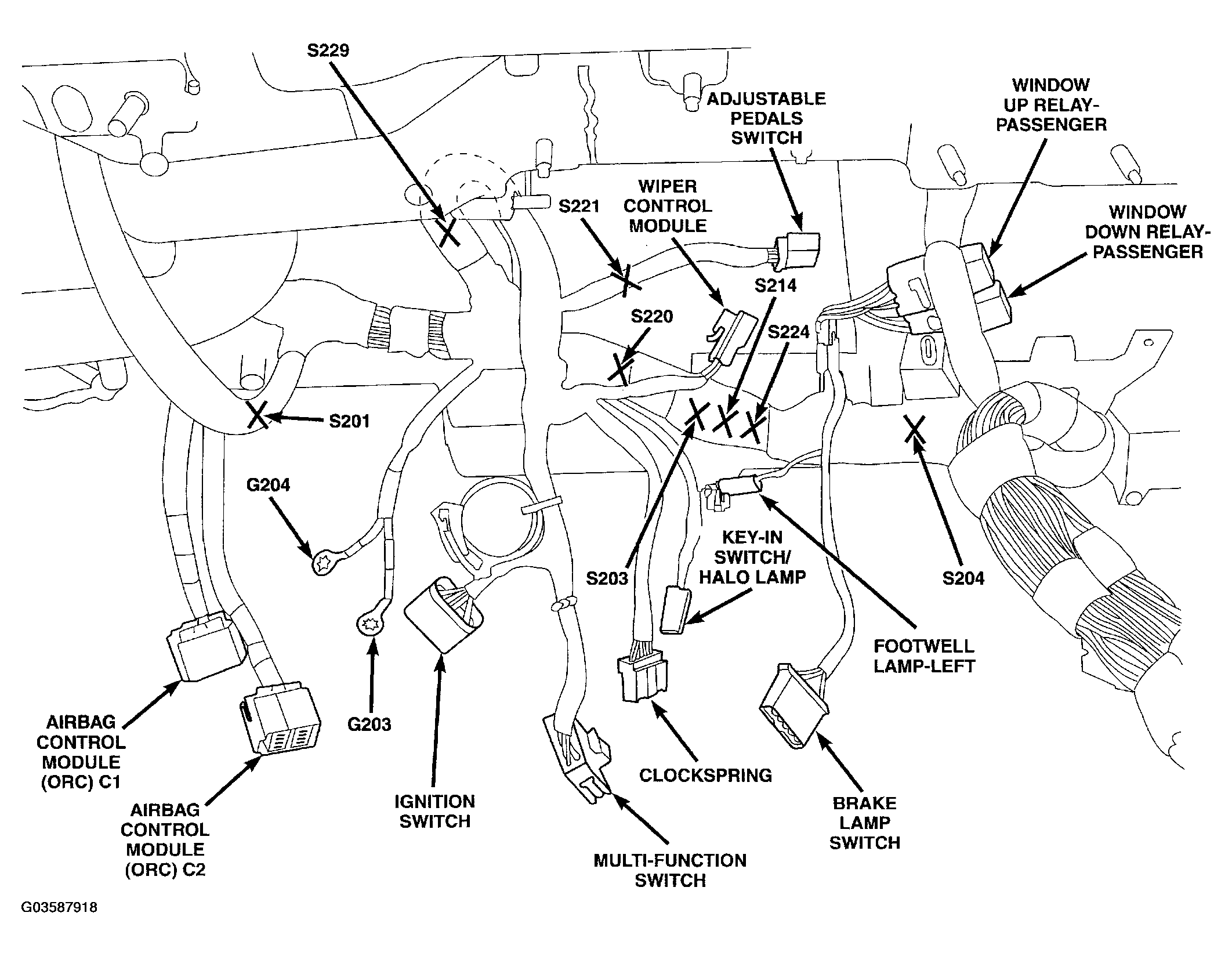

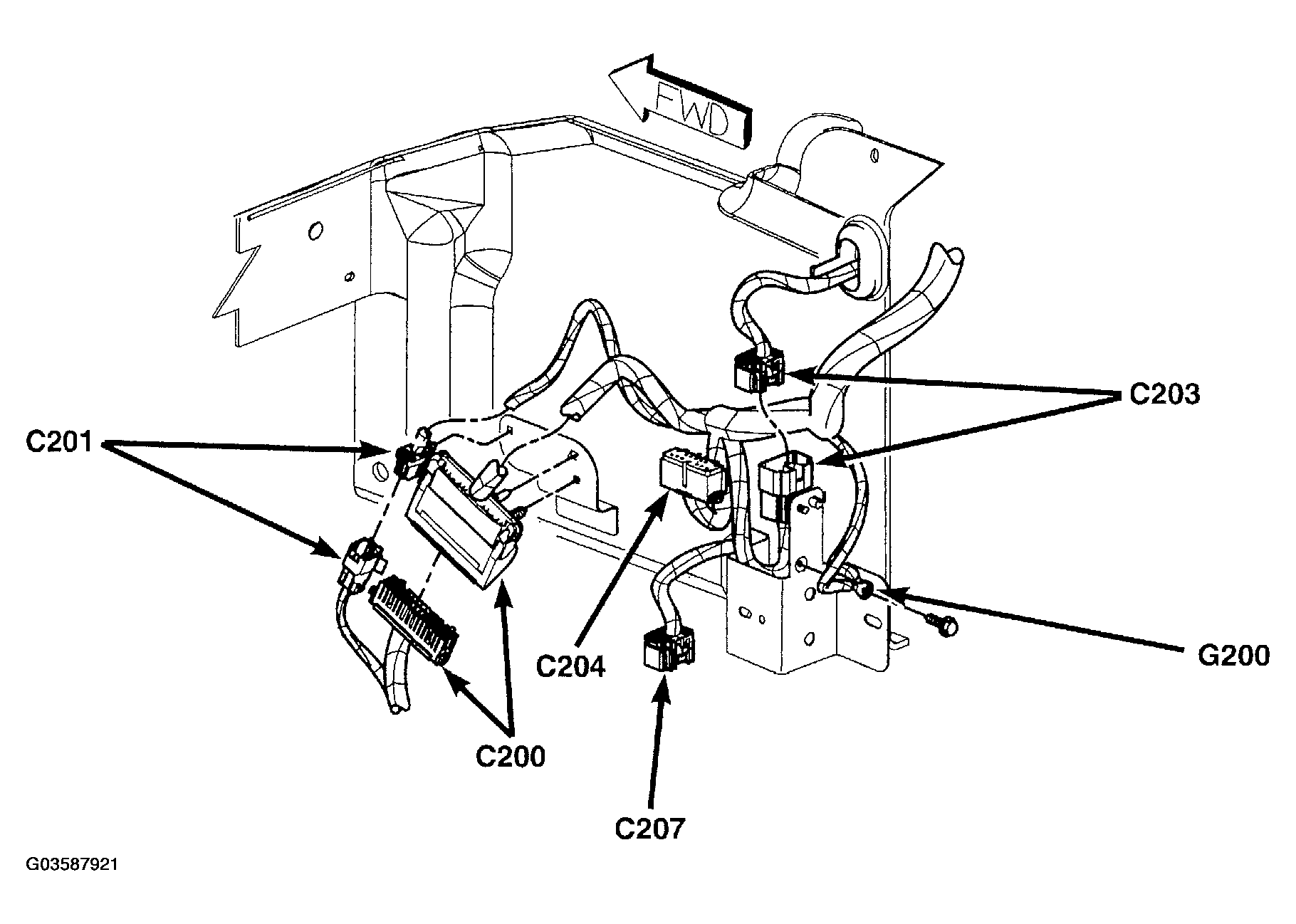

| S229 | Center Instrument Panel | Fig 17 , Fig 18 |
| S231 | Near T/O for Illuminated Rear View Mirror | N/S |

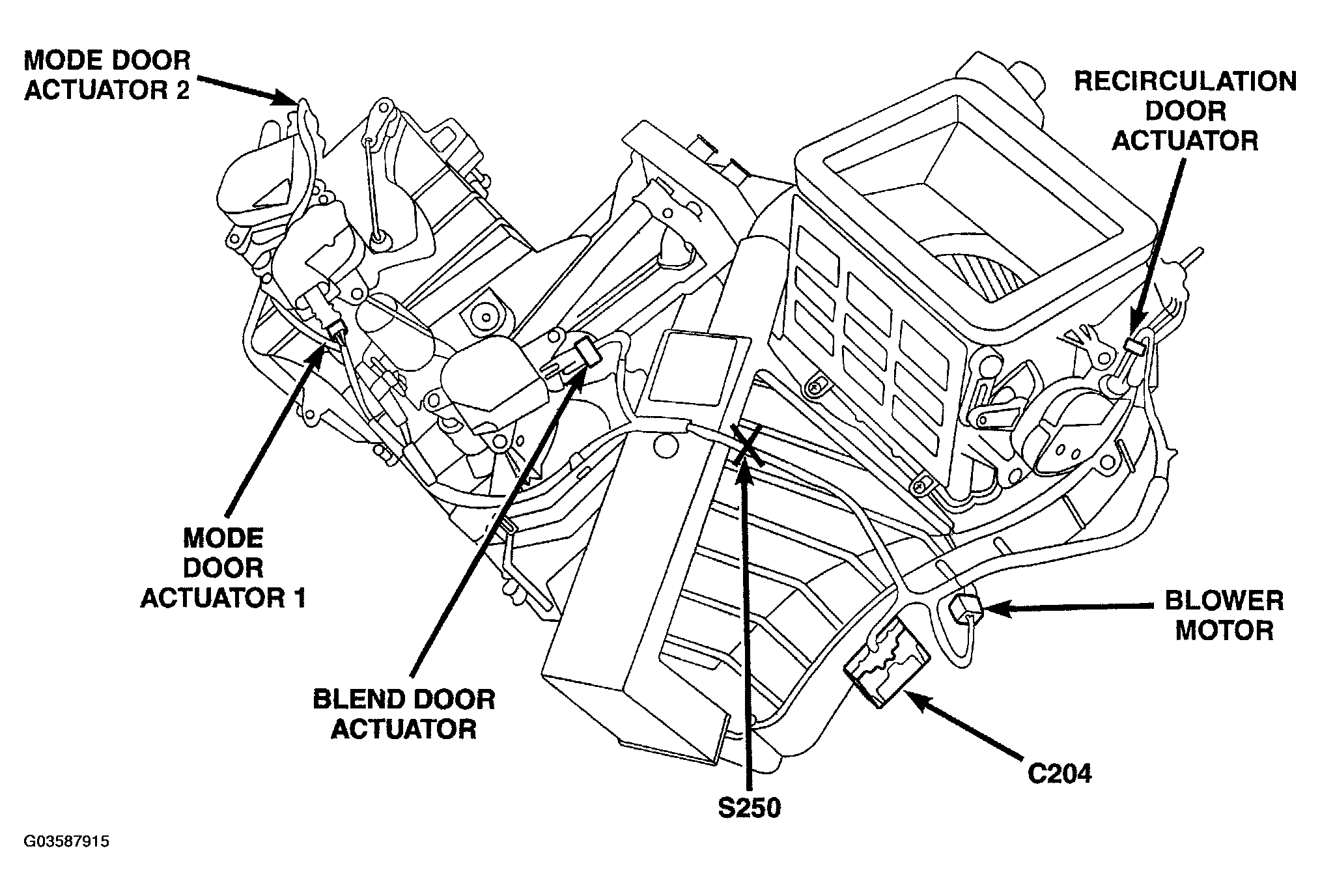

| S250 | Near T/O for Blend Door Actuator | Fig 15 |

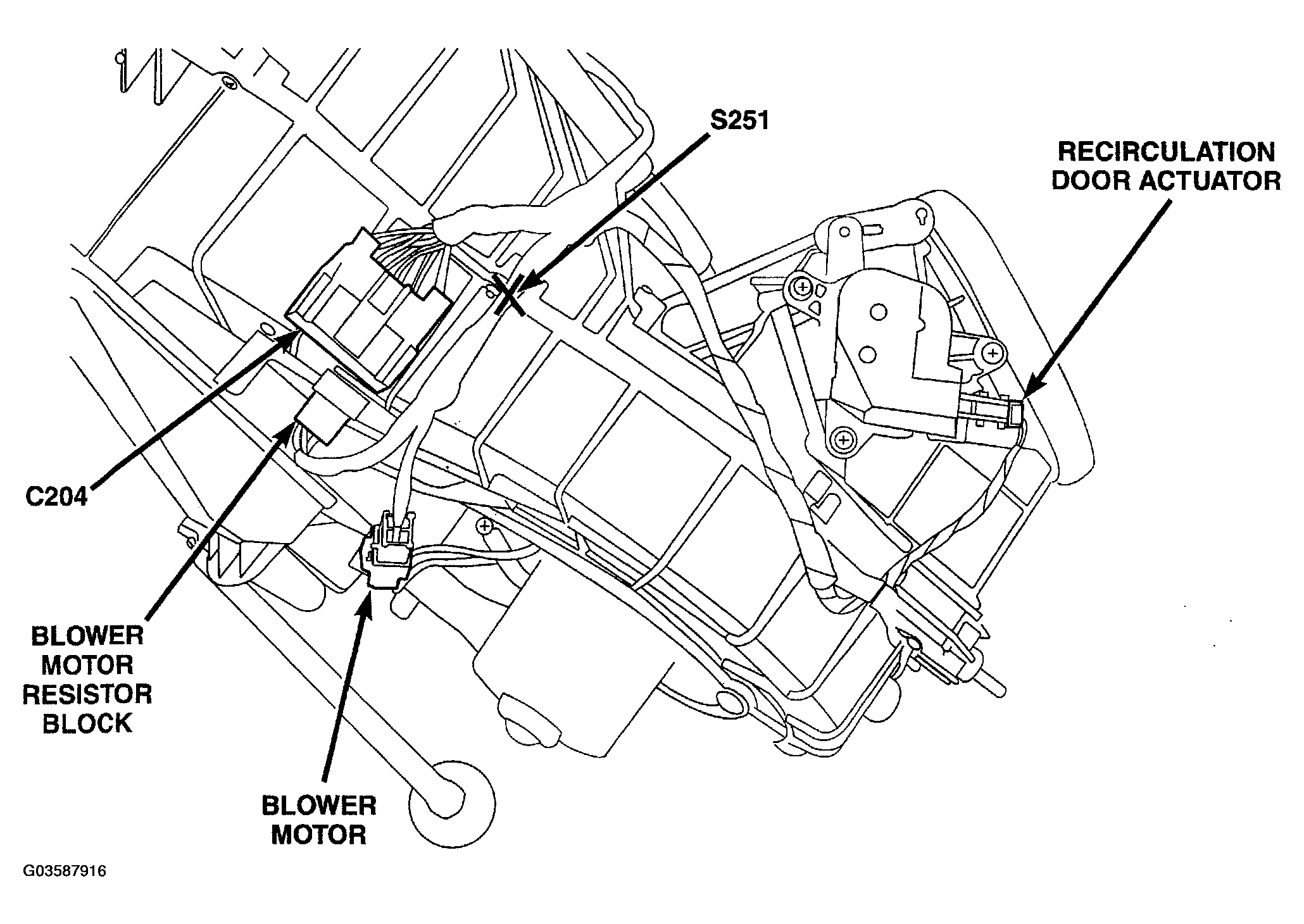

| S251 | Near T/O for Blower Motor | Fig 16 |

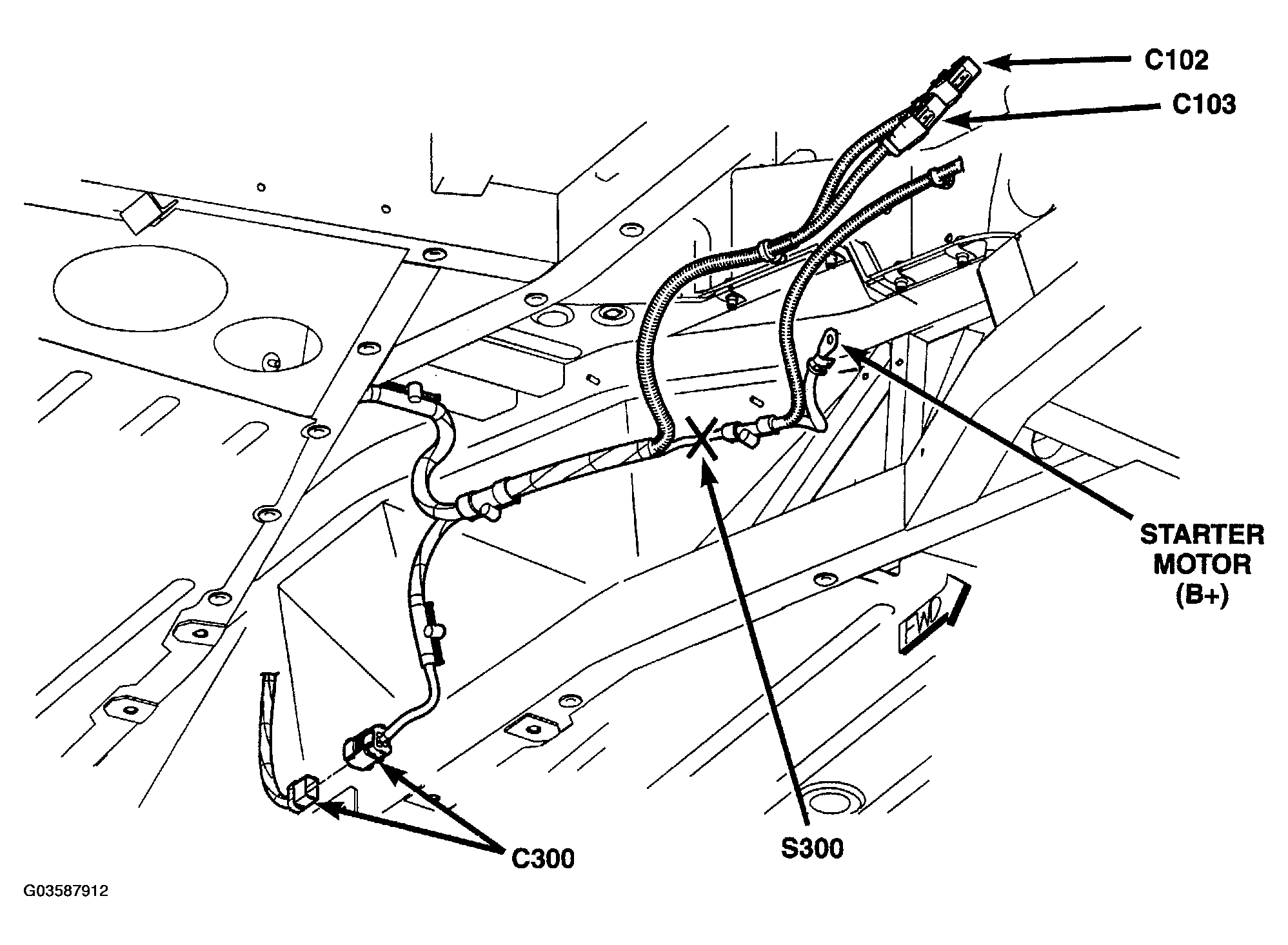

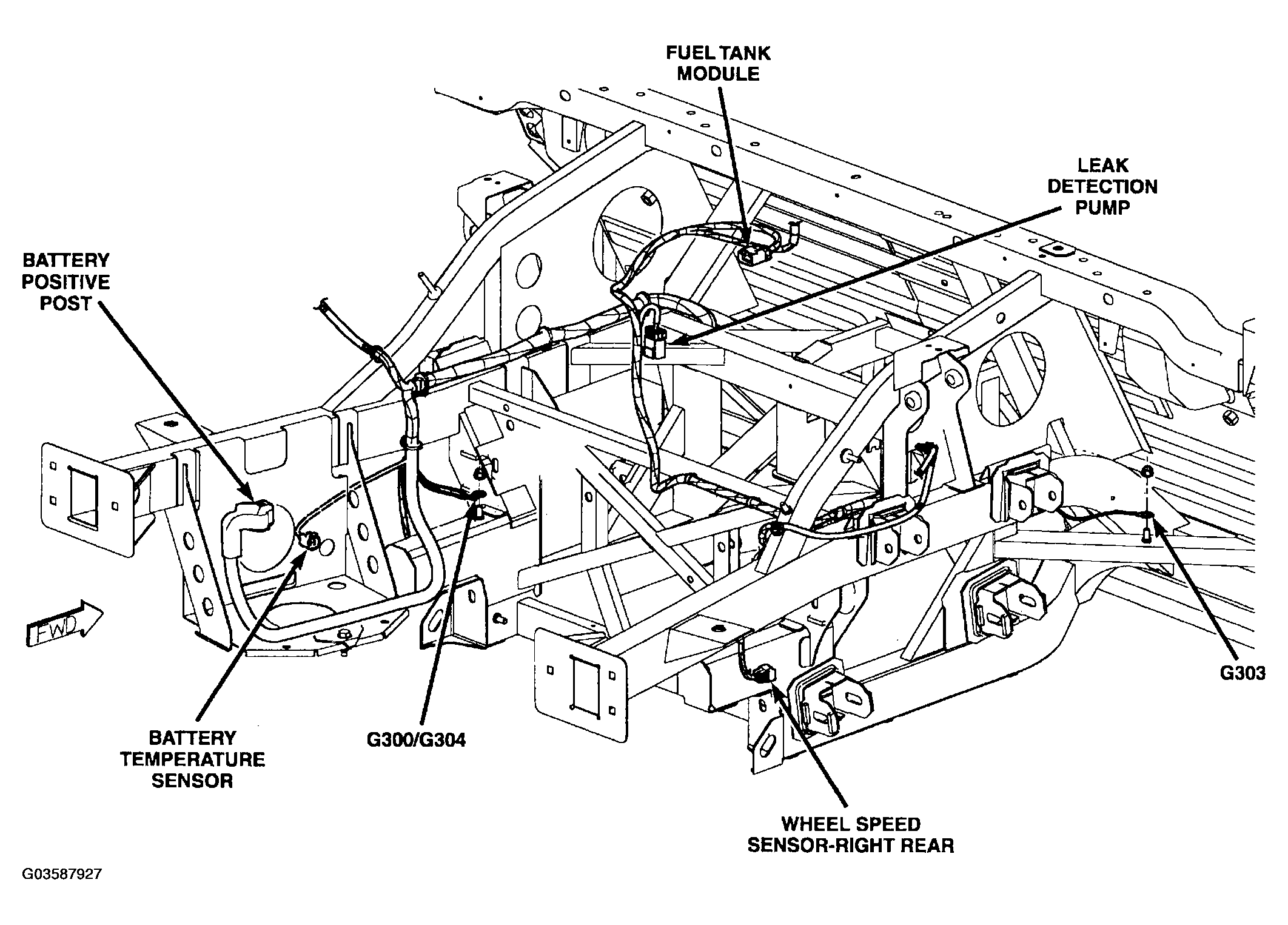

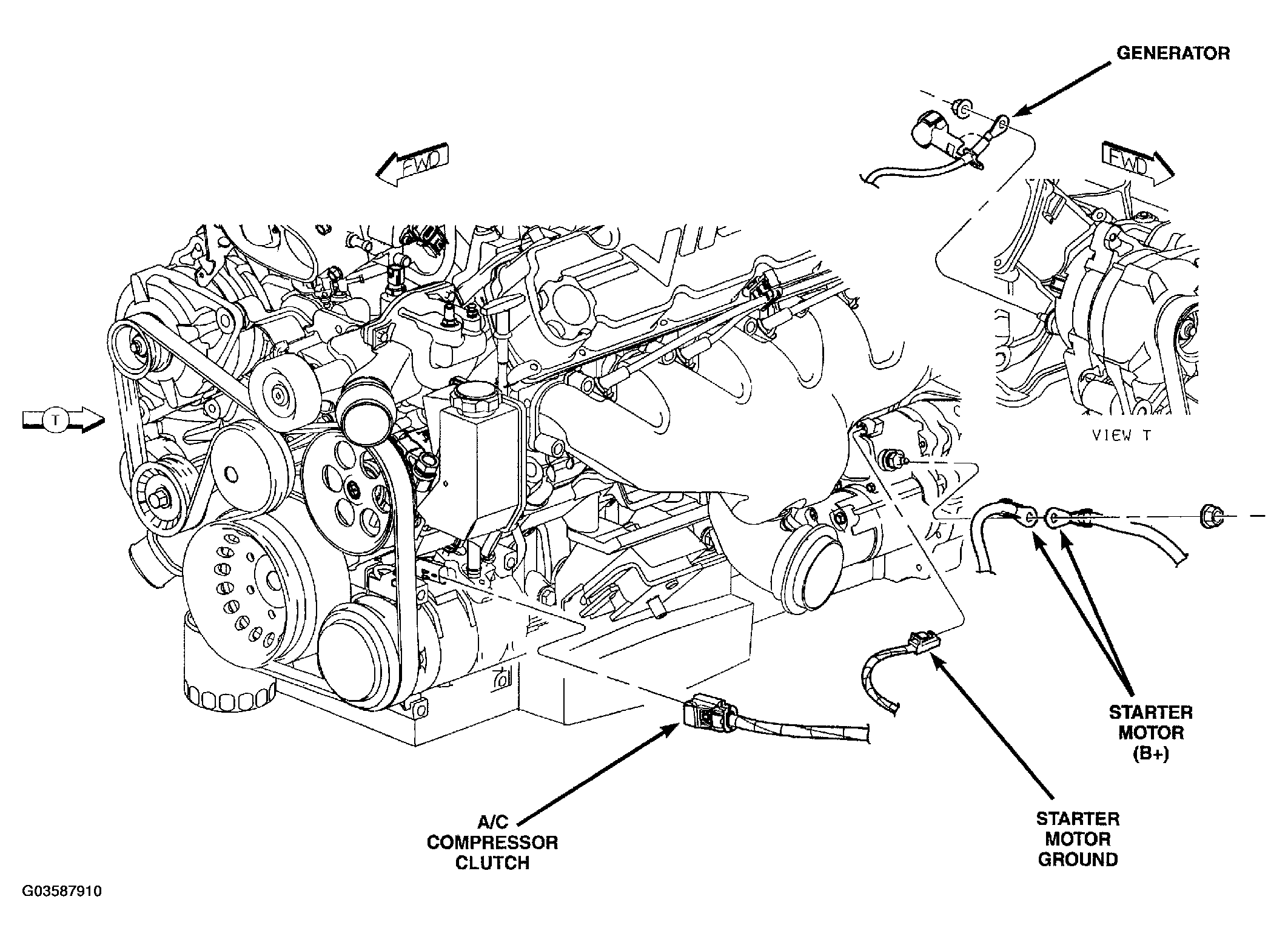

| S300 | Near T/O for Starter Motor B(+) | Fig 12 |
| S304 | Near T/O for Wheel Speed Sensor - Right Rear | N/S |

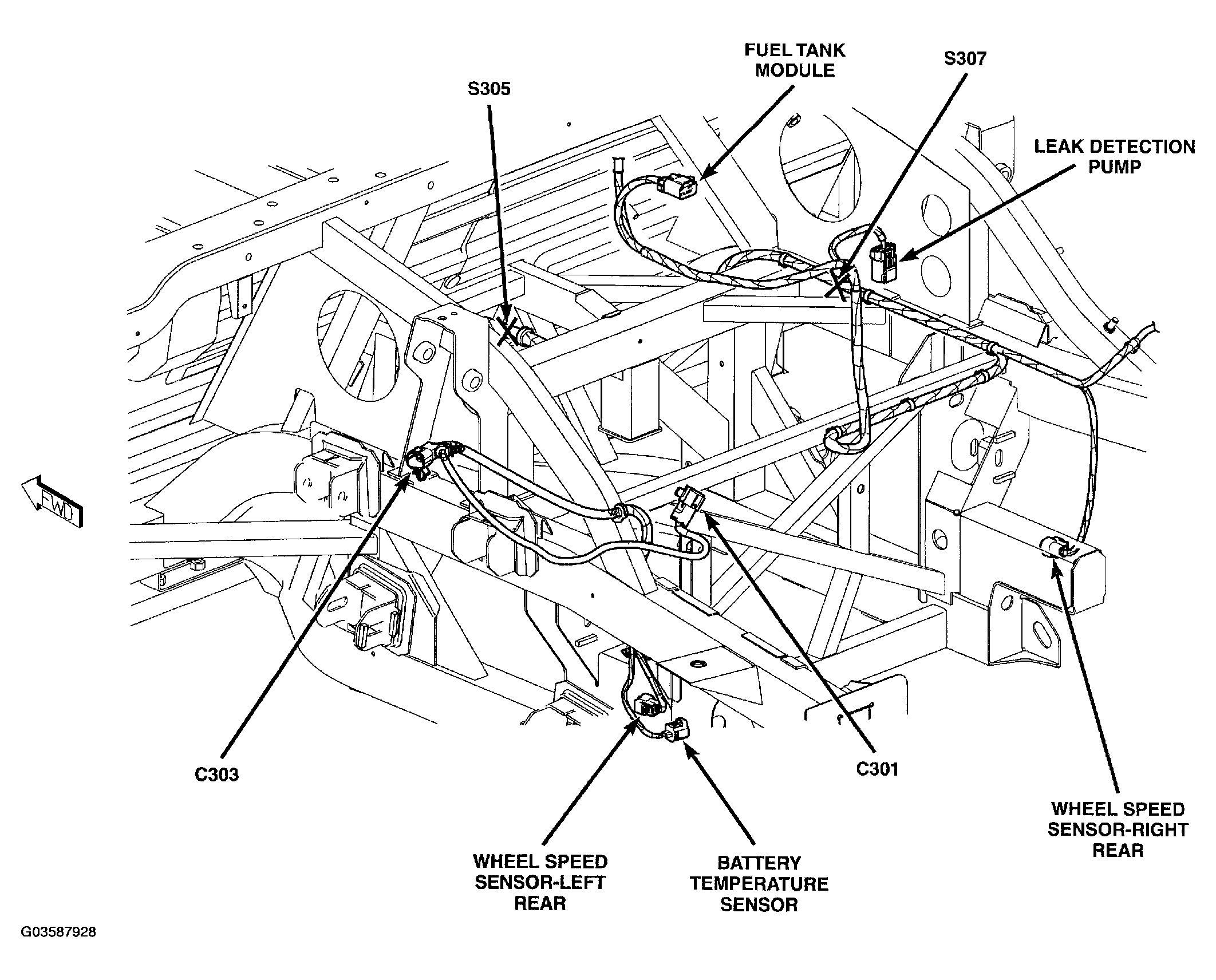

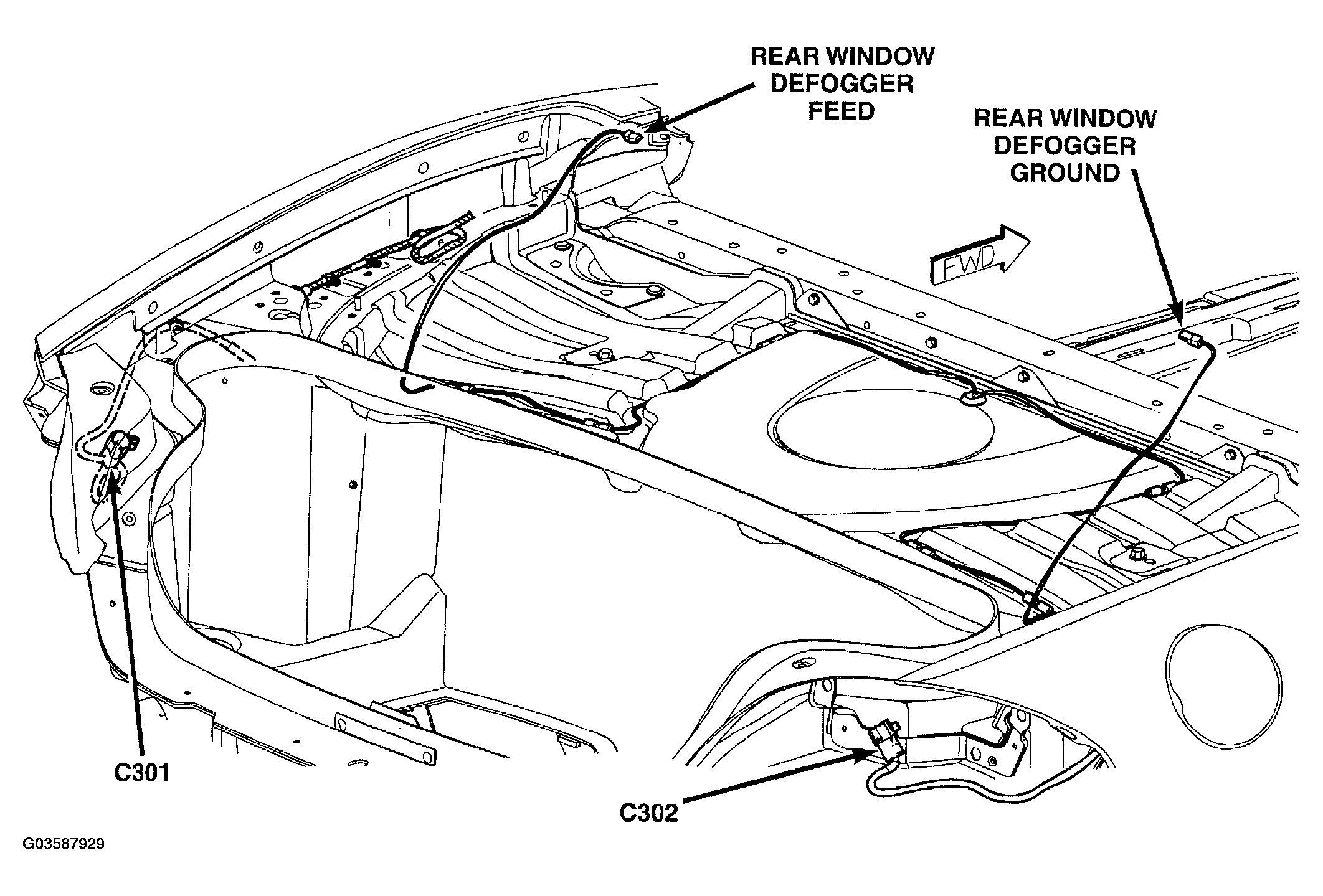

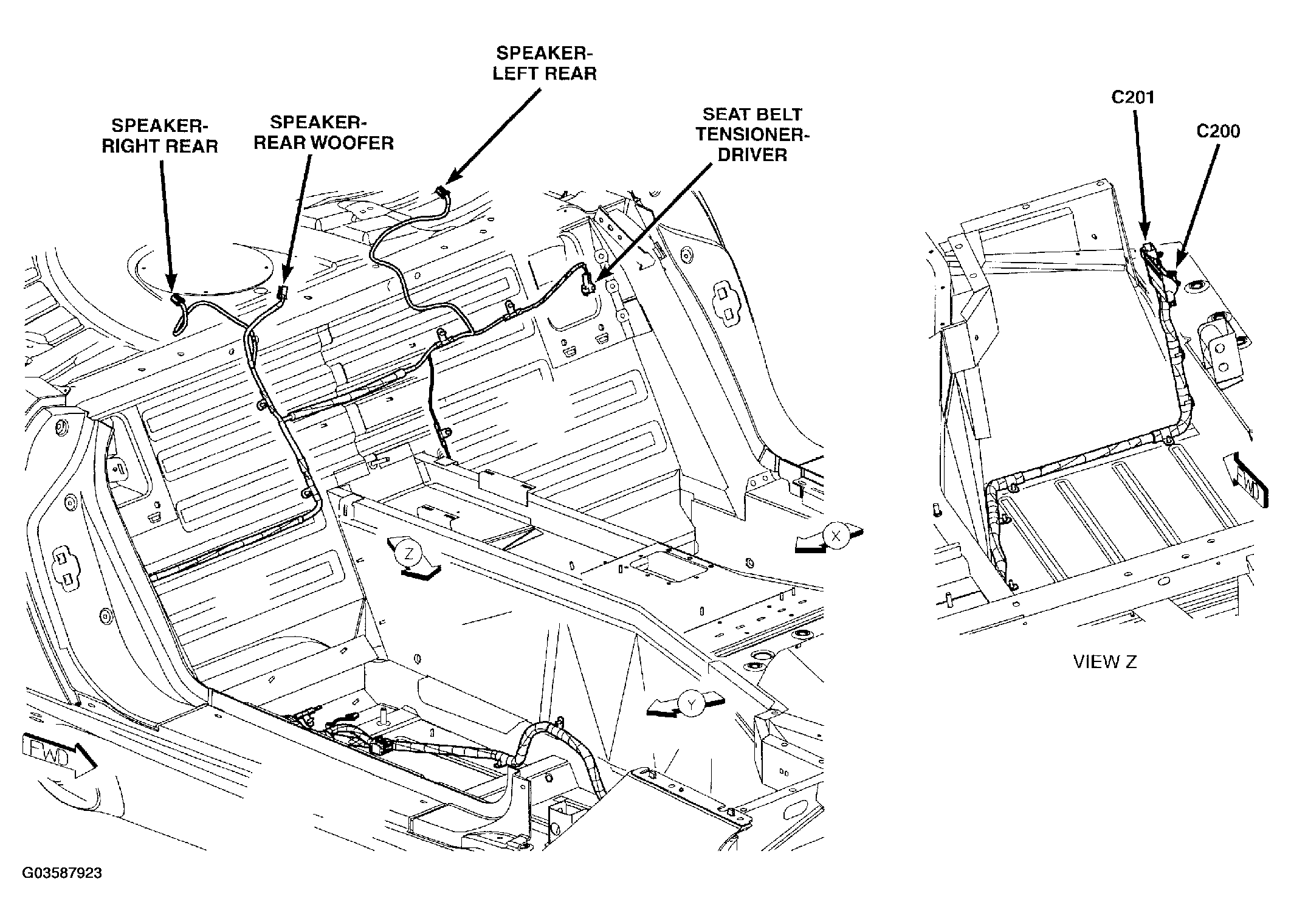

| S305 | Center Chassis Behind Seats | Fig 28 |
| S307 | Near T/O for C302 | Fig 28 |

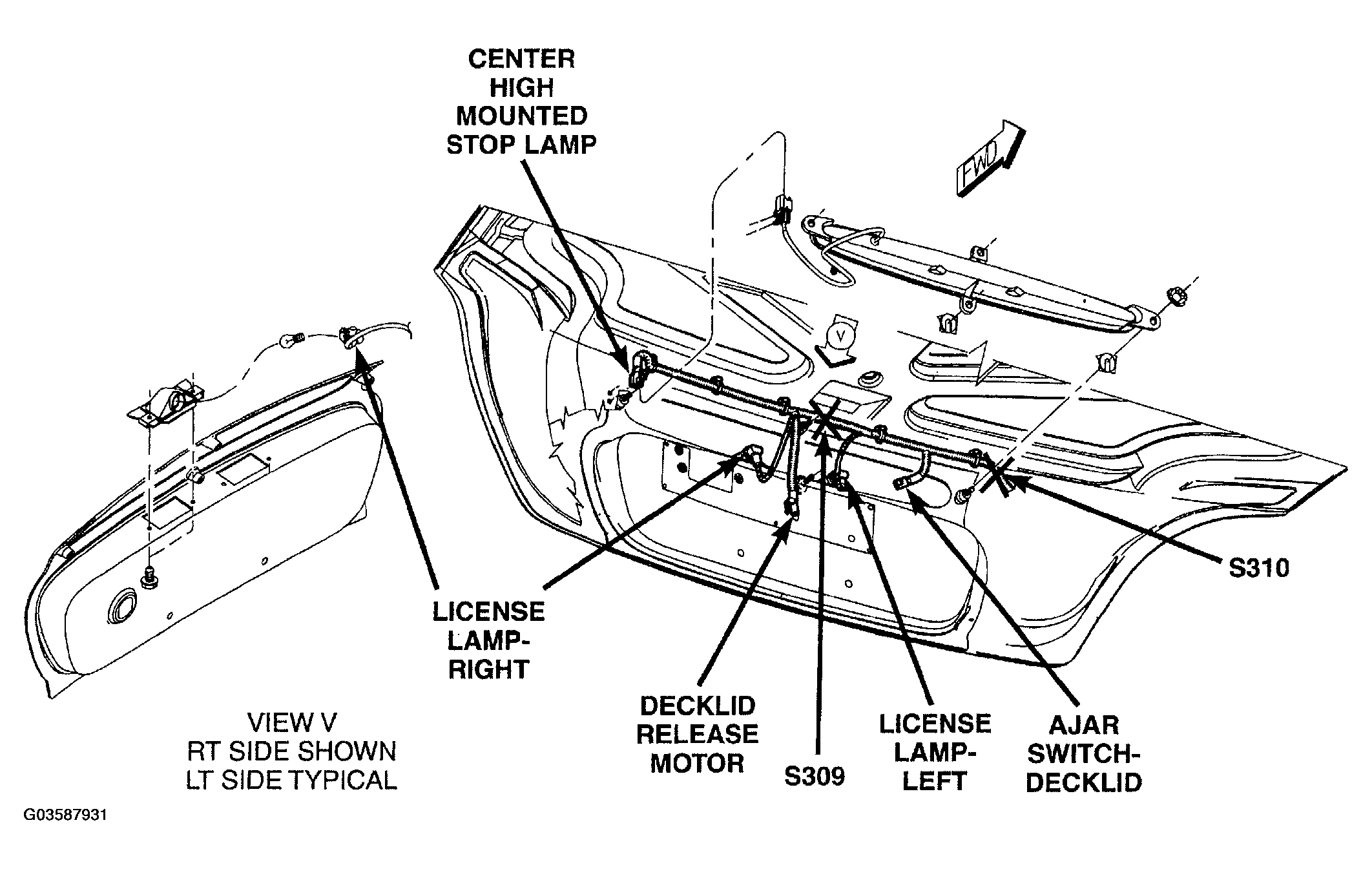

| S309 | Near T/O for License Lamp - Right | Fig 31 |
| S310 | Near T/O for Decklid Release Motor/Ajar Switch | Fig 31 |
| S311 | Near T/O for Tail Lamp - Left | Fig 30 |
| S312 | Near T/O for Back-Up Lamp - Left | Fig 30 |

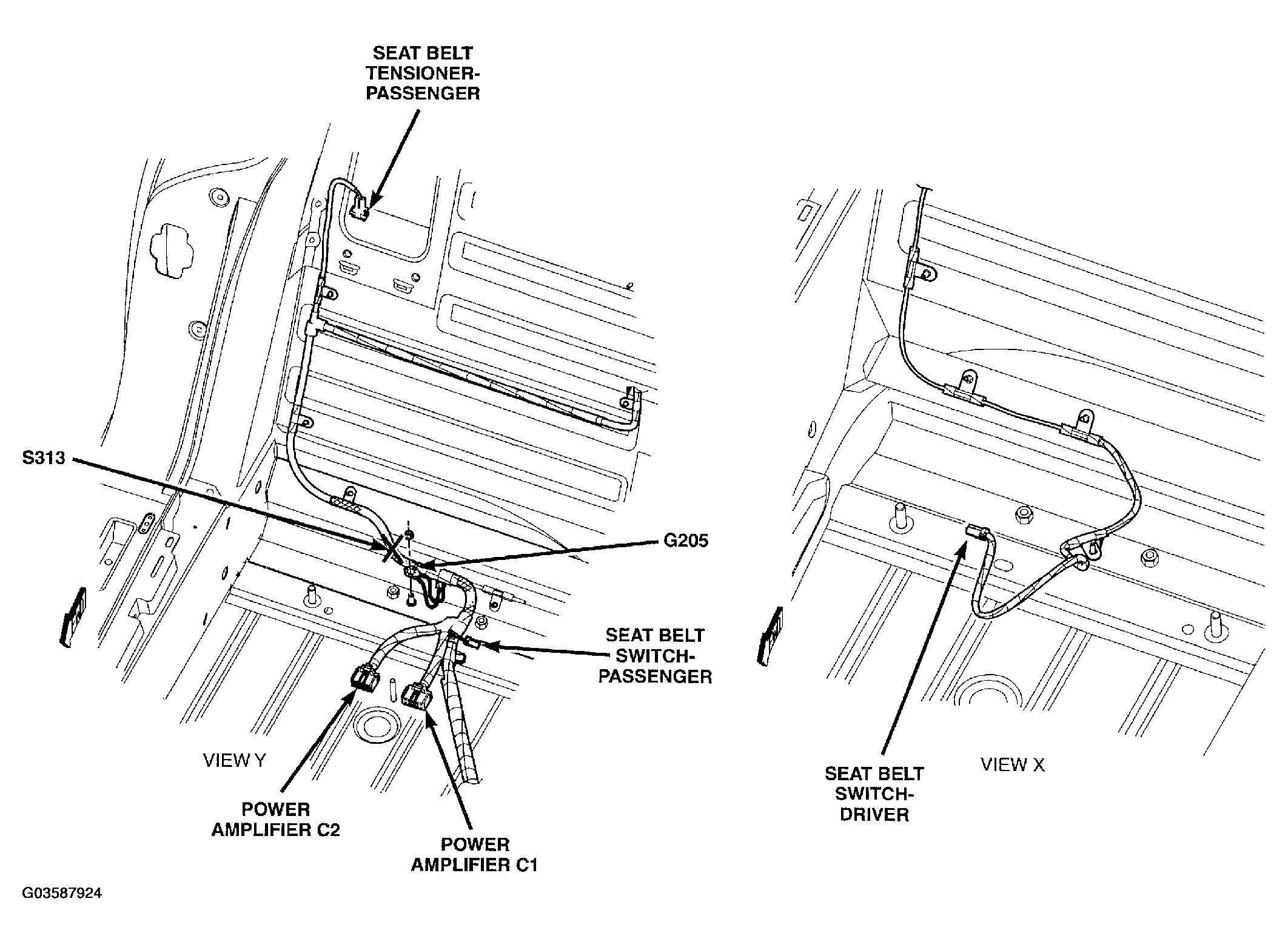

| S313 | Near T/O for G205 | Fig 24 |

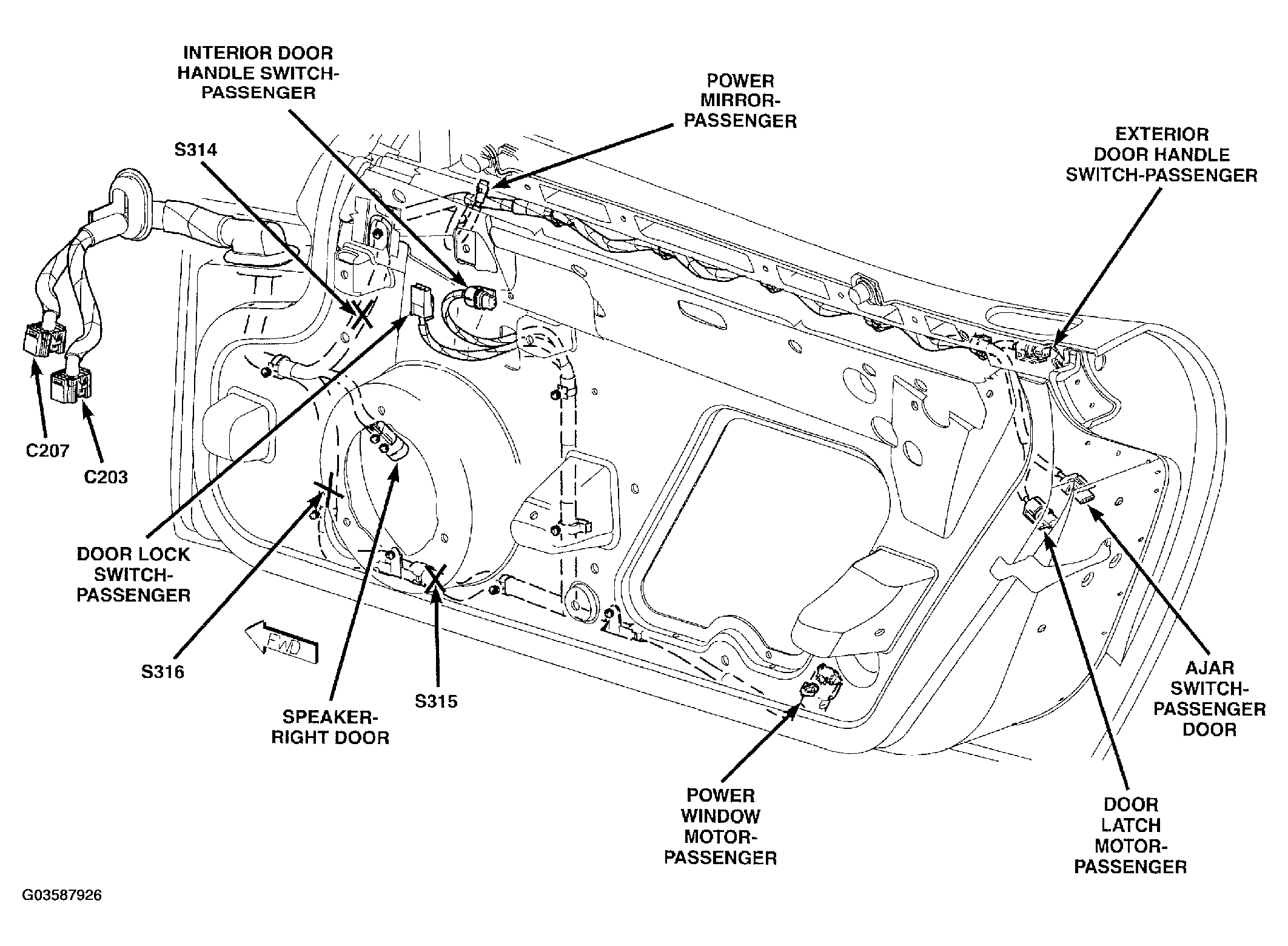

| S314 | Passenger Door | Fig 26 |
| S315 | Near T/O for Door Lock Switch - Passenger | Fig 26 |
| S316 | Near T/O for Speaker - Right Door | Fig 26 |
| S317 | Near T/O for Power Window Motor - Driver | Fig 25 |
| S318 | Near T/O for Power Window Motor - Driver | Fig 25 |

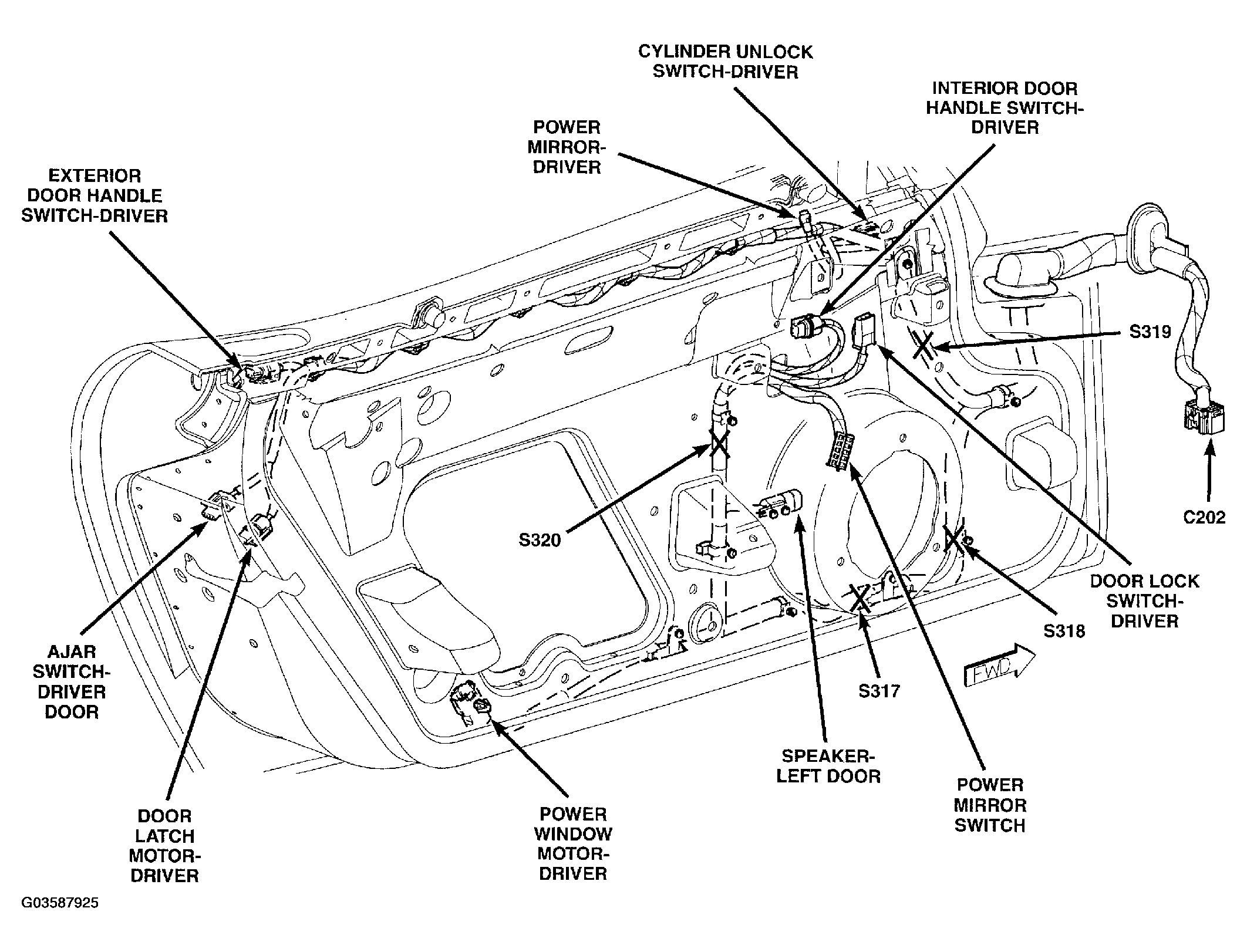

| S319 | Near T/O for Power Mirror Switch | Fig 25 |
| S320 | Near T/O for Power Mirror Switch | Fig 25 |

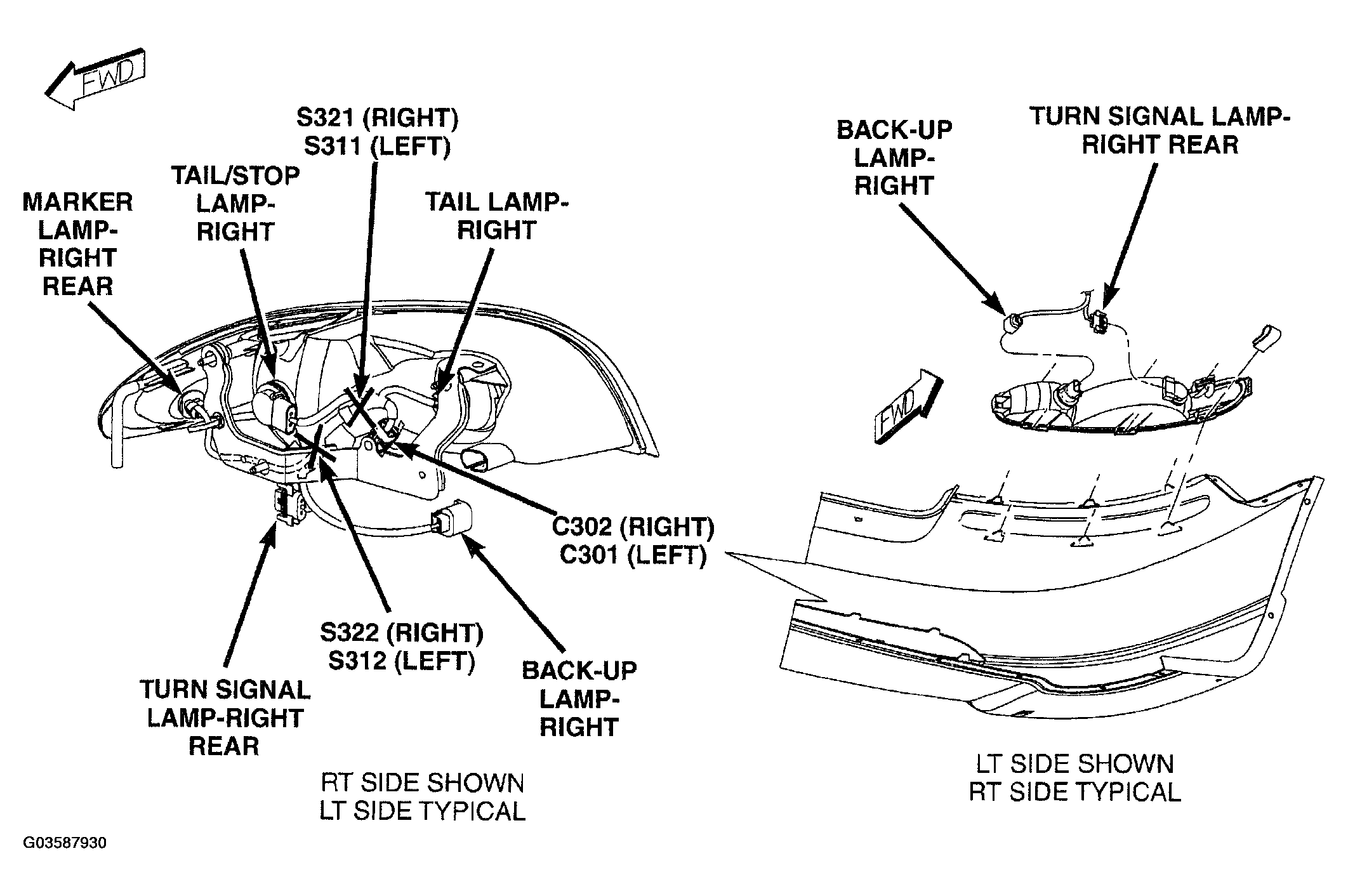

| S321 | Near T/O for Tail Lamp - Right | Fig 30 |
| S322 | Near T/O for Back-Up Lamp - Right | Fig 30 |
