Power Distribution: Relays

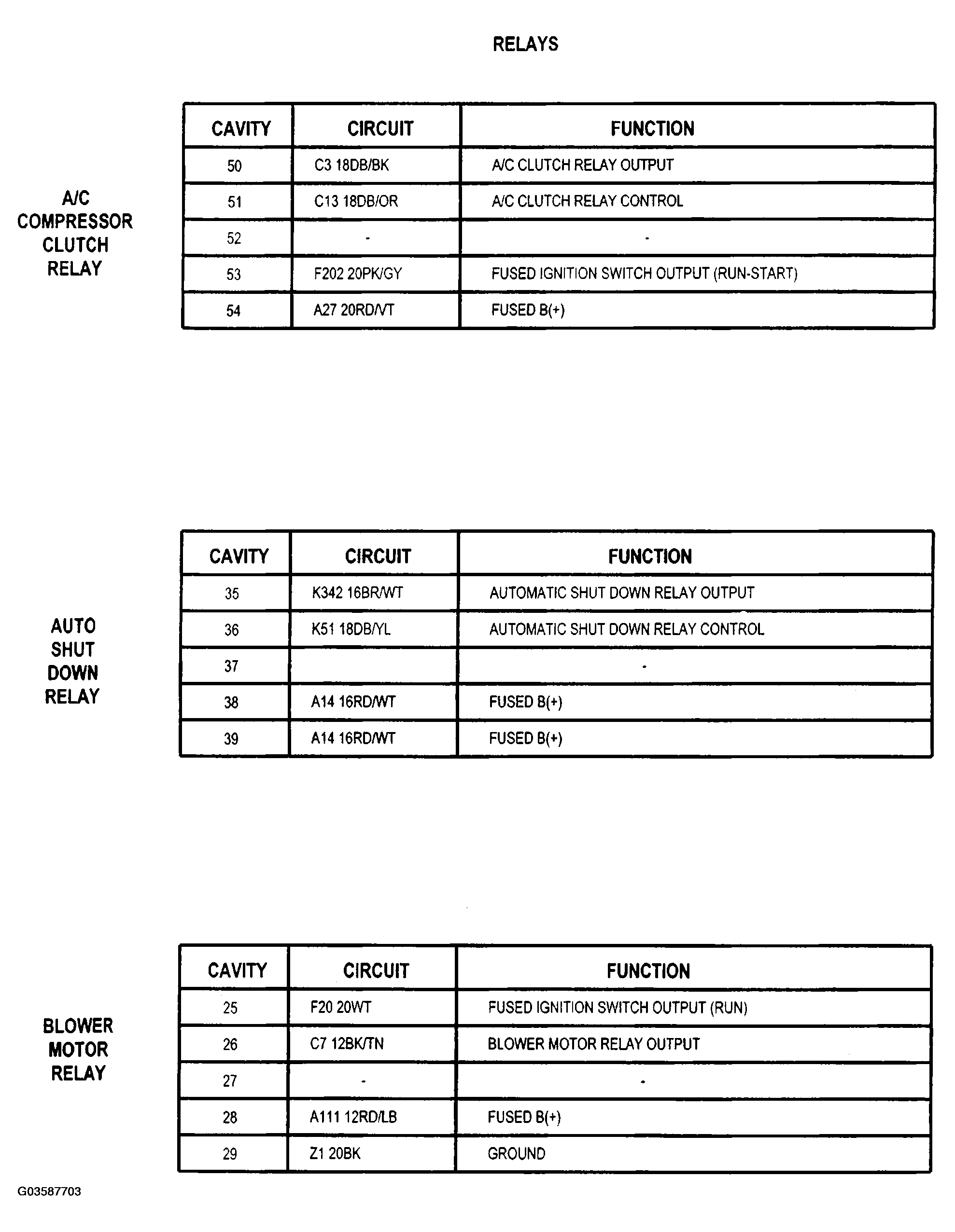

Fig 1: Identifying Relays (1 Of 3)
G03587703Courtesy of DAIMLERCHRYSLER CORP.

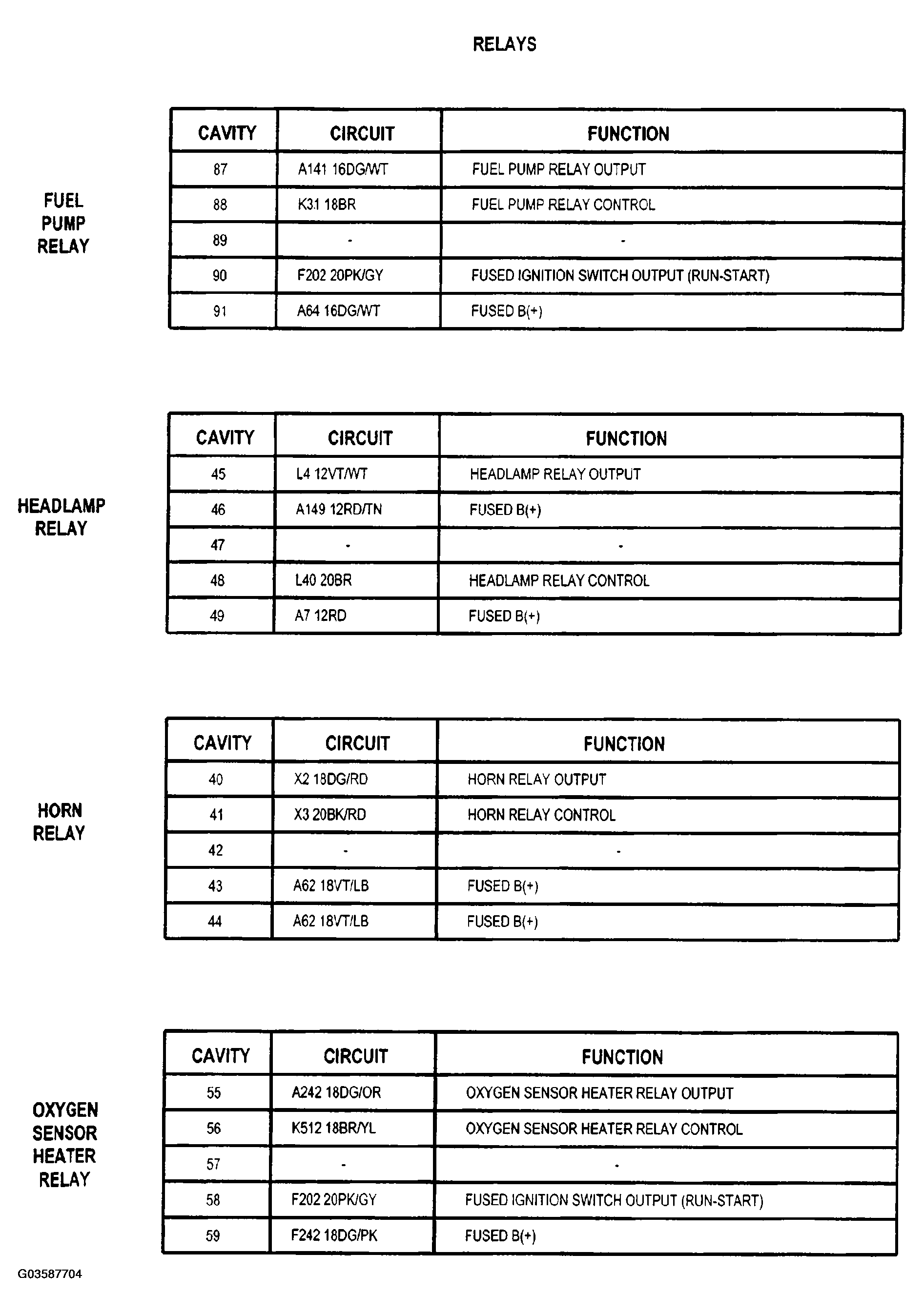

Fig 2: Identifying Relays (2 Of 3)
G03587704Courtesy of DAIMLERCHRYSLER CORP.

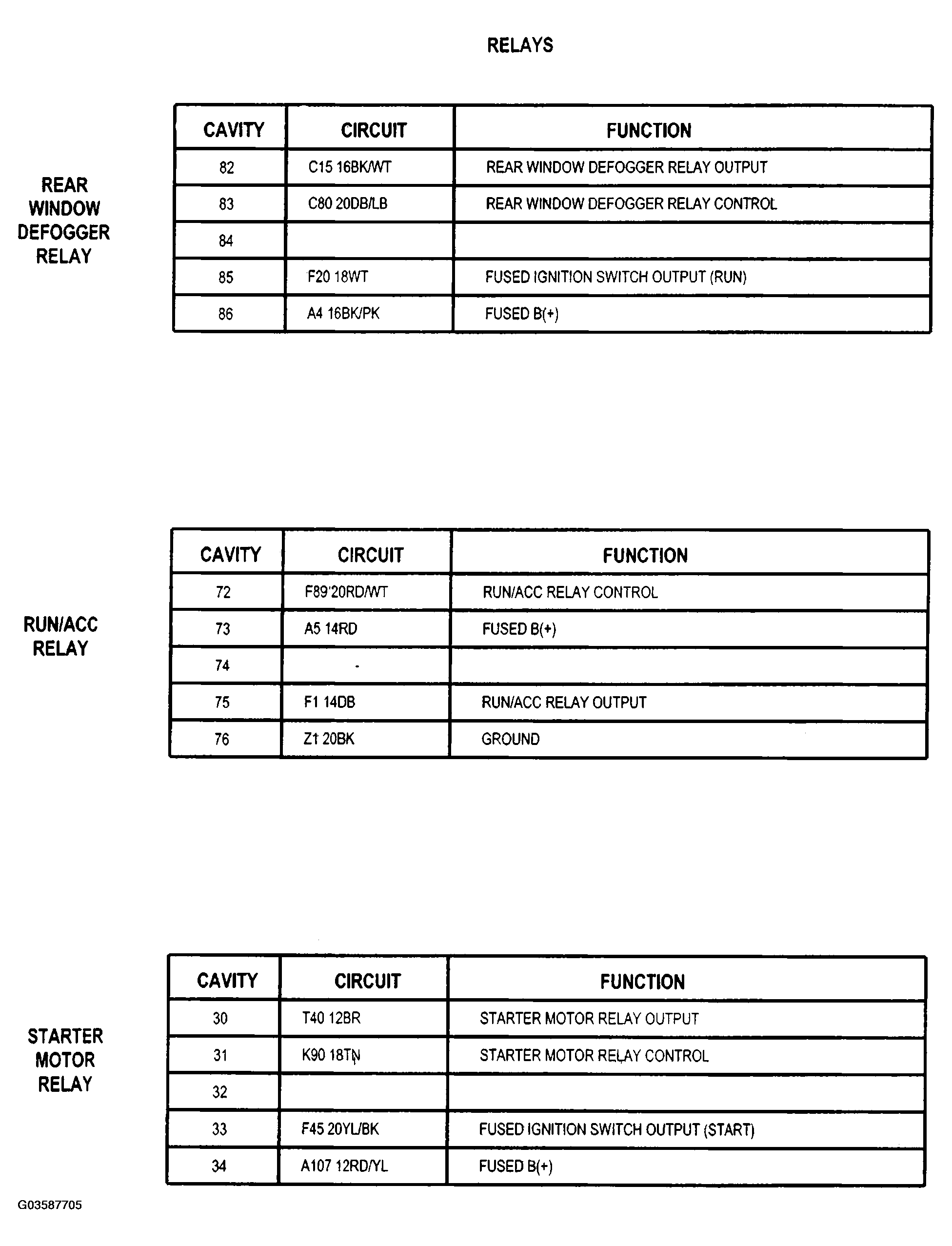

Fig 3: Identifying Relays (3 Of 3)
G03587705Courtesy of DAIMLERCHRYSLER CORP.
