Wiper Control Module - Gray 7 Way Connector End View

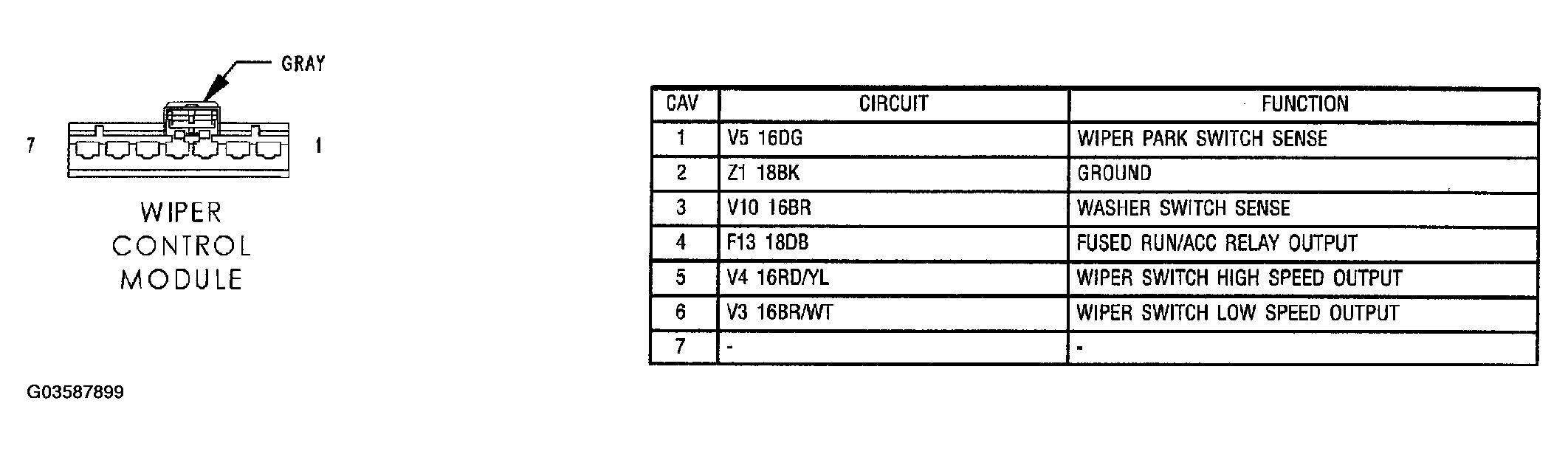

Fig 1: Wiper Control Module Connector End View
G03587899Courtesy of DAIMLERCHRYSLER CORP.
